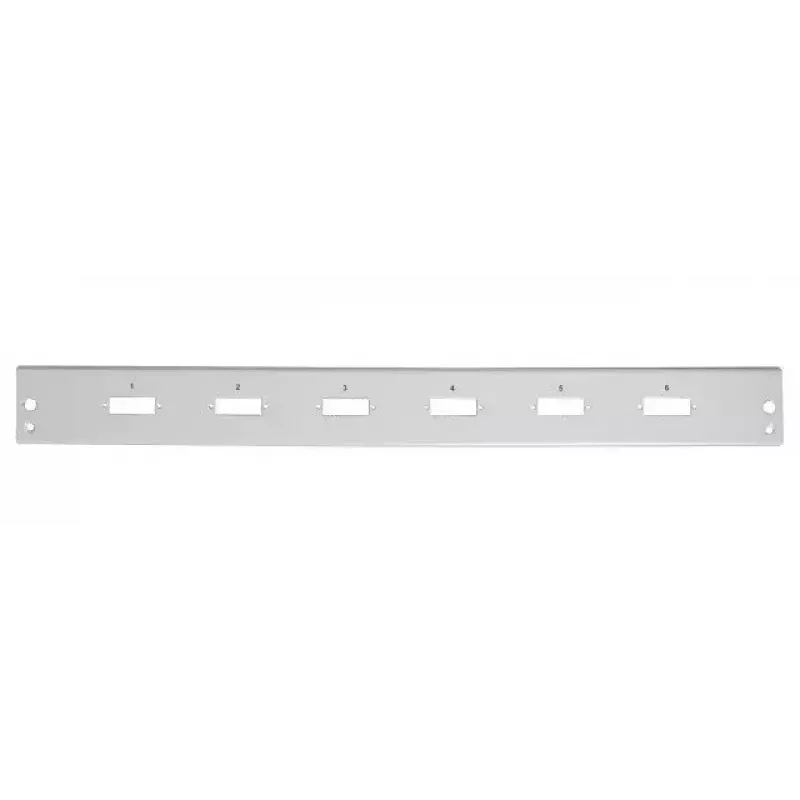

Patch panel accessory EFB Elektronik VSB-FP-6SC-D-H — 1U rack-mounted fiber panel, SC duplex ports

EFB Elektronik VSB-FP-6SC-D-H is a 1U front panel accessory designed for rack-mounted splice and breakout boxes. It provides SC Duplex and LC Quad breakouts on the front, with breakout ports horizontally shifted to facilitate orderly cable routing and access.

Advantages

The panel supports standard 1U rack mounting and is compatible with fibre cable installations requiring front-access breakouts. Horizontal shifting of breakouts reduces cable congestion and simplifies connection and maintenance. The accessory is compact and intended to integrate into existing splice or breakout box assemblies.

Suitable for

• Rack-mounted fibre splice boxes
• Front-access breakout installations
• SC Duplex and LC Quad port deployments
• Telecommunications and data centre fibre management

Key specifications

• Brand: EFB Elektronik
• Model / MPN: VSB-FP-6SC-D-H
• EAN: 4049759228477
• Mounting: Rack mounting, 1U
• Cable type: Fiber
• Front panel with SC Duplex and LC Quad breakouts

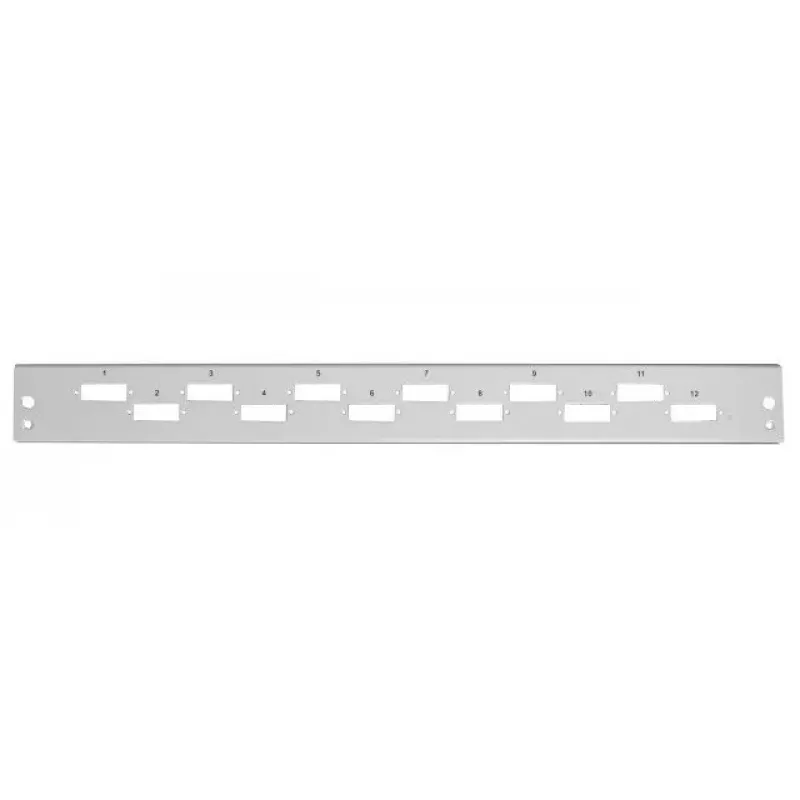

• Breakouts horizontally shifted for improved routing

How to use

Install the VSB-FP-6SC-D-H into a 1U rack position in a compatible splice or breakout box assembly. Route fibre cables to the panel's SC Duplex or LC Quad breakout ports and secure connections according to usual fibre handling and termination procedures. Use appropriate strain relief and protection when routing cables through the rack to prevent stress on terminations.

Recommendations

Handle fibres with care during installation, use correct cleaning and inspection procedures for connectors, and ensure the panel is mounted in a dust-controlled environment to maintain signal integrity.
