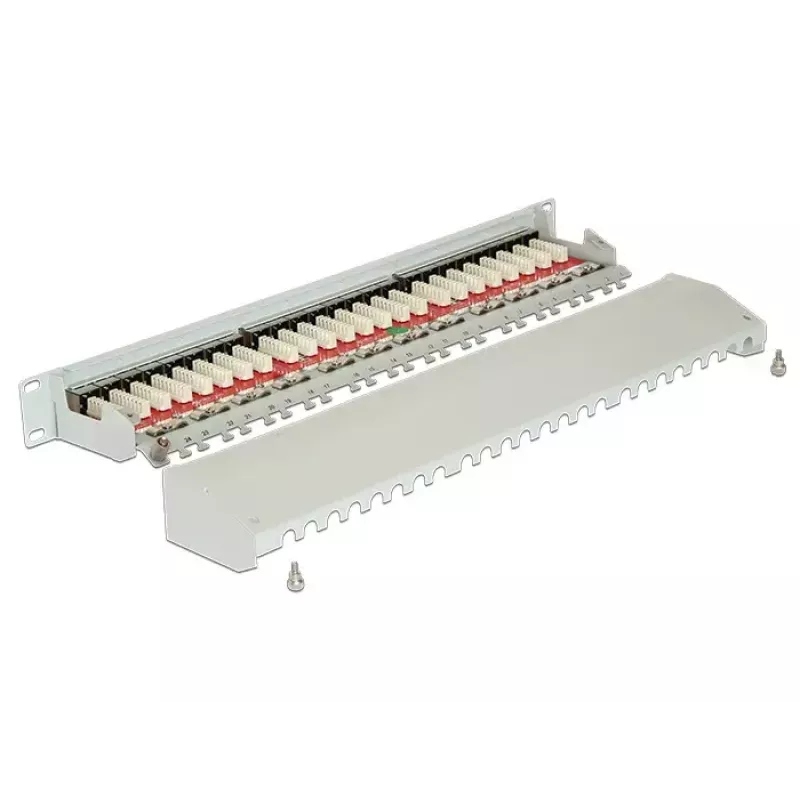

Patch panel 1U DeLOCK 43319

The DeLOCK 43319 patch panel is a 1U rack-mounted panel for organizing up to 24 network connections. Designed for Cat6a cabling, it provides 24 RJ-45 ports and is manufactured from metal for durability. With dimensions of 483 mm (W) x 44 mm (H) x 109 mm (D) and a grey finish, it is suitable for installation in a standard 19" rack in server rooms and data centers.

Advantages

The metal construction ensures mechanical stability and long service life while the 1U form factor saves rack space. The panel supports Cat6a terminations and includes LSA-style punch-down blocks for neat, tool-based cable termination of up to 24 cables. Standard 19" mounting and a compact depth facilitate integration into existing rack systems.

Suitable for

• Rack-mounted network closets and server rooms
• Cat6a structured cabling installations
• Data centers and telecommunications cabinets
• Patch management and cable consolidation

Key specifications

• Model: DeLOCK 43319
• Form factor: 1U, 19" rack mount
• Ports: 24 RJ-45
• Cabling standard: Cat6a
• Material: Metal
• Colour: Grey
• Dimensions (W×H×D): 483 × 44 × 109 mm

How to use

Mount the patch panel in a standard 19" rack using appropriate screws. Terminate each network cable onto the LSA punch-down blocks using a punch-down tool according to Cat6a wiring standards. After termination, connect patch cords to the front RJ-45 ports to link devices or switches. Ensure proper cable management and strain relief to maintain performance and ease of maintenance.

Recommendations

For reliable performance, use Cat6a-rated cables and follow ANSI/TIA wiring schemes. Label both panel ports and corresponding cable ends for easier identification and future changes. Maintain bend radius and avoid excessive cable tension when routing to the panel.
