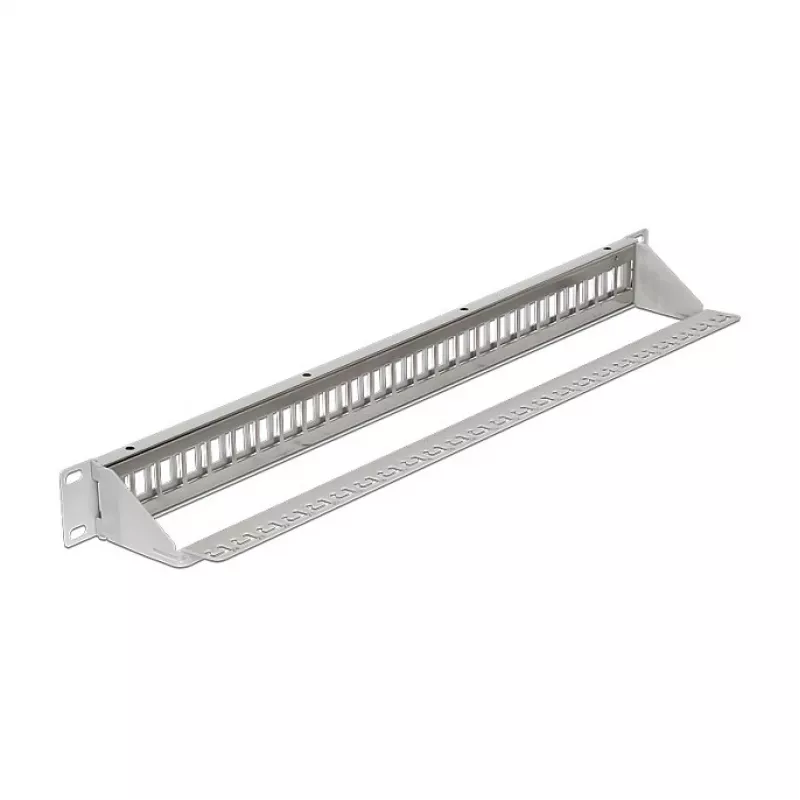

Patch Panel 1U DeLOCK 43302

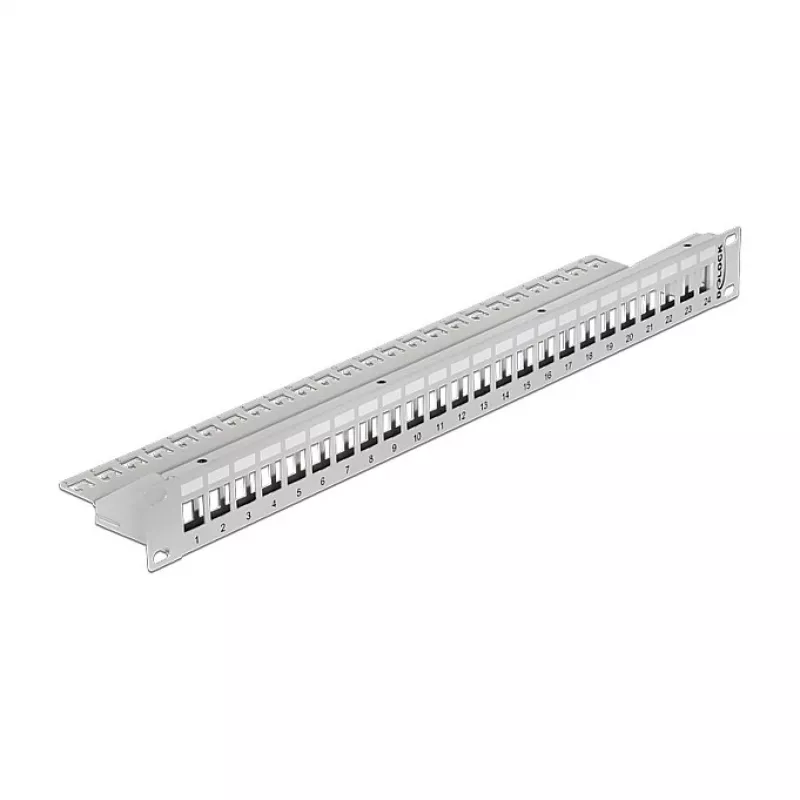

The DeLOCK 43302 Patch Panel is a 1U rack-mount panel designed to house up to 24 Keystone modules for structured cable management in 19" server racks. With standardized dimensions and a grey finish, it provides an organized front for network terminations and easy access to connections.

Advantages

The patch panel accepts 24 Keystone modules for flexible port configuration and simple snap-in installation. Its 1U format and standardized 19" mounting make it compatible with common rack systems, while the grey colour and compact depth help keep rack layouts tidy.

Suitable for

• Organising Ethernet and network terminations in 19" racks
• Installing Keystone jacks for patching and labelling
• Server rooms, data closets and wiring cabinets

Key specifications

• Mounting: 19" rack, 1U
• Keystone capacity: 24 ports
• Colour: Grey
• Dimensions (W×H×D): 482 × 44 × 92 mm

How to use

Install the panel into a 19" rack at the desired 1U position using standard rack screws. Snap Keystone modules into the front openings until they lock. Terminate network cables to the installed Keystone jacks following the jack manufacturer’s wiring scheme, then route and secure cables to avoid strain on connections.

Recommendations

For reliable performance, use compatible Keystone modules and follow proper cable management practices; label ports after installation to simplify maintenance and reduce downtime.
