Patch Cable Equip Cat.6 S/FTP RJ-45 20m Black

Patch Cable Equip Cat.6 S/FTP RJ-45 20m Black
Patch Cable Equip Cat.6 S/FTP RJ-45 20m Black
-14%
Black Week
Patch Cable Equip Cat.6 S/FTP RJ-45 20m Black
Patch Cable Equip Cat.6 S/FTP RJ-45 20m Black
R741
R858−14%
PDF
PDF
Stock 6 Code 91217 Model 605599 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, December 16
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Ask a question – the AI assistant answers instantly.

Description

The equip® Cat.6 S/FTP Patch Cord is a 20 meter black network cable designed for gigabit Ethernet environments. Constructed from quality materials and tested to industry standards, this Cat.6 S/FTP cable offers improved bandwidth and a better signal-to-noise margin, reducing interference and supporting reliable high-speed data transfer up to 1000 Mbit/s. Gold-plated RJ-45 connectors provide durable and stable connections for wired networks.

Advantages

S/FTP shielding minimizes electromagnetic interference and crosstalk, which helps maintain signal integrity over longer runs. The cable’s Cat.6 specification ensures higher bandwidth compared with lower categories, enabling error-free performance in demanding network setups. Gold-plated RJ-45 connectors improve contact reliability and corrosion resistance.

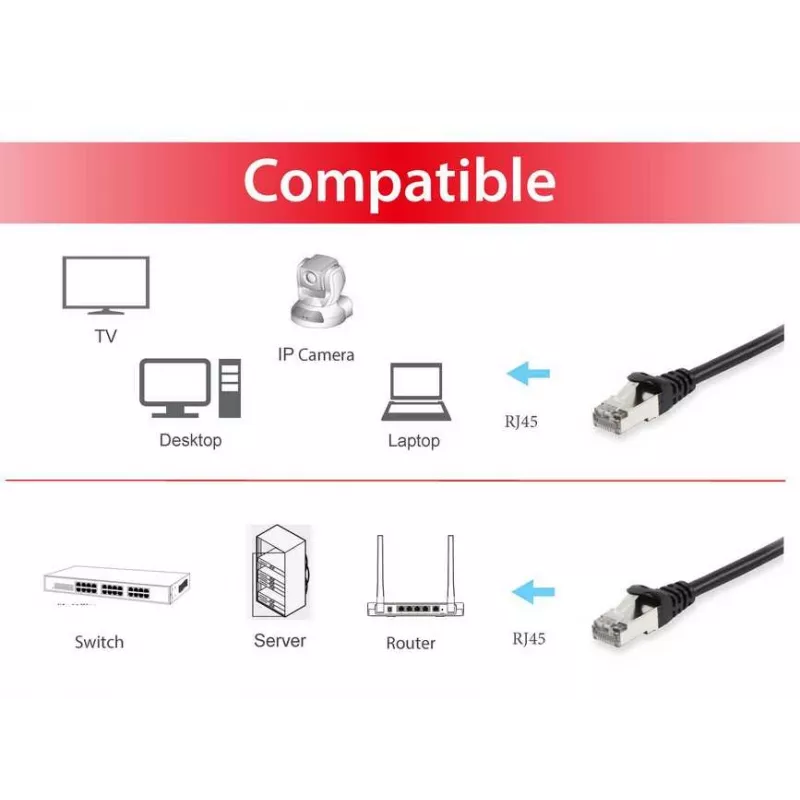

Suitable for

  • Gigabit Ethernet (10/100/1000Base-T(X)) connections
  • Server rooms and data racks requiring shielded patching
  • Home or office high-speed wired internet setups
  • Network segments where reduced interference is needed

Key specifications

  • Length: 20 m
  • Cable type: Cat.6 S/FTP
  • Connectors: RJ-45 to RJ-45, gold-plated
  • Supported speeds: up to 1000 Mbit/s (Gigabit Ethernet)
  • Cabling technology: 10/100/1000Base-T(X)
  • Colour: Black
  • Weight: 0.745 kg

How to use

Connect one RJ-45 end of the patch cord to the network device (switch, router or network interface) and the other end to a patch panel, wall socket or another network device. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and keep it separated from strong power sources to preserve shielding effectiveness and maintain optimal performance.

Recommendations

For best results, use this S/FTP Cat.6 patch cord in shielded or properly grounded installations to take full advantage of the cable’s shielding. Avoid excessive bending or pulling, and replace the cable if connectors show visible wear or damage.
Key Highlights
  • 4 x 2 AWG 28/7
  • 250MHz performance Bandwidth
  • Suitable for PoE, PoE+
  • Stranded bare copper conductor
  • Foil and braid shield Reduces EMI/RFI interference
  • PIMF (Pairs in metal Foil)
  • Molded boot with Strain relief
  • RoHS compliant
  • Low Smoke Zero Halogen (LSZH/LSOH)
  • Compliant with ISO/IEC 11801 and EN 50173
  • 20 m
  • RJ-45 Straight Male
  • RJ-45 Straight Male
  • Cat6 S/FTP (S-STP)
  • Fast Ethernet, Gigabit Ethernet 1000 Mbit/s
  • Power over Ethernet (PoE) Plug and Play
  • Black

Specifications

Specifications
AWG wire size
28/7
Cable length
20 m
Cable shape
Round
Cable shielding
S/FTP (S-STP)
Cable standard
Cat6
Cabling technology
10/100/1000Base-T(X)
Certification
ISO/IEC 11801, EN50288, TIA/EIA 568-C.2
Compliance certificates
CE, REACH, RoHS, UKCA
Conductor material
Copper
Conductor type
Stranded
Connector 1
RJ-45
Connector 1 form factor
Straight
Connector 1 gender
Male
Connector 2
RJ-45
Connector 2 form factor
Straight
Connector 2 gender
Male
Connector contacts plating
Gold
Country of origin
China
Data transfer rate
1000 Mbit/s
Depth
11.7 mm
Doesn't contain
Halogen
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Frequency
250 MHz
Harmonized System (HS) code
84733080
Height
20000 mm
Jacket material
Low smoke zero halogen (LSZH)
Master (outer) case gross weight
15.9 kg
Master (outer) case height
380 mm
Master (outer) case length
350 mm
Master (outer) case width
290 mm
Molded cable boot
Yes
Networking standards
IEEE 802.3, IEEE 802.5
Outer diameter
5.8 mm
Package depth
50 mm
Package height
290 mm
Package weight
350 g
Package width
250 mm
Plug and Play
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Product colour
Black
Products per master (outer) case
22 pc(s)
Quantity per pack
1 pc(s)
Sustainability compliance
Yes
Weight
745 g
Width
8.34 mm

Document

Open Document

Leaflet

Open Leaflet
