Outlet Box Accessory Kindermann 7448000030

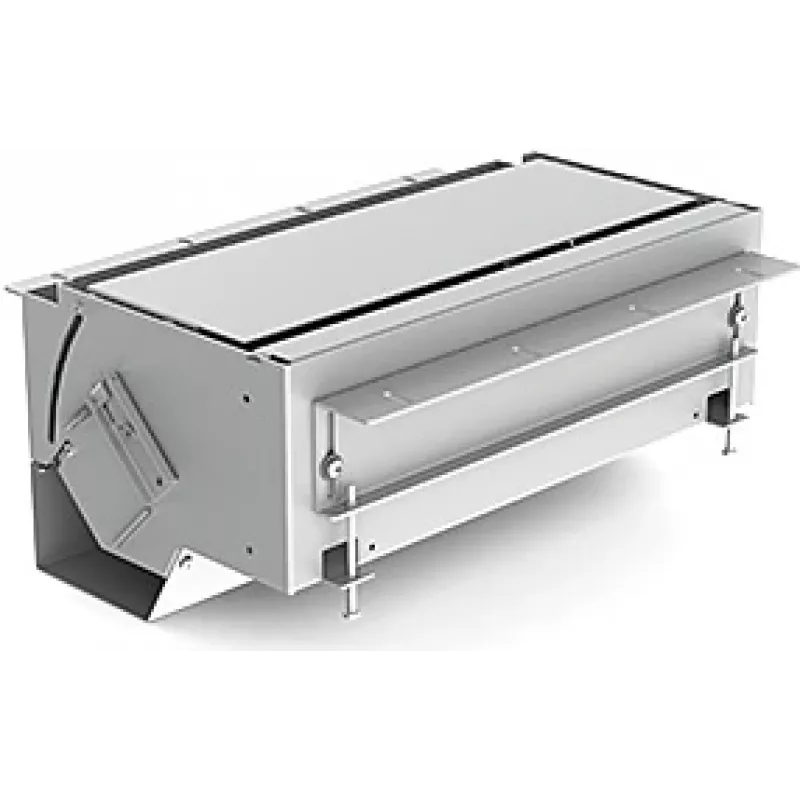

The Kindermann CablePort flex for 4 Adapter Plates (model 7448000030) is an aluminium desktop outlet box accessory designed for frameless installation in worktops or individual surfaces. The unit features an anodized aluminium lid, a movable cable flap that allows cable exit with the lid closed, a labeling field and a spacious internal compartment suitable for cables and external power supplies. It is intended for desks 15–40 mm thick and requires a rectangular cutout of 244 x 193 mm; the installation depth is approx. 160 mm. The individual surface for mounting is not included and should be provided and fitted by qualified personnel.

Advantages

The aluminium construction with an anodized lid provides a durable, low-maintenance finish. A movable flap enables cable routing while the cover is closed, and the large internal volume accommodates multiple cables and computer power supplies. Inner parts are powder-coated in RAL 9006 silver for consistent appearance and corrosion resistance. The product is supplied as a single unit and fits standard adapter plates for modular connectivity.

Suitable for

Key specifications

How to use

Prepare a compatible worktop or individual surface and make a rectangular cutout measuring 244 x 193 mm. Ensure the surface thickness is between 15 and 40 mm and that the installation depth of approximately 160 mm is available beneath the desk. Place the CablePort flex into the cutout so the frame sits flush for a frameless appearance. Connect the required mains, communication and AV modules into the adapter plates (choose matching module panel series 7448 000 1xx) and route cables through the movable flap. Secure and label modules as needed. Final fitting of the individual surface should be carried out by qualified personnel.

Recommendations

The individual mounting surface and any electrical or low-voltage connections should be provided and installed by qualified personnel in accordance with local regulations. Choose compatible adapter modules from the 7448 000 1xx series for desired connection types and verify available depth before installation.
