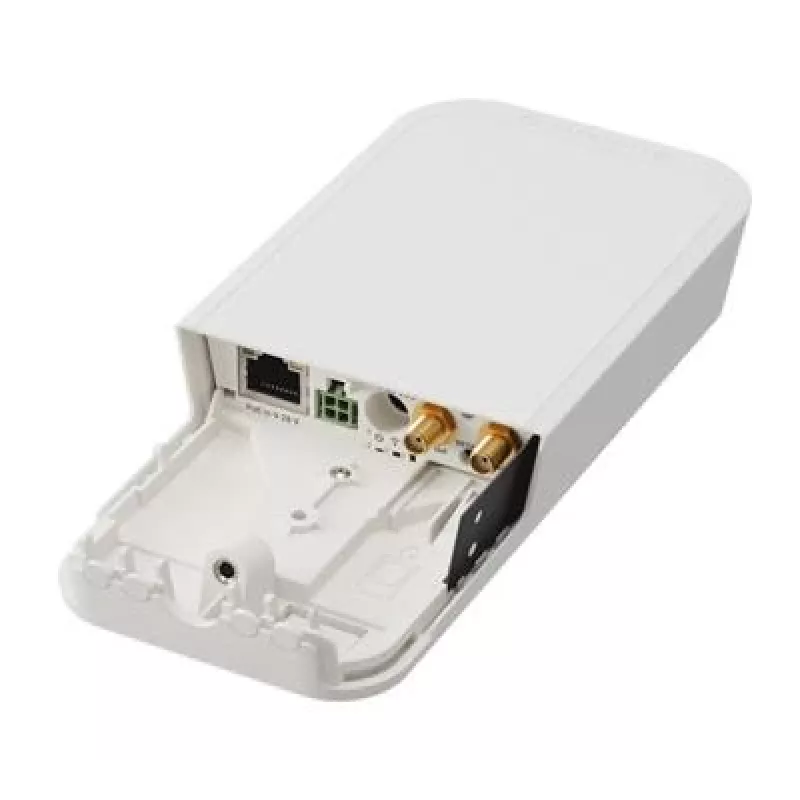

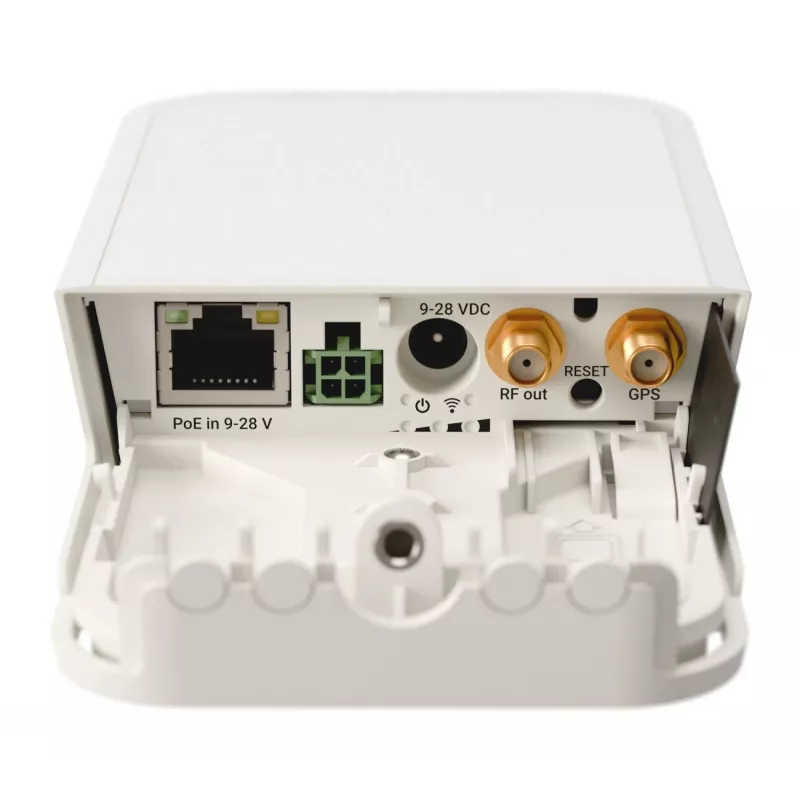

Wireless Access Point kit MikroTik wAP LR9G RBwAPR-2nD + R11e-LR9G 915 MHz

The MikroTik wAP LR9G kit combines a weatherproof wAP enclosure with the R11e-LR9G 915 MHz miniPCIe radio module to deliver long-range wireless connectivity in a compact, mountable form factor. Designed for both outdoor and indoor deployments, this kit integrates with RouterOS to provide configurable point-to-point and point-to-multipoint links, support for IoT networks, and flexible mounting options on walls or poles. The small footprint and dedicated 915 MHz radio make it suitable for deployments where lower-frequency propagation and extended range are required.

Advantages

The kit provides extended range at sub-GHz frequencies with a purpose-built 915 MHz radio module, enabling better penetration and distance compared with higher-frequency bands. The wAP enclosure is weather-resistant and supports fixed mounting, while RouterOS compatibility allows advanced routing, security, and radio management. The compact design reduces visual impact and simplifies installation for long-range links and low-power sensor networks.

Suitable for

• Point-to-point long-distance links in rural or suburban environments
• Point-to-multipoint networks connecting multiple remote nodes
• Low-power wide-area or IoT sensor networks operating in the 915 MHz band
• Outdoor installations requiring a weather-resistant, mountable access point

Key specifications

• Operating frequency: 915 MHz band for long-range sub-GHz communication
• Form factor: wAP weatherproof access point enclosure suitable for wall or pole mounting
• Radio interface: miniPCIe 915 MHz radio module designed for long-range links
• Software: Compatible with MikroTik RouterOS for routing, firewall and wireless configuration
• Power options: Passive PoE support via the wAP enclosure (check RouterOS device documentation for configuration)
• Antenna: Uses external antenna connectors or integrated antenna options depending on the enclosure configuration

How to use

Install the R11e-LR9G radio module into the miniPCIe slot inside the wAP enclosure and secure the unit to a wall or pole using the included mounting hardware. Connect power via the passive PoE input and perform initial configuration through RouterOS using Winbox, WebFig or the command line. Configure radio parameters for the 915 MHz band, set up bridging or routing as required, and apply appropriate security settings such as encryption and access controls. Verify link quality and adjust antenna alignment and channel settings for optimal range and stability.

Recommendations

For long-range performance, use suitable antennas rated for the 915 MHz band and install the unit at a clear height with minimal obstructions. Follow local regulations for sub-GHz transmit power and channel usage. Regularly update RouterOS firmware and monitor link statistics to maintain reliable operation.
