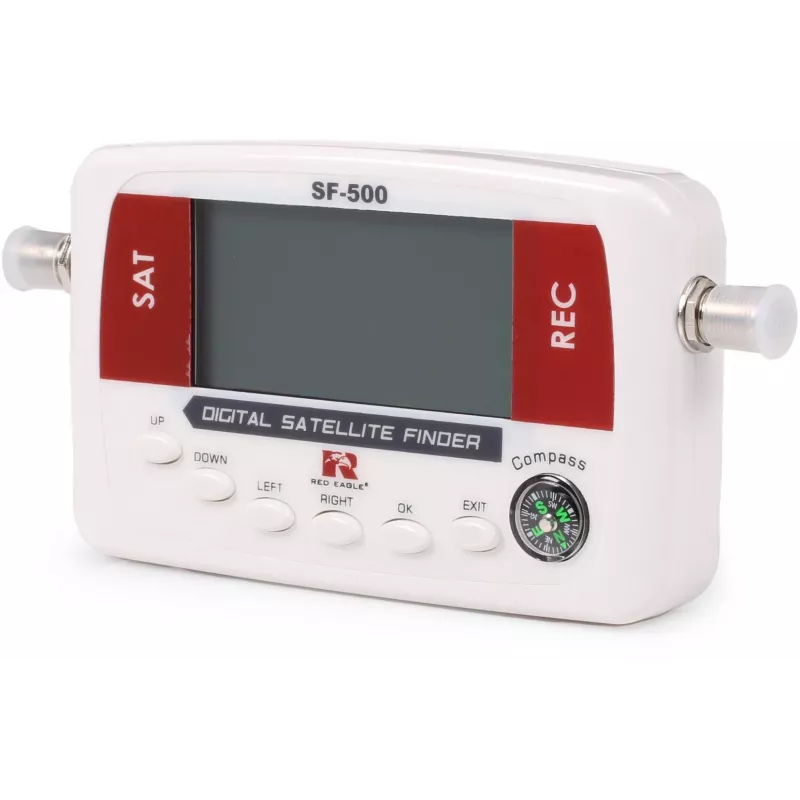

Satellite Signal Meter Red Eagle SF-500 — digital SAT meter with high accuracy and easy-to-read display

The Red Eagle SF-500 is a digital satellite signal meter designed for accurate measurement of DVB-S and DVB-S2 signals. Compact and portable, this SAT meter displays signal strength and quality on an easy-to-read screen and is intended for aligning and troubleshooting satellite dishes. The SF-500 supports installers and DIY users by providing real-time feedback during antenna positioning and verifying reception after installation or maintenance.

Advantages

The SF-500 offers high measurement accuracy and a clear numerical and graphical display that simplifies finding the best dish orientation. Its portable design and battery operation make it convenient for on-site work, while standard input connectors enable connection to LNBs and satellite tuners. The device provides immediate readings of signal strength and quality, which helps reduce setup time and avoid repeated adjustments.

Suitable for

Key specifications

How to use

Connect the SF-500 to the satellite LNB using the standard coaxial cable, power the unit using the recommended batteries, and switch it on. Point the dish roughly toward the expected satellite position and observe the signal strength and quality indicators on the display. Make small adjustments to azimuth, elevation and skew while watching the readings to reach the optimal values. After alignment, recheck both strength and quality to confirm stable reception before securing the antenna.

Recommendations

Use the meter outdoors near the dish to avoid signal loss in long cable runs during alignment; perform fine adjustments while monitoring both signal strength and quality, and verify reception with the receiver after securing the dish. Keep spare batteries available for uninterrupted work in the field.
