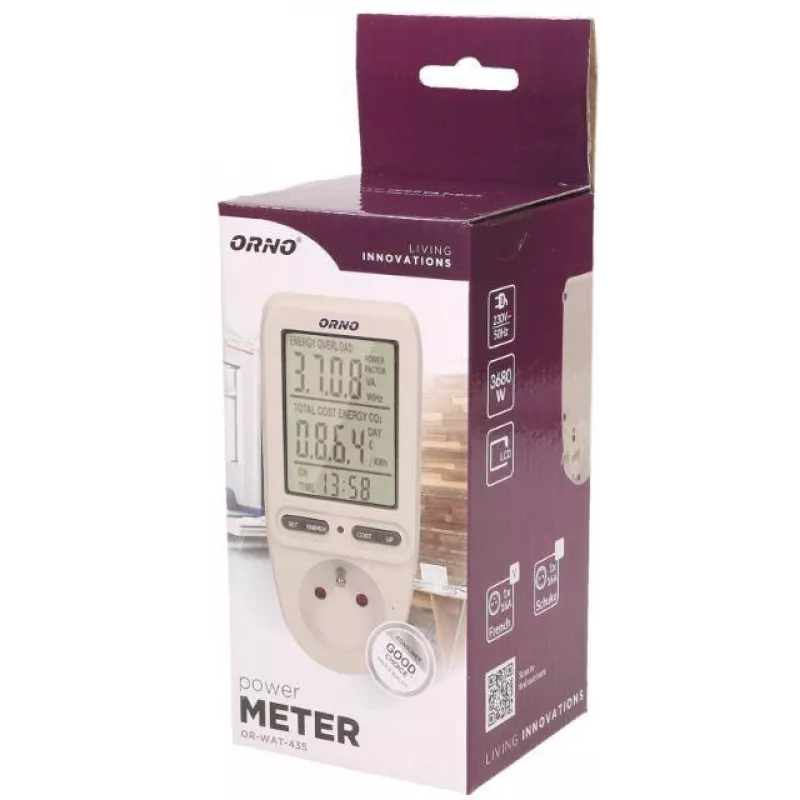

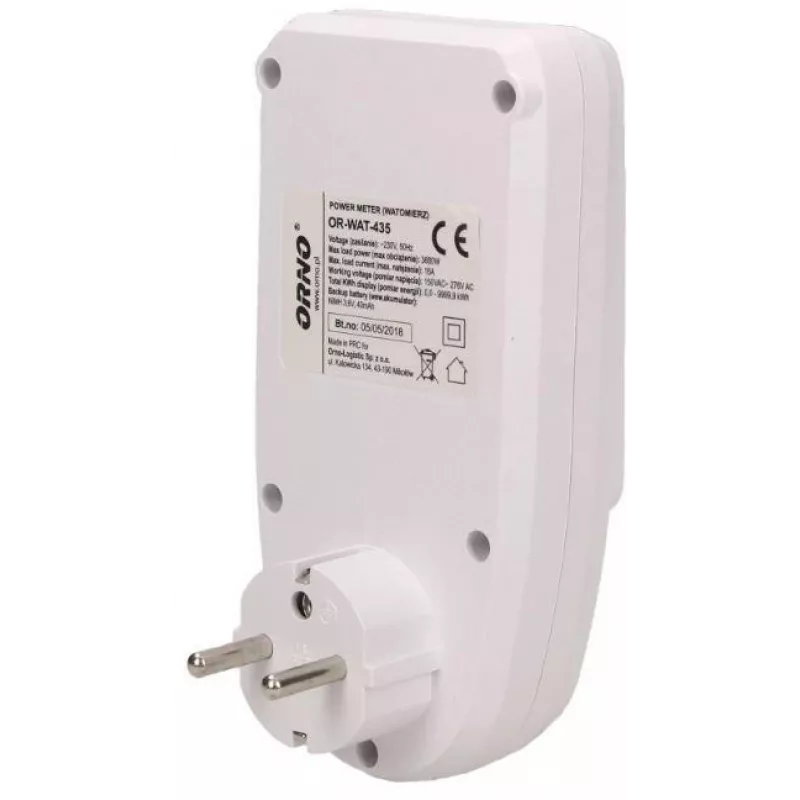

ORNO OR-WAT-435 Digital Energy Meter with LCD Display, 230V, 16A, 3680W, Type F Plug

The ORNO OR-WAT-435 is a high-precision digital energy meter designed for accurate measurement of electrical consumption in household and light commercial applications. Featuring a clear LCD display, this wattmeter provides real-time data on voltage, current, power, energy consumption, and power factor. With a maximum load capacity of 3680W and 16A, it is ideal for monitoring individual appliances or entire circuits. The built-in cost calculation function allows users to estimate electricity expenses, while the internal Ni-MH battery ensures data retention during power outages. Equipped with a Type F (Schuko) plug and socket, the OR-WAT-435 is easy to install and use.

Advantages

Accurate energy monitoring helps reduce electricity bills and identify power-hungry devices. The large LCD display shows multiple parameters simultaneously, making it easy to read. The overload alarm provides an extra layer of safety by alerting users when power exceeds safe limits. The cost calculation feature enables budgeting and energy management.

Suitable for

• Home energy monitoring
• Office equipment power tracking
• Small business energy management
• Appliance energy consumption analysis

Key specifications

• Product Type: Digital Energy Meter / Wattmeter
• Display: LCD
• Operating Voltage: 230V AC, 50Hz
• Max Load: 3680W
• Max Current: 16A
• Voltage Measurement Range: 200V - 276V AC
• Current Measurement Range: 0.000A - 16.000A
• Power Measurement Range: 0.0W - 3680W
• Energy Measurement Range: 0.000 kWh - 9999 kWh
• Power Factor Measurement: 0.00 - 1.00
• Overload Alarm: Yes
• Cost Calculation Function: Yes
• Internal Battery: Ni-MH 3.6V (memory backup)
• Meter Power Consumption: < 0.5W
• Operating Temperature: 0°C to +50°C
• Plug Type: Type F (Schuko)
• Socket Type: Type F (Schuko)

Recommendations

For optimal performance, plug the meter directly into a wall outlet and avoid using extension cords. Ensure the total load does not exceed 3680W. The meter is suitable for indoor use only.
