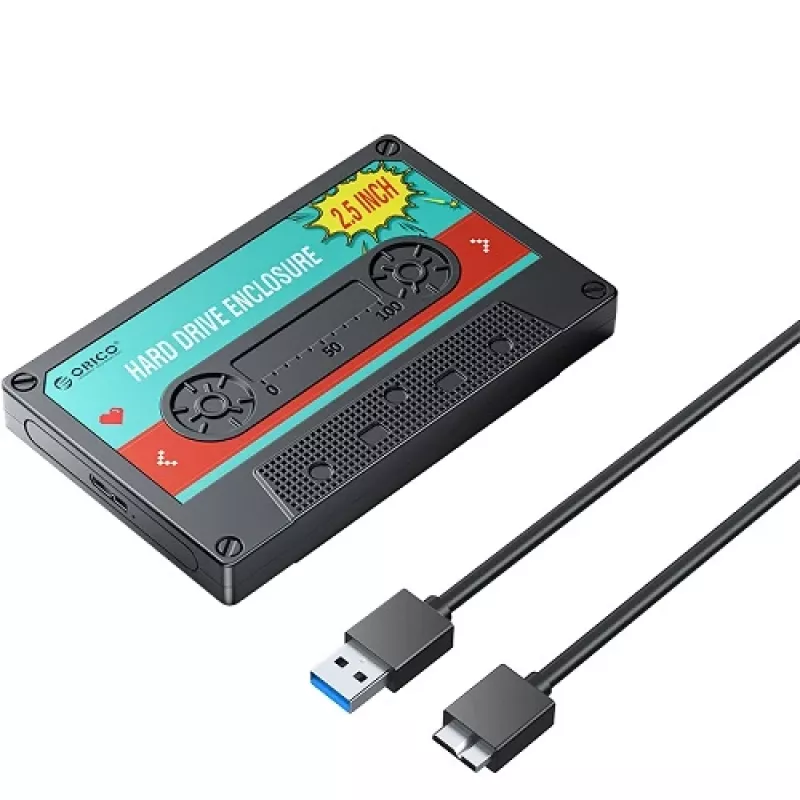

ORICO 2.5 inch HDD external enclosure 2580U3 USB 3.0 for 2.5-inch SATA drives

ORICO 2.5" HDD external enclosure 2580U3 connects a 2.5-inch SATA HDD or SSD to a computer via a USB 3.0 Type-A port. The compact, lightweight ABS body supports SATA I/II/III drives with thickness from 7 mm to 9.5 mm and offers tool-free sliding installation, a status LED and a 0.5 m micro USB 3.0 to USB Type-A cable. The enclosure is plug-and-play, supports up to 6 TB drives and is compatible with Windows, macOS, Linux and Android.

Advantages

The enclosure provides USB 3.0 data transfer speeds up to 5 Gbps with backward compatibility to USB 2.0, intelligent sleep mode after 10 minutes of inactivity to reduce power use and extend drive life, and a shockproof cushion for improved protection. Tool-free design and included cable make setup quick without additional tools or drivers.

Suitable for

• External storage and portable backups
• Data migration between computers and devices
• Connecting 2.5" SATA HDD or SSD for quick file access
• Using internal laptop drives as external drives

Key specifications

• Supported drives: 2.5" HDD/SSD, thickness 7–9.5 mm
• Interface: SATA (7+15 pin) to micro USB 3.0 (Type-A host)
• USB version: 3.0 (up to 5 Gbps)
• SATA version: III (backward compatible with I/II)
• Maximum capacity: 6 TB
• Cable: micro USB 3.0 to USB Type-A, length 0.5 m
• Body material: ABS, color: black, weight: 62 g
• Dimensions: 128 x 80 x 14 mm
• Compatible OS: Windows, macOS, Linux, Android
• Warranty: 12 months

How to use

Slide open the enclosure, insert a compatible 2.5" SATA HDD or SSD aligning the 7+15 pin SATA connector, then close the enclosure until it locks. Connect the supplied micro USB 3.0 cable to the enclosure and the USB Type-A port on your computer or device. The drive should be recognized automatically without drivers; if necessary, format or assign a drive letter using the operating system's disk management tools.

Recommendations

Use the enclosure on a stable surface and avoid exposing it to strong shocks or liquids. Enable the intelligent sleep mode by leaving the drive idle for normal operation; for frequent continuous transfers consider temporarily disabling sleep in the host system if supported. For optimal performance, connect to a USB 3.0 port on the host device and use high-quality cables.
