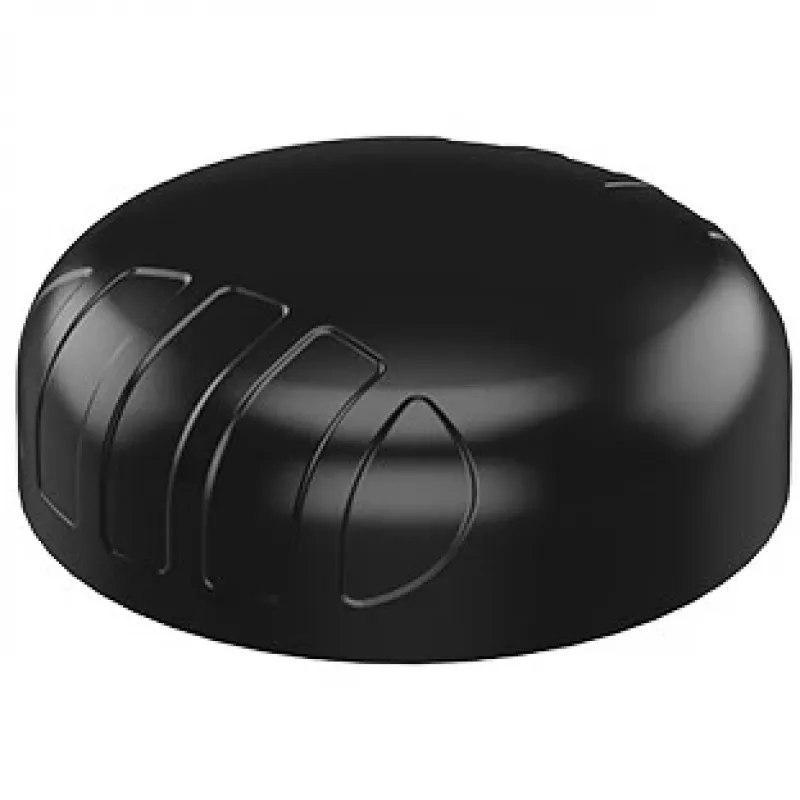

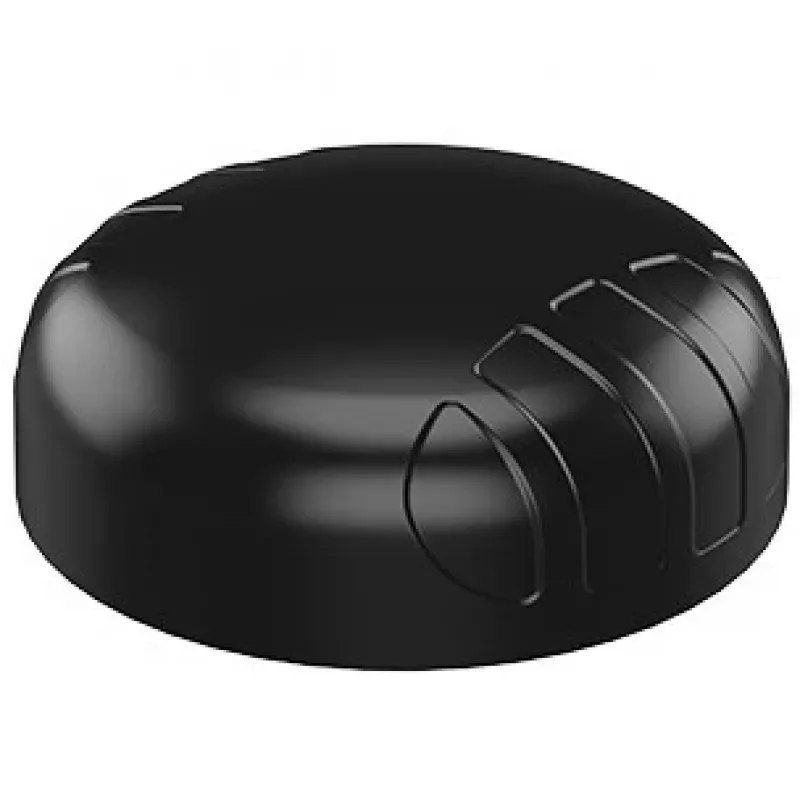

Omni-directional antenna Poynting PUCK-3-V2 21 dBi SMA 0.617-6 GHz

The Poynting PUCK-3-V2 omni-directional antenna is a compact, multi-band antenna designed for reliable wireless connectivity across 0.617–6.0 GHz. Housed in a small, weather-resistant enclosure, the PUCK-3-V2 integrates cellular (2G/3G/4G/5G), dual-band Wi‑Fi (2.4/5/6 GHz) and high-precision GPS/GLONASS reception in a single unit. The antenna includes a male SMA connector and operates with an input voltage of 2.7–5 V, offering a 21 dBi gain for improved link performance in IoT, M2M, smart utilities, transportation, marine and agricultural deployments.

Advantages

The PUCK-3-V2 provides ultra-wideband cellular coverage (617–6000 MHz) in a single SISO element, ensuring compatibility with current and evolving networks up to 6 GHz. It supports dual-band SISO Wi‑Fi across 2.4, 5 and 6 GHz, and incorporates an active GPS/GLONASS element with operation to -40°C for accurate positioning. Optimised radiation patterns deliver a reliable omnidirectional footprint with pattern diversity suited to elevated and rooftop installations. Its compact, versatile design simplifies integration across multiple industries while maintaining high performance.

Suitable for

• IoT and M2M devices
• Smart metering and utilities
• Transportation systems and fleet tracking
• Marine connectivity
• Agricultural and farming telemetry

Key specifications

• Frequency range: 0.617–6.0 GHz
• Gain: 21 dBi
• Connector: male SMA
• Input voltage: 2.7–5 V
• Modes: Cellular (SISO), Wi‑Fi (SISO dual-band 2.4/5/6 GHz), GPS/GLONASS (active)
• Operating temperature: down to -40°C
• Form factor: compact omni-directional enclosure

How to use

Mount the PUCK-3-V2 in a location with clear exposure to the sky for best GPS performance and minimal obstructions for cellular/Wi‑Fi signals. Connect the antenna to the device using the male SMA connector, and supply the required input voltage (2.7–5 V) if the active GPS element requires power. For installations on vehicles, rooftops or equipment enclosures, ensure the antenna is securely fixed and cable runs use appropriate weatherproofing and strain relief.

Recommendations

For optimal cellular and GPS performance, position the antenna away from large metal obstructions and base stations or repeaters. Test placement for signal strength before final mounting and use manufacturer-recommended cabling and grounding practices in outdoor or marine installations.
