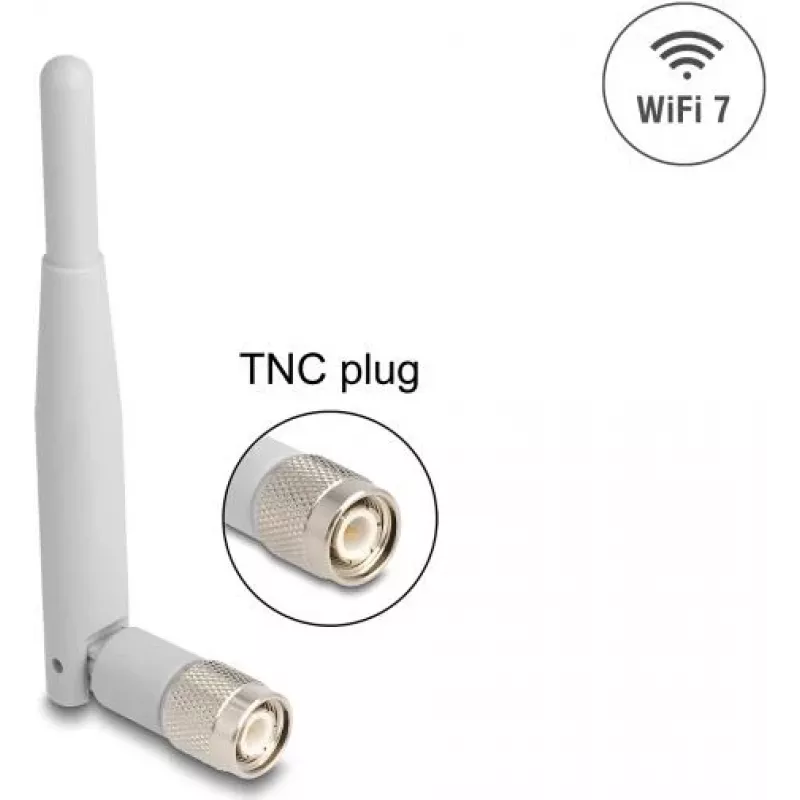

Omni-directional antenna DeLOCK 90736 3 dBi TNC connector

The DeLOCK 90736 omni-directional antenna provides coverage across multiple WLAN frequency bands and is equipped with a TNC connector and vertical polarization. With a gain of 3 dBi and compact dimensions (height 134.5 mm, diameter 1.45 cm), it is lightweight and suitable for various networking setups that require reliable omnidirectional signal distribution.

Advantages

The antenna supports dual frequency ranges (2.4–2.5 GHz and 4.9–7.125 GHz) for flexible use with different WLAN standards and regulations. Its 3 dBi gain balances coverage and form factor. The TNC connector ensures a secure RF connection and the vertical polarization aligns with typical access point and client antenna orientations. The small size and low weight simplify installation in constrained spaces.

Suitable for

Key specifications

How to use

Connect the antenna to the device's TNC antenna port and ensure the connector is tightened securely but not over-torqued. Position the antenna vertically to match its polarization and to achieve uniform omnidirectional coverage. Verify device settings and local regulatory limits for the used frequency bands before operation.

Recommendations

For best performance, mount the antenna clear of large metal obstructions and at a suitable height for the intended coverage area. When deploying in multi-band environments, confirm that connected equipment supports the antenna's frequency ranges and that transmission power complies with regional regulations.
