OEM BY SANSEC HPE Aruba 1G SFP LC LX 10km SMF XCVR Compatible

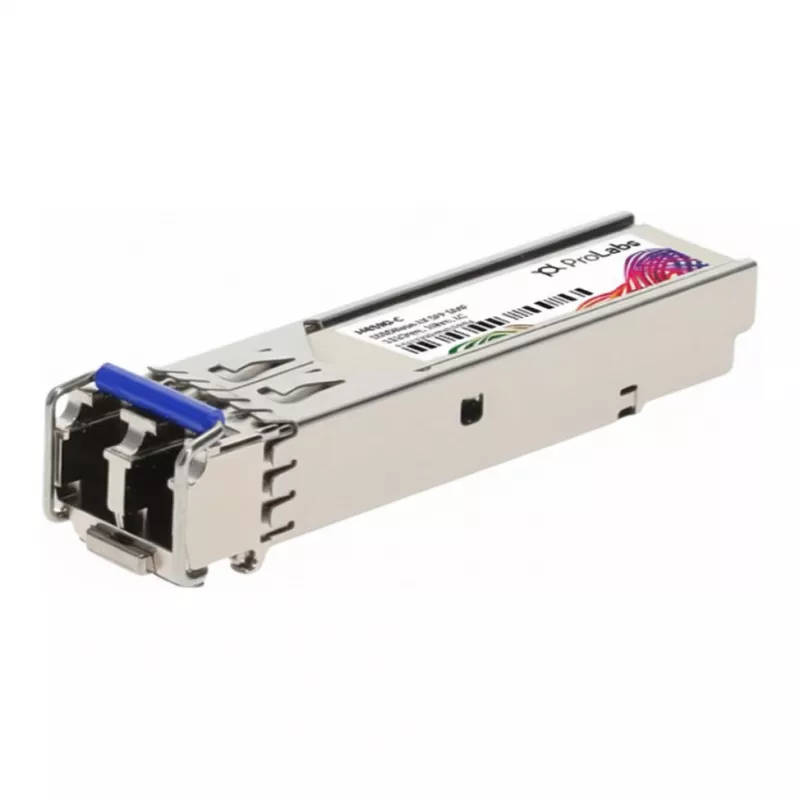

The OEM BY SANSEC J4859D-C is a high-performance, cost-effective SFP (Small Form-Factor Pluggable) transceiver module designed for Gigabit Ethernet applications. It is fully compatible with HPE Aruba switches and routers, providing reliable 1 Gbps connectivity over single-mode fiber at distances up to 10 km. This module is an ideal replacement for HPE Aruba J4859C, J4859B, and J4859A transceivers, offering the same functionality at a lower cost.

Advantages

This SFP transceiver delivers exceptional value with full compatibility and performance. It supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of optical parameters, ensuring network reliability. The hot-pluggable design allows for easy installation and maintenance without disrupting network operations. With low power consumption (<1.0 W) and a robust metal housing, it is built for long-lasting performance in demanding environments.

Suitable for

• Gigabit Ethernet connections in enterprise networks
• Fiber Channel applications
• Data centers and server rooms
• Telecommunications and ISP networks
• Replacing or expanding HPE Aruba network infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1 Gbps
• Wavelength: 1310 nm
• Max Distance: 10 km (6.2 miles)
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Interface: 1000BASE-LX
• DDM/DOM Support: Yes
• Compatibility: HPE Aruba (J4859C, J4859B, J4859A)
• Transmitter Type: FP Laser
• Receiver Type: PIN Photo Detector
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Compliance: MSA Compliant
• Housing Material: Metal

Recommendations

For optimal performance, use with single-mode fiber optic cables terminated with LC connectors. Ensure compatibility with your HPE Aruba equipment by verifying the supported transceiver standards. This module is a direct replacement for HPE Aruba J4859C, J4859B, and J4859A.
