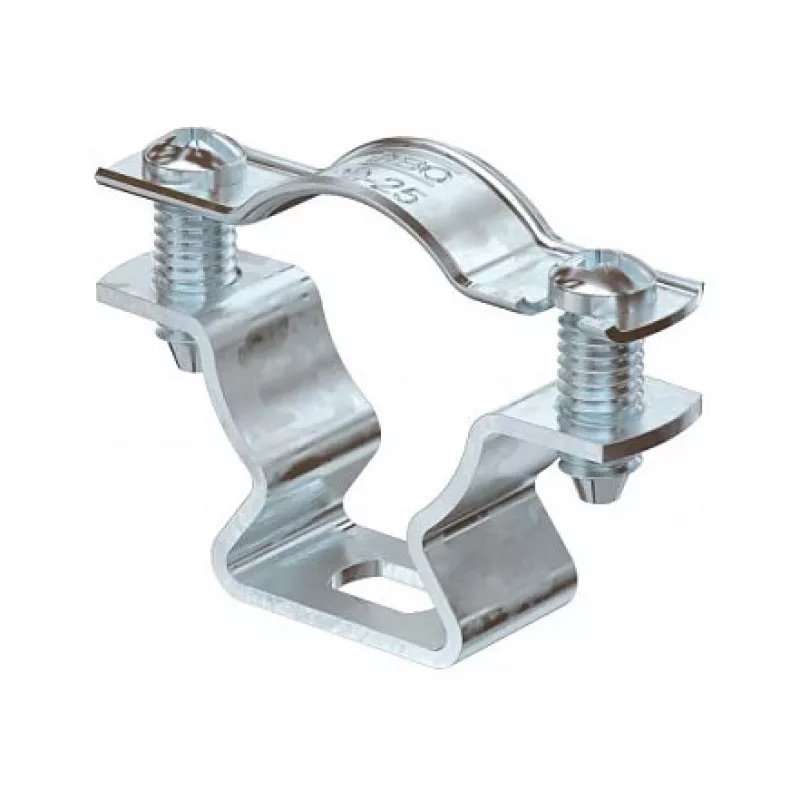

OBO ASL 733 25 FT Distance Clamp with Slotted Hole 20-25mm Steel Hot-Dip Galvanized

The OBO ASL 733 25 FT distance clamp stands apart from ordinary cable clamps through its precision-engineered slotted hole and robust hot-dip galvanized steel body. Where standard clamps force you to accept fixed mounting positions or risk corrosion, this model offers a 7 x 20 mm slotted hole for lateral adjustment and a 25 mm standoff that keeps cables, pipes, or conduits safely away from the mounting surface. Its clamping diameter range of 20–25 mm covers a broad spectrum of common installations, making it a versatile choice for both indoor and outdoor use.

Highlights

• Hot-dip galvanized steel (FT) for superior corrosion resistance, even in harsh environments
• Slotted hole (7 x 20 mm) allows precise positioning during screw mounting
• 25 mm distance from mounting surface prevents moisture accumulation and improves airflow
• Clamping range 20–25 mm accommodates cables, pipes, and conduits
• Halogen-free and RoHS compliant for safe use in sensitive areas

In daily use

Installation is straightforward: position the clamp, mark the slotted hole, and secure with a suitable screw. The slotted design means you can fine-tune alignment after drilling, reducing the need for rework. Once mounted, the clamp holds a single cable or pipe firmly without pinching, thanks to the carefully formed steel body. The hot-dip galvanized coating resists rust and UV degradation, so the clamp remains reliable for years, whether installed in a damp basement, on an outdoor wall, or in an industrial setting.

Full specifications

• Brand: OBO BETTERMANN
• Model: ASL 733 25 FT
• MPN: 1362718
• EAN: 4012196599936
• Product type: Distance clamp / spacer clamp
• Material: Steel
• Surface treatment: Hot-dip galvanized (FT)
• Clamping diameter range: 20–25 mm
• Mounting type: Screw mounting
• Hole type: Slotted hole
• Slotted hole dimensions: 7 x 20 mm
• Distance to mounting surface: 25 mm
• Suitable for: Cables, pipes, conduits
• Number of cables/pipes per clamp: 1
• Temperature range: -50°C to +150°C
• UV resistance: Yes
• Halogen-free: Yes
• RoHS compliant: Yes

Final note

OBO BETTERMANN's ASL 733 25 FT combines thoughtful design with durable materials, delivering a dependable fixing solution that stands the test of time.
