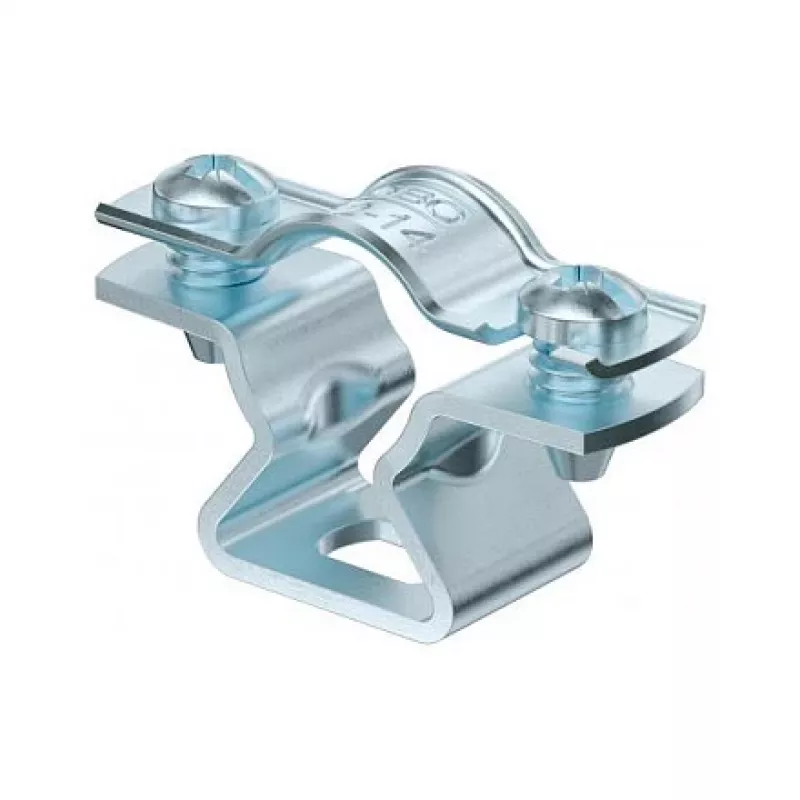

OBO ASL 733 14 G Distance Clamp with Slotted Hole 12-14mm Steel Galvanized

In industrial and commercial installations, securing cables, pipes, and conduits at a precise distance from the mounting surface is essential for safety and organization. The OBO ASL 733 14 G Distance Clamp is engineered for this purpose, providing a reliable 14 mm stand-off from the wall or ceiling. Its slotted hole (7 x 15 mm) allows for easy adjustment during installation, ensuring perfect alignment even when the mounting point is not exact. Made from galvanized steel, this clamp offers excellent corrosion resistance, making it suitable for both indoor and protected outdoor environments. With a clamping range of 12 to 14 mm, it accommodates standard conduit and pipe sizes, and its single-screw design simplifies fastening. This clamp is a robust solution for electricians and installers who demand durability and precision.

Key specifications

• Product type: Distance clamp
• Series: ASL 733
• Material: Steel, galvanized
• Clamping diameter range: 12 - 14 mm
• Mounting hole type: Slotted hole (7 x 15 mm)
• Number of fixing holes: 1
• Mounting distance from wall: 14 mm
• Overall dimensions (L x W x H): 40 x 18 x 20 mm
• Temperature range: -50 to +150 °C
• Halogen-free: Yes
• Fire behavior: Non-flammable
• Corrosion protection: Yes

Why choose it

The ASL 733 14 G stands out for its combination of strength and adjustability. The galvanized steel construction ensures long service life, while the slotted hole permits fine-tuning during installation, reducing the need for precise drilling. Its 14 mm stand-off height provides adequate spacing for heat dissipation and prevents cable damage. The wide temperature range and non-flammable properties make it safe for various applications, including those with high thermal loads. Additionally, being halogen-free means it does not emit corrosive gases in the event of a fire, enhancing safety in sensitive environments.

Ideal use cases

• Securing electrical conduits in commercial buildings
• Mounting pipes in HVAC systems
• Organizing cable runs in control panels
• Installations in protected outdoor areas, such as under canopies
• Use in environments with temperature fluctuations, from cold storage to industrial ovens

Good to know

This clamp is designed for screw mounting and is intended for single-clamp applications. It is suitable for indoor use and in protected outdoor areas where it is not directly exposed to harsh weather. The slotted hole dimensions (7 x 15 mm) allow for M6 or M8 screws, providing flexibility in fastener selection. Always ensure the clamp is tightened to the manufacturer's recommended torque to avoid damage to the clamped object.
