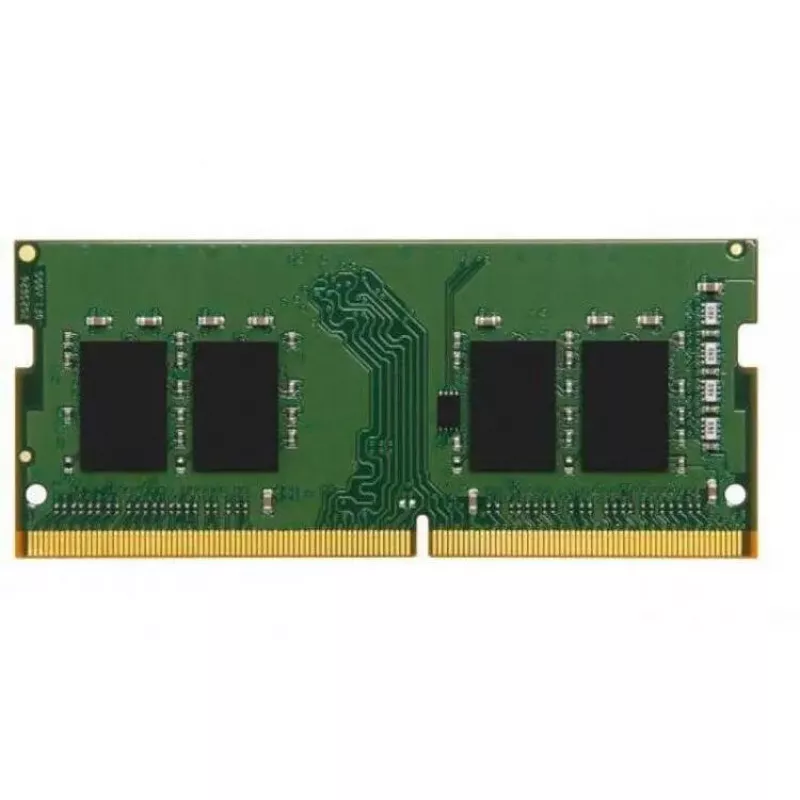

Notebook SODIMM RAM Lenovo 16GB DDR4 3200 MHz Hynix memory module

Lenovo 16GB DDR4 3200 MHz SODIMM with Hynix memory chips is a single-module laptop memory upgrade designed for systems that accept DDR4 SODIMM form factor. The module increases available RAM to 16GB and operates at a 3200 MHz data rate, improving multitasking, application responsiveness and general system fluidity in compatible Lenovo laptops and other notebooks that support DDR4-3200 SODIMM modules.

Advantages

This 16GB SODIMM uses Hynix memory ICs and adheres to DDR4 timing and power characteristics for stable operation at 3200 MHz. As a single 16GB module it enables straightforward capacity expansion without replacing existing modules in many dual-channel systems, lowering memory upgrade cost while increasing available working memory. The compact SODIMM size is optimized for laptops and small form-factor systems where full-size DIMMs are not supported.

Suitable for

• Upgrading RAM in compatible Lenovo laptops and small-form-factor PCs
• Improving multitasking and browser tab handling
• Enhancing performance for office applications and light multimedia editing
• Replacing a faulty or undersized SODIMM module in supported systems

Key specifications

• Capacity: 16 GB single SODIMM module
• Type: DDR4 SODIMM
• Speed: 3200 MHz (PC4‑25600)
• Memory chips: Hynix DRAM
• Voltage: standard DDR4 voltage (1.2 V typical)
• Form factor: 260-pin SODIMM for laptops and compact systems

How to use

Power off the laptop and disconnect the battery and power adapter where possible before installation. Access the memory compartment according to the device manufacturer’s service instructions, remove the existing module if replacing, and insert the 16GB DDR4 SODIMM into the slot at an angle until the gold contacts are fully seated, then press down until the retention clips lock it in place. Reassemble the device, reconnect power and boot the system; verify the new memory is recognized in the firmware or operating system memory settings.

Recommendations

Install the module in a static-free environment and handle by the edges to avoid ESD damage. For dual-channel operation, pair modules of equal capacity and similar speed where supported. Check the laptop manufacturer’s memory compatibility list and maximum supported capacity before upgrade.
