NEXO M210 - Alpha+ Main Module (2x 10 inch Drivers | HF Waveguide Articulation) - Black

The NEXO M210 is a high-performance 3-way bi-amplified main module designed for professional sound reinforcement. Part of the renowned Alpha+ series, it delivers exceptional clarity and power for demanding audio applications.

Advantages

With a maximum SPL of 140 dB peak and a frequency response from 65 Hz to 19 kHz, the M210 provides outstanding sound quality and coverage. Its integrated rigging system allows for flexible deployment in arrays.

Suitable for

• Large-scale live sound events
• Fixed installations in concert halls and theaters
• Portable PA systems for touring

Key specifications

• System Type: 3-way Bi-amplified Main Module
• Frequency Response (-3dB): 65 Hz - 19 kHz
• Usable Range (-6dB): 60 Hz - 20 kHz
• Sensitivity (1W @ 1m): 105 dB SPL
• Nominal Impedance (LF): 8 Ohms
• Nominal Impedance (MF/HF): 8 Ohms
• Power Handling (LF RMS): 1000 W
• Power Handling (LF Peak): 2000 W
• Power Handling (MF/HF RMS): 400 W
• Power Handling (MF/HF Peak): 800 W
• Maximum SPL (Peak @ 1m): 140 dB
• Dispersion (Horizontal): 75°
• Dispersion (Vertical): 30°
• LF Drivers: 2x 10-inch long excursion
• MF Drivers: 4x 2.5-inch voice coil
• HF Driver: 1x 3-inch voice coil compression driver with HF Waveguide
• Connectors: 2x NL4 Speakon
• Construction: Baltic Birch Plywood
• Finish: Black textured paint

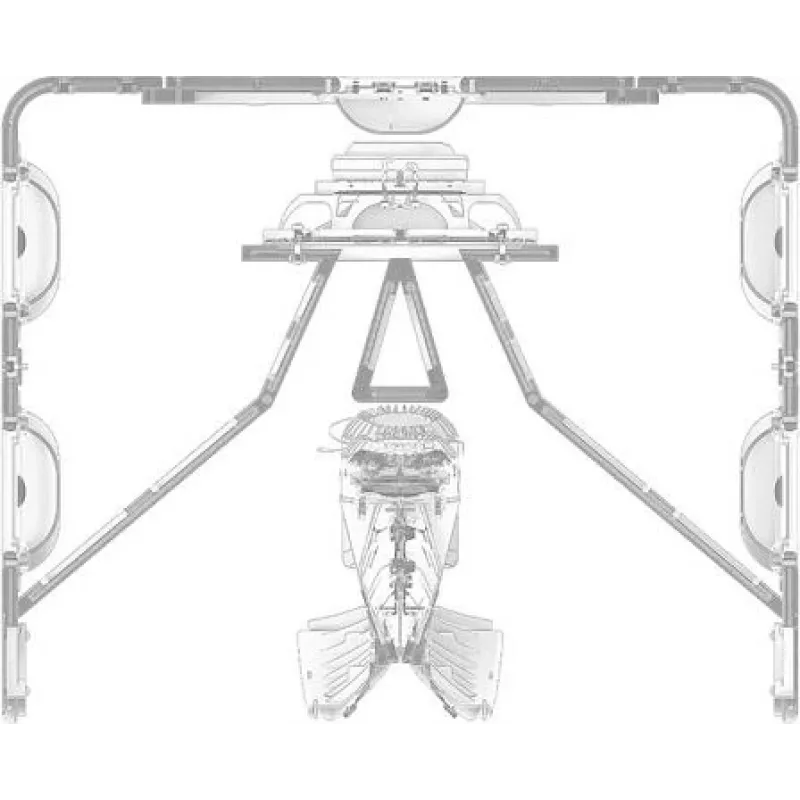

• Rigging: Integrated rigging system

Recommendations

For optimal performance, pair the M210 with compatible NEXO amplification and processing. Ensure proper rigging and safety measures when flying the system.
