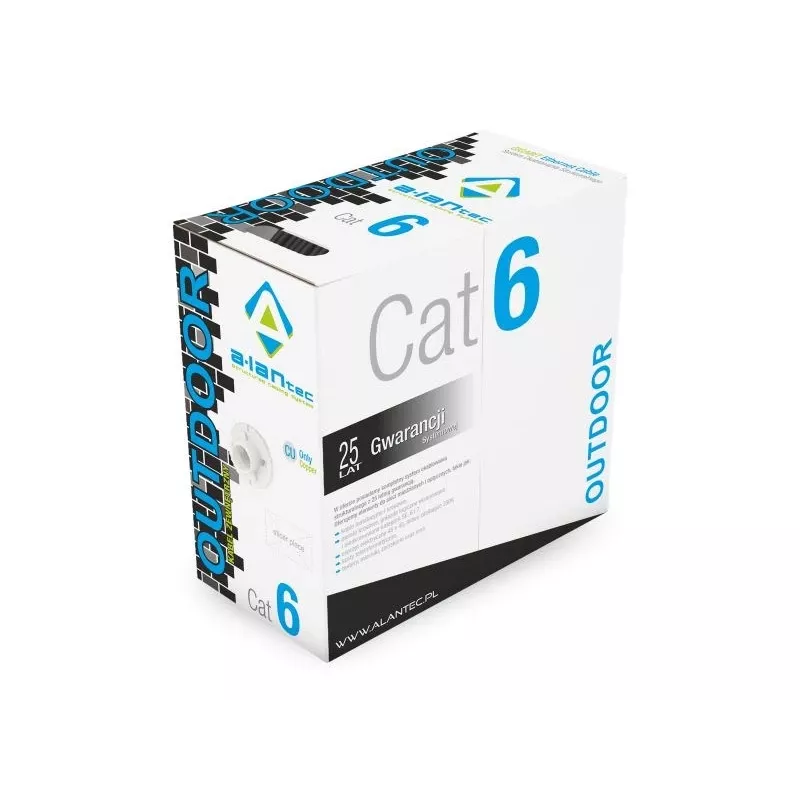

Networking cable Alantec KIU6OUTS305 U/UTP Cat6 305 m Black, 23 AWG, PE jacket, 250 MHz

The Alantec KIU6OUTS305 U/UTP Cat6 networking cable is a 305-metre spool of solid-performance cable designed for structured cabling and general network installations. Each cable contains eight colour-coded polyethylene-insulated conductors twisted into four pairs with varying lay lengths. The black sheath is printed with the part number, specification details and a unique 305-metre marking on each spool to help measure installed length and remaining cable.

Advantages

The U/UTP construction provides Category 6 performance while minimising cost and weight compared with shielded alternatives. Colour-coded insulated conductors and defined pair twisting help maintain signal integrity and simplify termination. Printed sheath markings allow quick measurement of deployed cable and remaining length on the 305 m spool.

Suitable for

• Structured LAN installations requiring Cat6 performance
• Office and data-room horizontal cabling
• Patch panel and switch connections
• General-purpose network wiring where a 305 m spool is convenient

Key specifications

• Manufacturer: Alantec
• Model / MPN: KIU6OUTS305
• Cable type: U/UTP Cat6
• Length: 305 m

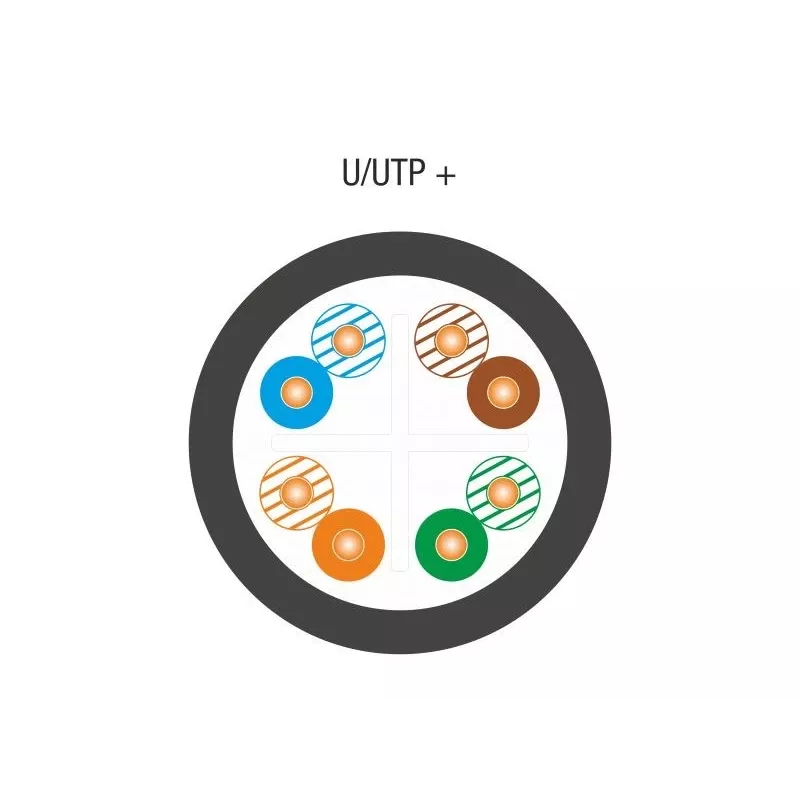

• Conductors: 8 colour-coded polyethylene insulated conductors (4 twisted pairs)
• Sheath colour: Black
• Weight (approx.): 59 kg
• EAN: 5901738553637

How to use

Select the required run length and cut the cable from the spool using appropriate cable cutters. Strip the outer sheath and separate the four twisted pairs, preserving pair twist as much as possible when terminating. Terminate to Cat6-compatible connectors, jacks or patch panels following standard wiring schemes (T568A or T568B). Use proper cable management and support to avoid undue bending or tension that could degrade performance.

Recommendations

For optimal performance maintain recommended bend radius and avoid close parallel runs with high-voltage power cables; follow Cat6 installation guidelines and test each link after termination to verify compliance with required network performance.
