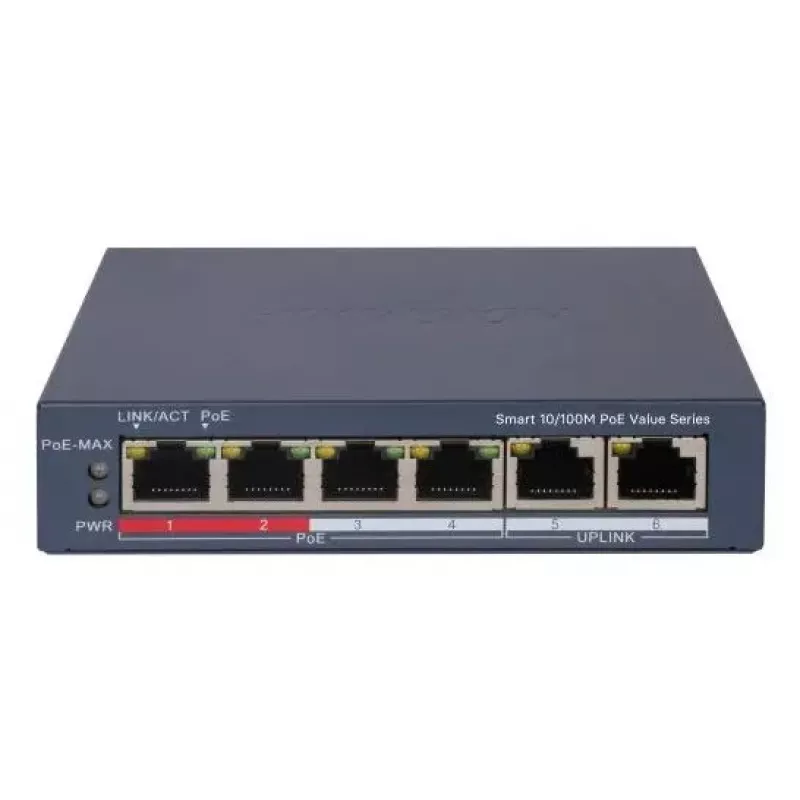

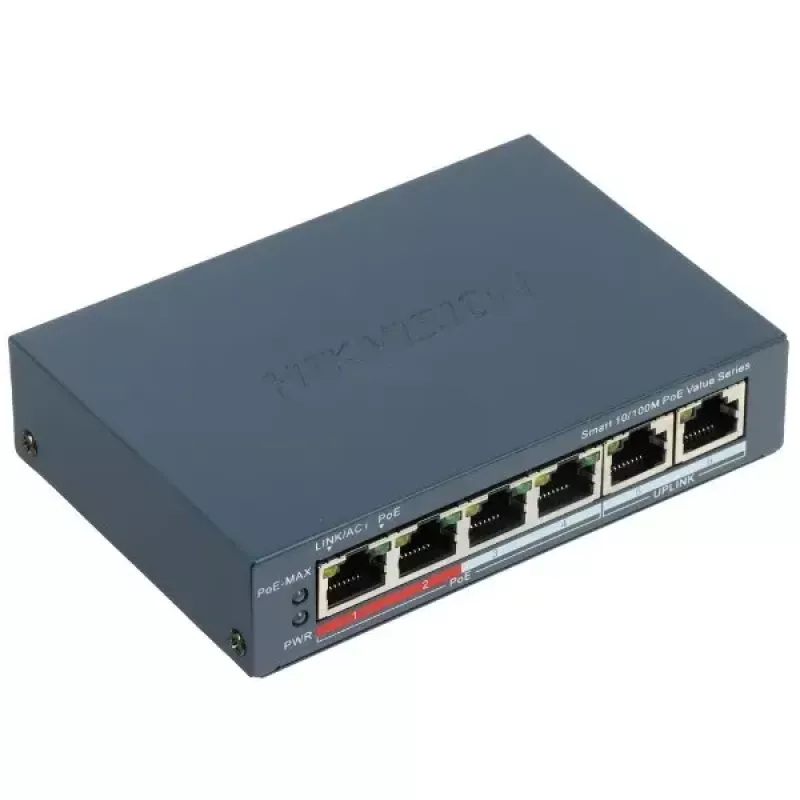

Network switch Hikvision DS-3E1106P-EI — 6-port PoE Ethernet switch, unmanaged, 10/100 Mbps

The Hikvision DS-3E1106P-EI is an unmanaged Ethernet switch with six 10/100 Mbps copper ports, including multiple Power over Ethernet (PoE) ports for powering compatible devices. Designed for straightforward plug-and-play operation, the switch provides basic traffic forwarding and stable wired connectivity for small surveillance systems, SOHO networks, or compact office deployments. Its compact form factor and automatic link negotiation simplify installation and reduce setup time when connecting IP cameras, access points or VoIP phones.

Advantages

This unmanaged switch delivers PoE power and data over a single cable to supported devices, eliminating the need for separate power supplies at the device location. With 10/100 Mbps ports and automatic MDI/MDIX, it supports straightforward integration with existing copper cabling and network equipment. The device requires no configuration, which makes it suitable for installers and end users who need a reliable, low-maintenance solution for small-scale network expansion. Physical LEDs provide immediate status feedback for power and link activity.

Suitable for

• Small surveillance systems using PoE IP cameras
• Small offices or home offices connecting wired workstations
• Wireless access point backhaul requiring PoE power
• VoIP phone deployments where PoE simplifies installation
• Temporary or satellite sites needing quick plug-and-play networking

Key specifications

• Port count: 6 copper RJ45 ports supporting 10/100 Mbps
• PoE capability: multiple ports provide power over Ethernet to compatible devices
• Operation mode: unmanaged, plug-and-play
• Auto negotiation: automatic speed and duplex detection with auto MDI/MDIX
• Traffic handling: basic Layer 2 forwarding for Ethernet frames
• Form factor: compact desktop or shelf-mountable design
• LED indicators: link/activity and power status LEDs for each port

How to use

Place the switch in a well-ventilated area near your network devices and a suitable power source. Connect each IP camera, access point or VoIP phone to the switch using standard Ethernet cables; PoE-capable devices will receive power automatically when connected to PoE ports. Use the uplink or remaining ports to connect to your router or core network. No software configuration is required; the switch will negotiate link speed and duplex with connected devices and begin forwarding traffic immediately.

Recommendations

To ensure stable operation, plan PoE power budget for all connected devices and avoid exceeding the switch’s total PoE capacity. Use quality CAT5e or better cabling for reliable 10/100 Mbps links and minimize cable lengths where possible. Place the switch in a dry, dust-free environment and avoid obstructing ventilation. For larger networks or advanced traffic management, consider a managed switch with VLAN and QoS features.
