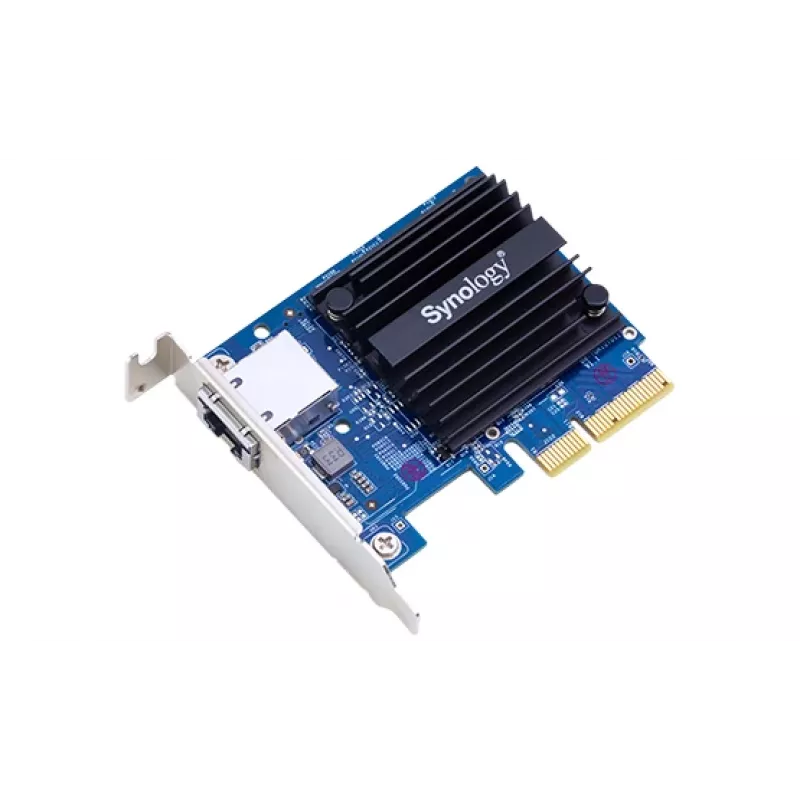

Network Card Synology E10G18-T1 Internal Ethernet 10000 Mbit/s

Network Card Synology E10G18-T1 Internal Ethernet 10000 Mbit/s
60 mo.
Network Card Synology E10G18-T1 Internal Ethernet 10000 Mbit/s
R3,736
The Synology E10G18-T1 is an internal PCI Express network card that delivers up to 10 Gbit/s wired Ethernet connectivity. Equipped with an RJ-45 port and compliant with IEEE 802.3an/bz and 802.3x standards, the card supports multi-gigabit auto-negotiation and backward compatibility with 5Gbps, 2.5Gb... Read More
Stock Out Of StockNo Stock Code 94788 Brand SYNOLOGY Model E10G18-T1 Warranty 5 Years

Shipping & Returns

The Synology E10G18-T1 is an internal PCI Express network card that delivers up to 10 Gbit/s wired Ethernet connectivity. Equipped with an RJ-45 port and compliant with IEEE 802.3an/bz and 802.3x standards, the card supports multi-gigabit auto-negotiation and backward compatibility with 5Gbps, 2.5Gbps, 1Gbps and 100Mbps links to work with existing copper cabling and network equipment.

Advantages

The E10G18-T1 provides a cost-effective upgrade path to 10GbE for small businesses and home users by enabling higher throughput without replacing existing RJ-45 infrastructure. It supports auto-negotiation across multiple speeds for flexible deployment and conforms to common Ethernet standards for reliable operation. Synology backs the card with a five-year limited warranty for long-term use.

Suitable for

  • Small office servers requiring higher network throughput
  • Home labs and power users upgrading to multi-gigabit networks
  • Workstations handling large file transfers or media streaming

Key specifications

  • Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
  • Host interface: PCI Express
  • Connector: RJ-45 (copper)
  • Supported standards: IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3x
  • Backward compatibility: 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
  • Product colours: Black, Blue

How to use

Install the Synology E10G18-T1 into an available PCI Express slot on a compatible host system, secure the card, and connect a Cat5e/Cat6 or higher-rated RJ-45 cable to the port. After powering on, ensure the system firmware and operating system recognize the card and install any required drivers. Configure link speed and network settings in the host OS or network management tools as needed.

Recommendations

For optimal performance at 10GbE speeds, use Cat6a or better cabling and ensure connected switches or routers support 10GBASE-T. When using existing cabling, verify cable rating and length to prevent speed drops; use auto-negotiation if mixed-speed devices are present.
Key Highlights
  • Small office servers requiring higher network throughput
  • Home labs and power users upgrading to multi-gigabit networks
  • Workstations handling large file transfers or media streaming
  • Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
  • Host interface: PCI Express
  • Connector: RJ-45 (copper)
  • Supported standards: IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3x
  • Backward compatibility: 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
  • Product colours: Black, Blue
Specifications
Auto-negotiation
Yes
Compatible products
FS series:FS2500, FS6400, FS3600, FS3400, FS3017, FS2017, FS1018 SA series:SA3600, SA3400, SA3200D UC series:UC3200 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series:RS820RP+, RS820+ 19 series:RS1619xs+, RS1219+, DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS3617xsII, DS1817+, DS1517+ 16 series:RS18016xs+ 15 series:RC18015xs+, DS3615xs 14 series:RS3614xs+, RS3614RPxs, RS3614xs 13 series:RS10613xs+, RS3413xs+ 12 series:RS3412RPxs, RS3412xs, DS3612xs 11 series:RS3411RPxs, RS3411xs, DS3611xs
Connectivity technology
Wired
Depth
13.6 mm
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
100,1000,2500,5000,10000 Mbit/s
Flow control support
Yes
Full duplex
Yes
Harmonized System (HS) code
85176990
Height
86 mm
Host interface
PCI Express
Interface
Ethernet
Internal
Yes
Jumbo frames
9000
Jumbo frames support
Yes
Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
PCI Card form factor
Full-height (low-profile)
PCI version
3.0
Product colour
Black, Blue
Quantity per pack
1 pc(s)
Storage temperature (T-T)
-20 - 60 °C
Width
68.1 mm
Price history over the last 6 months
Network Card Synology E10G18-T1 Internal Ethernet 10000 Mbit/s
Current
R3,736
Lowest
R3,736
Highest
R4,413
Change 24H
-R3   0%
Week
-R483   -11%
Month
-R483   -11%
