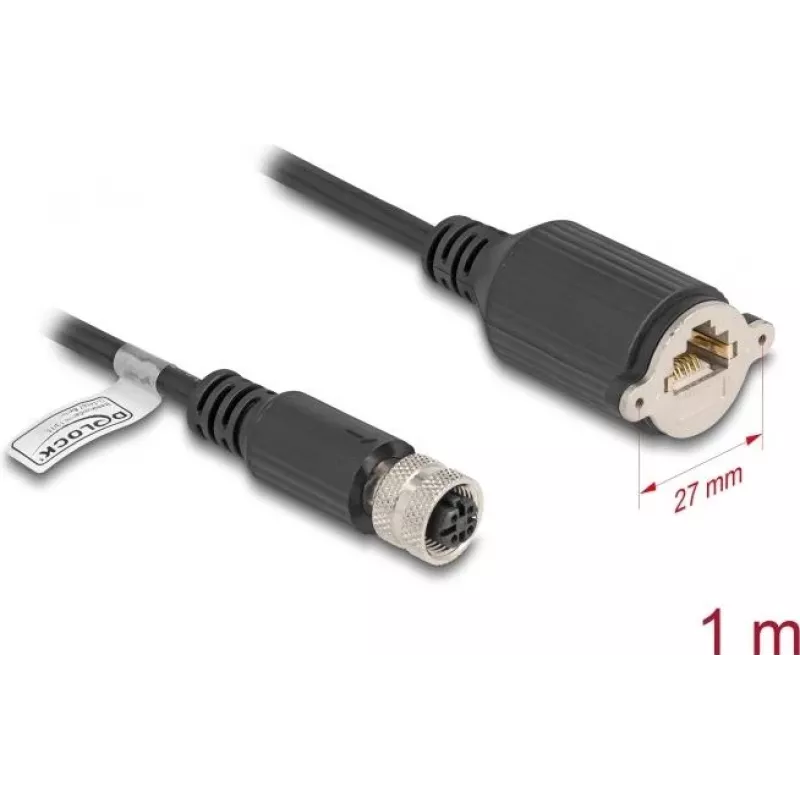

Network Cable DeLOCK M12 Cable D-coded 4 pin female to RJ45 jack Cat5e 1m Black

This industrial Ethernet cable by Delock connects devices with M12 D-coded 4‑pin female connectors to an RJ45 panel‑mount jack. It is a Cat5e F/UTP (shielded) cable, 1 m long and black, intended for network connections in machine control, automation and industrial environments where an M12 interface is required.

Advantages

The D‑coded M12 connector ensures correct orientation and reliable signal transmission for Ethernet, while the F/UTP shielding reduces electromagnetic interference. The RJ45 panel‑mount jack can be fastened with two screws to a slot bracket or chassis cutout, allowing the RJ45 interface to be placed in an accessible position. The 1 m length offers a compact connection suitable for short runs inside control cabinets or machinery.

Suitable for

• Connecting M12 D‑coded Ethernet devices to RJ45 network equipment
• Machine control and factory automation applications
• Wiring inside control cabinets, panels or chassis with an RJ45 cutout

Key specifications

• Brand: DELOCK
• Model / MPN: 80452
• EAN: 4043619804528
• Cable type: Cat5e F/UTP (shielded)
• Connector 1: M12 D‑coded 4‑pin female
• Connector 2: RJ45 panel‑mount jack (fastening with two screws)
• Cable length: 1 m
• Colour: Black

How to use

Fit the RJ45 panel‑mount jack into the corresponding slot or chassis cutout and secure it with the two screws. Plug the M12 D‑coded 4‑pin female connector into the matching M12 male port on the device. Ensure connectors are fully seated and the shielding is properly grounded where required. Use the 1 m cable for short connections between M12‑equipped field devices and RJ45 network equipment or patch panels.

Recommendations

Use this cable in environments compatible with Cat5e performance and verify the M12 coding matches the counterpart. Avoid excessive bending near the connectors and ensure the panel cutout provides sufficient clearance for the RJ45 jack installation.
