Neomounts WL35-750BL14 Heavy duty wall mount 42-75 inch - tilt - lockable - fast installation - TÜV

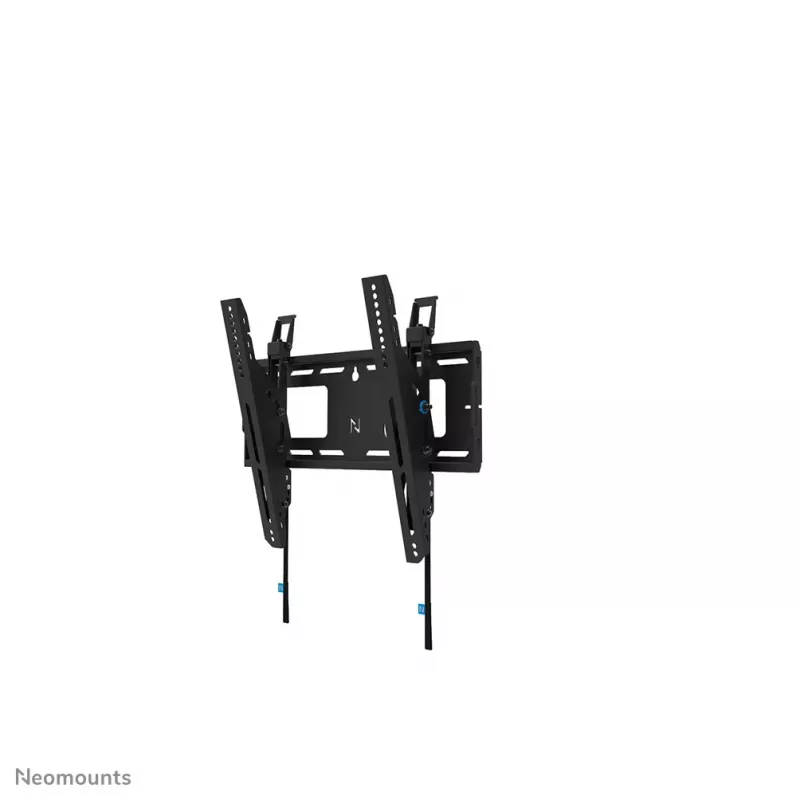

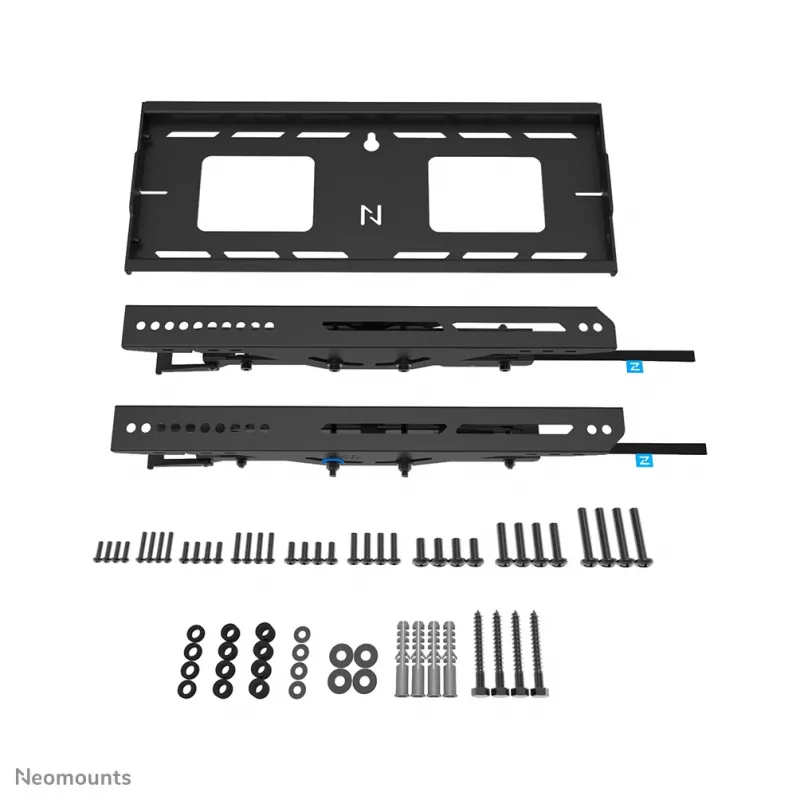

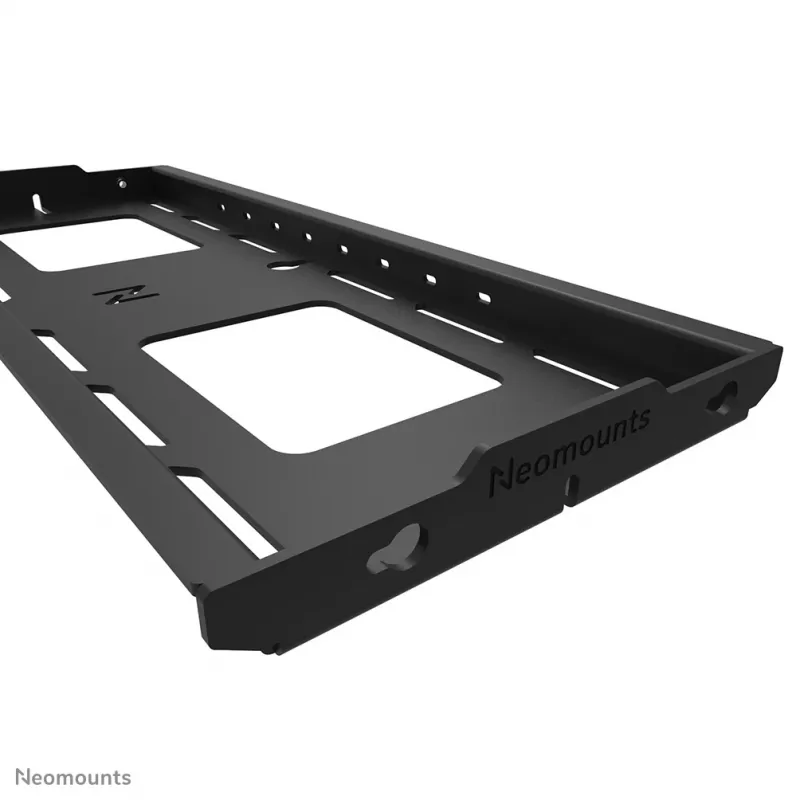

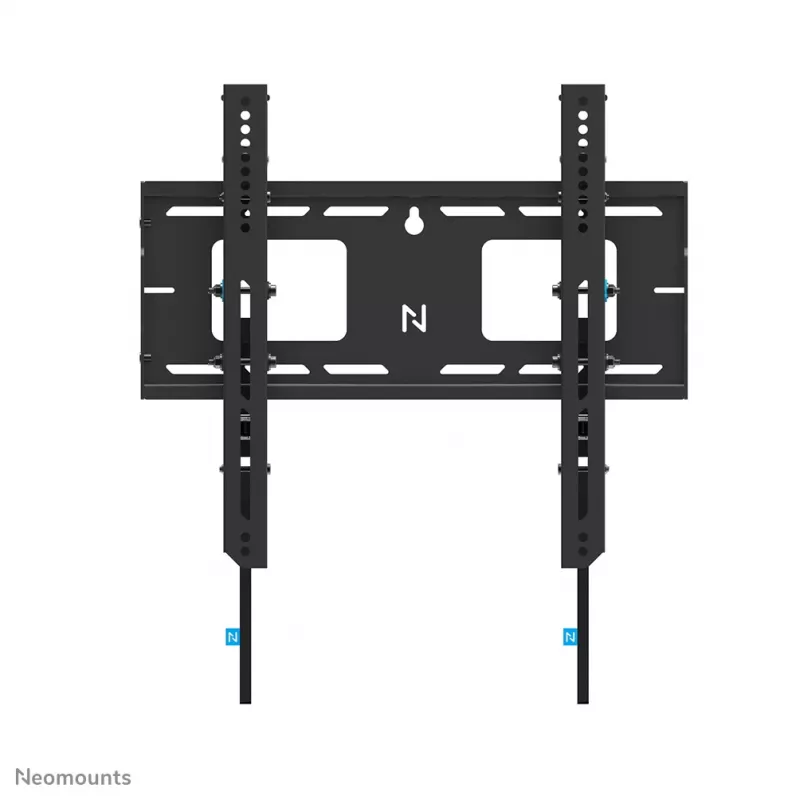

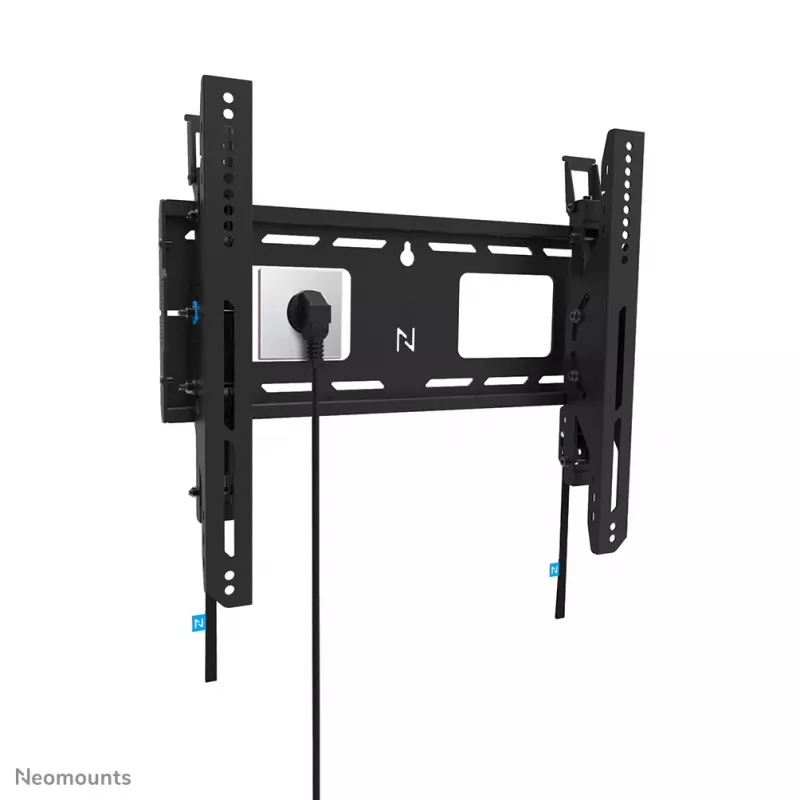

The Neomounts WL35-750BL14 LEVEL is a heavy-duty tiltable wall mount designed for securely mounting interactive or heavy displays up to 75" with a maximum load of 100 kg. It supports VESA hole patterns from 100x100 to 400x400 mm and has a 93 mm profile distance to the wall. The mount includes adjustable brackets for fine height and level adjustments and a quick-connect wall plate with cut-outs and perforations for cable routing, socket access and tidy cable storage.

Advantages

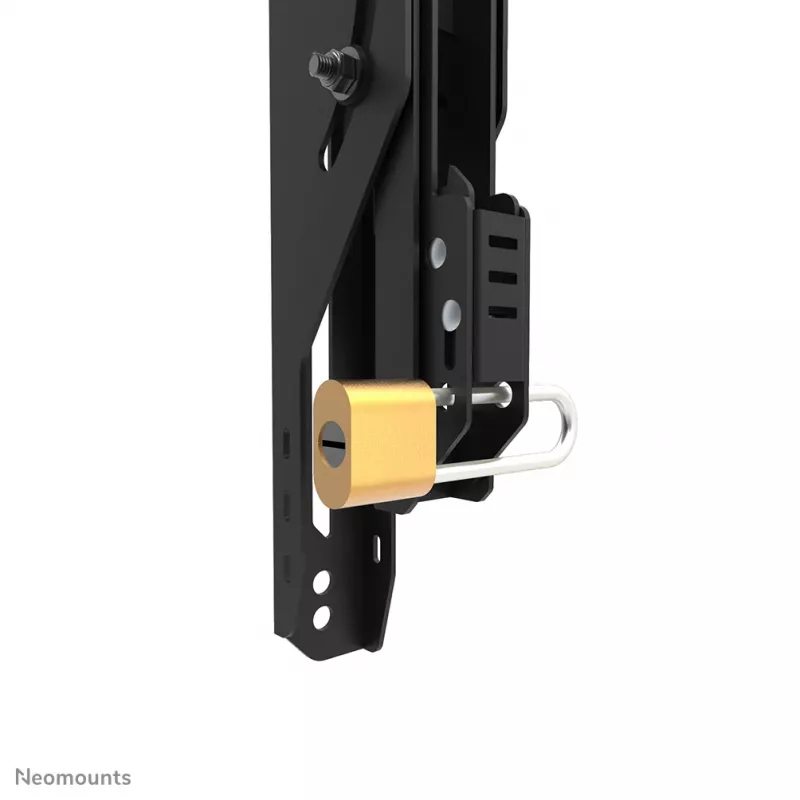

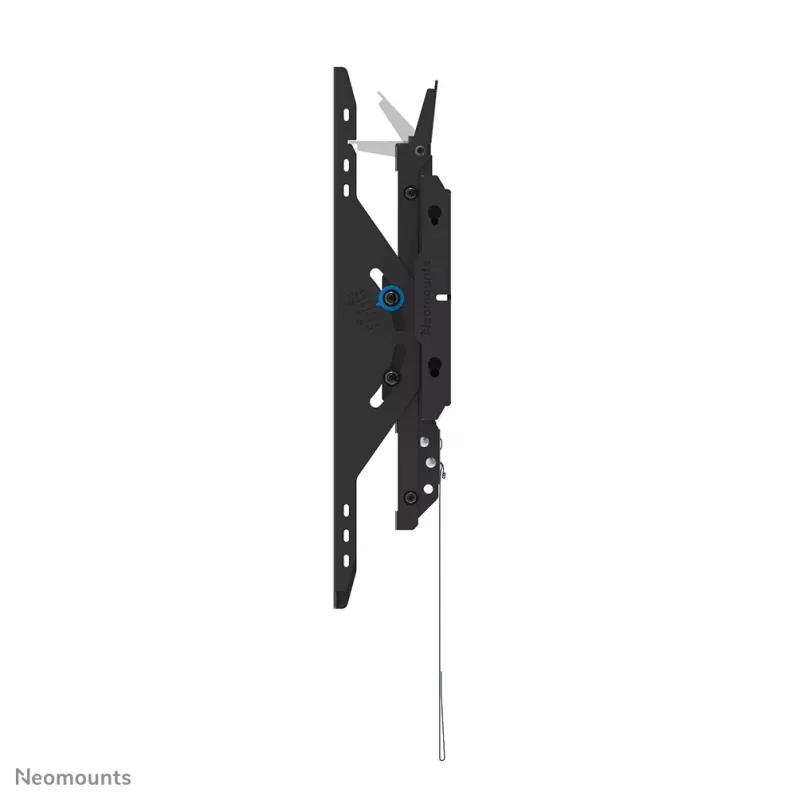

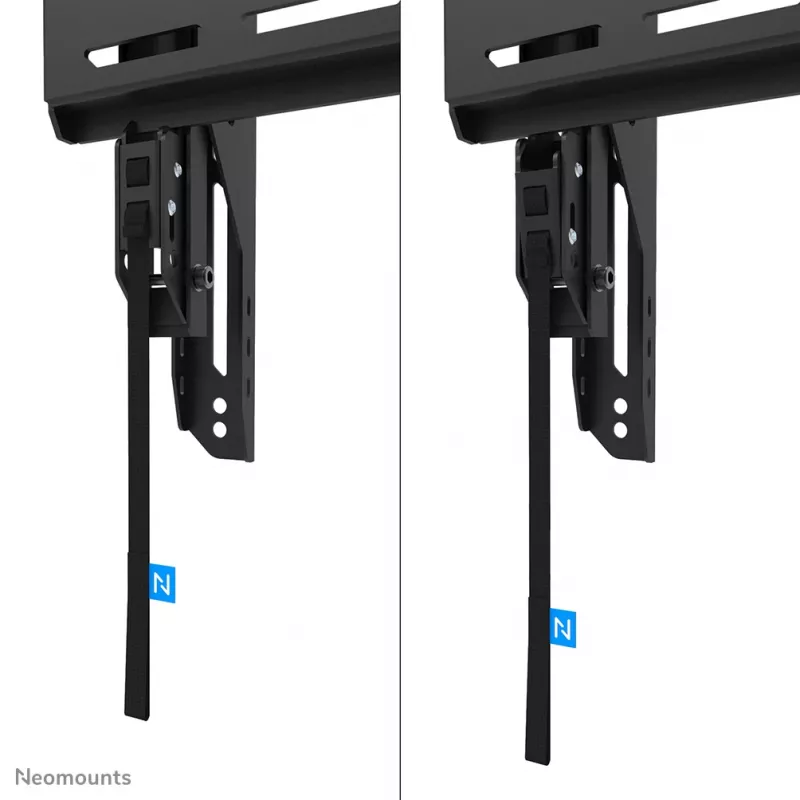

This TV wall mount offers toolless tilt adjustment of +15° / -15°, a sturdy high-profile wall plate engineered for stability on uneven surfaces, and 10 mm individual bracket adjustment for precise levelling. The integrated pull & release system enables safe and fast attaching and detaching of the display, while the tilt-lock prevents upward movement during installation. A bracket padlock point allows additional security (padlock not included).

Suitable for

• Mounting interactive or high-weight screens from 32" to 75"
• Displays with VESA 100x100 to 400x400 mm patterns
• Installations that require a slim 9.3 cm profile and cable management
• Environments needing secure mounting with optional padlock protection

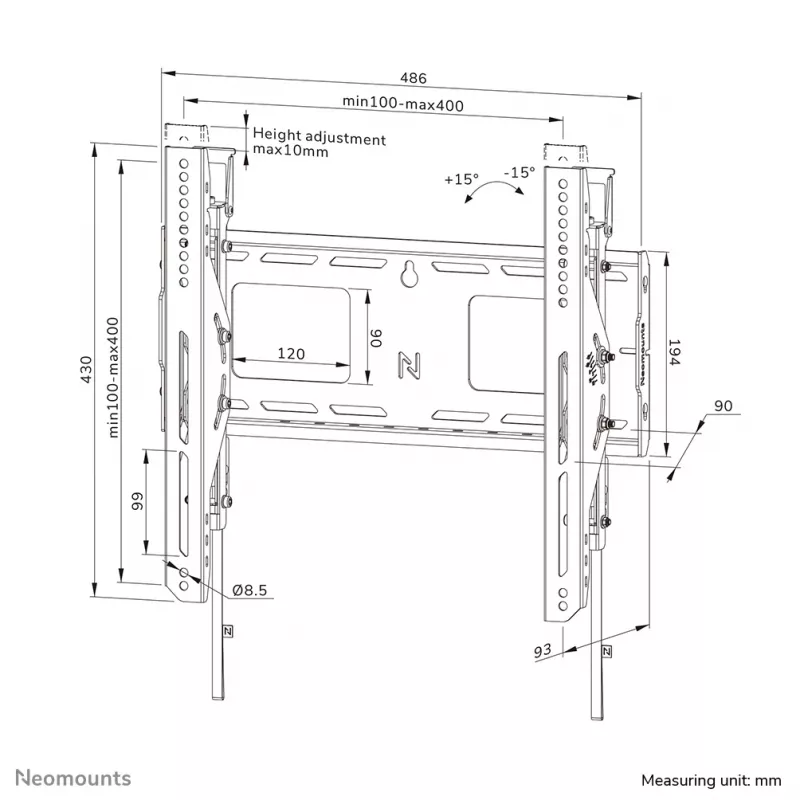

Key specifications

• Maximum screen size: up to 75"
• Maximum load capacity: 100 kg
• VESA compatibility: 100x100 to 400x400 mm

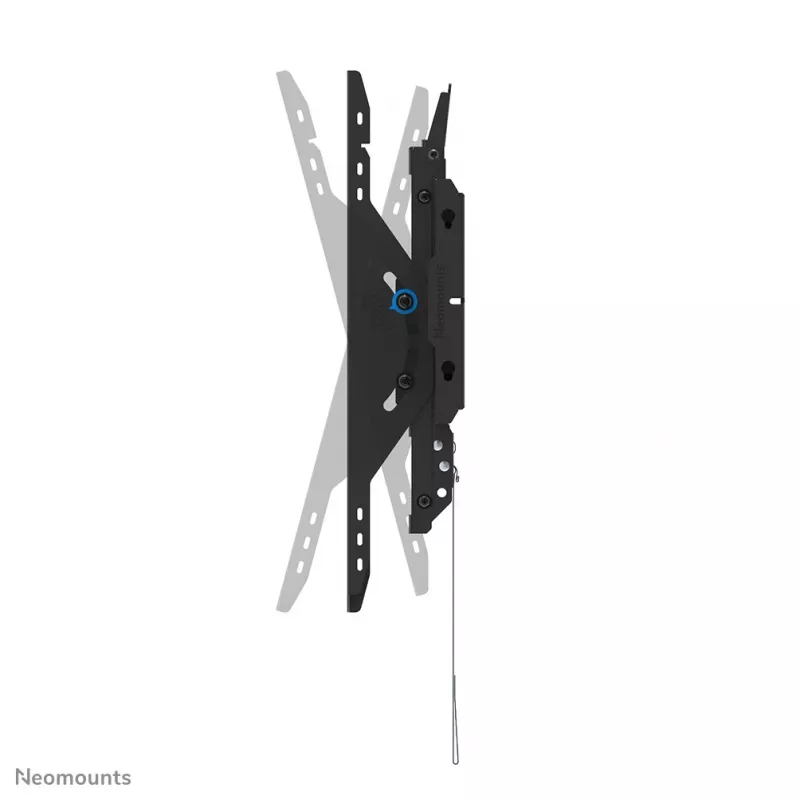

• Tilt range: +15° / -15° (toolless)

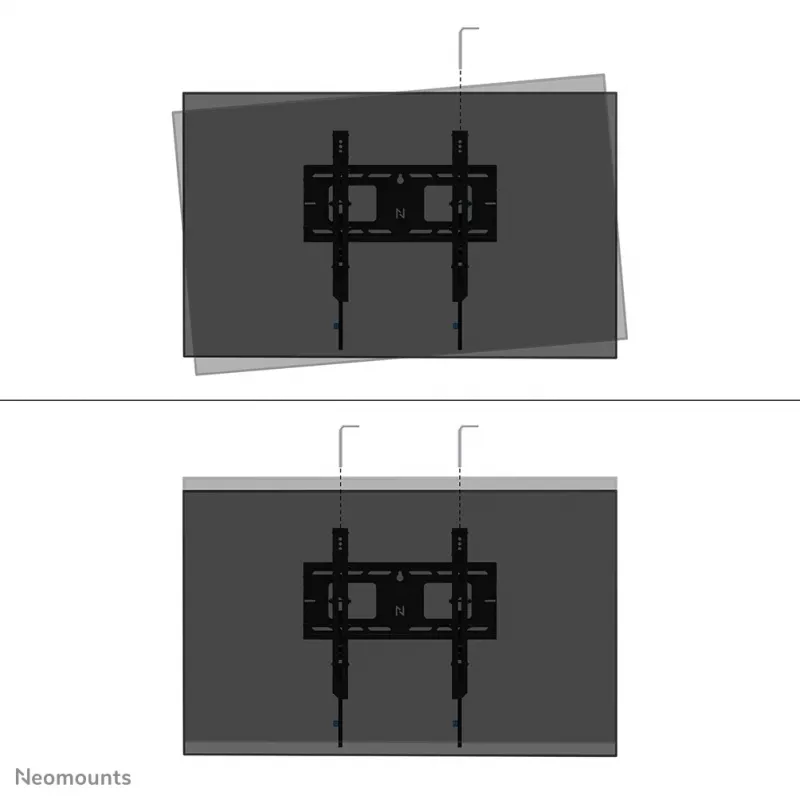

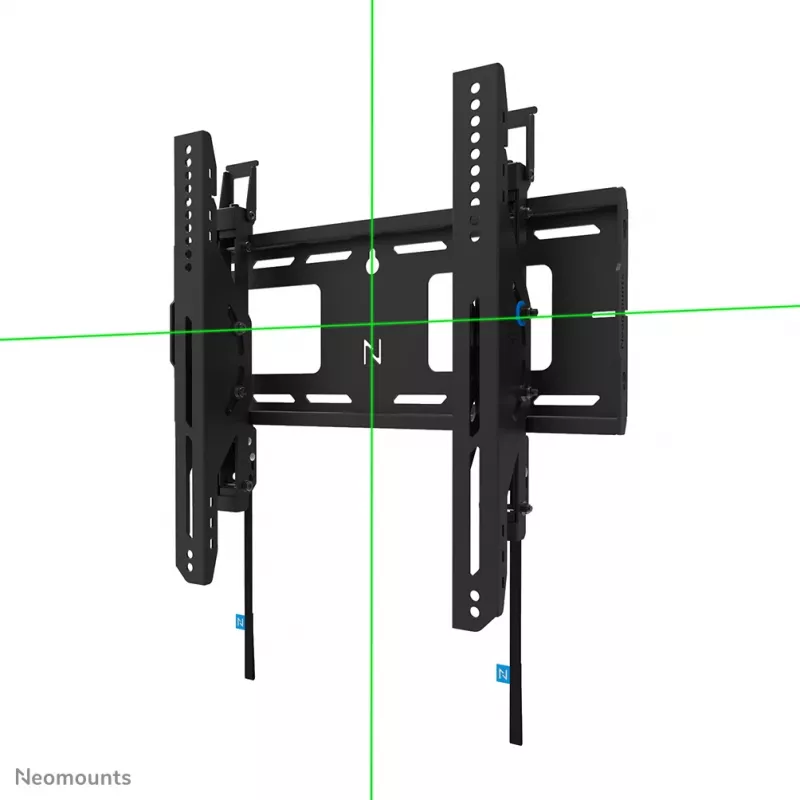

• Height/levelling adjustment: up to 10 mm
• Distance to wall (profile): 9.3 cm
• Finish: black
• Model / MPN: WL35-750BL14
• EAN: 8717371443542

How to use

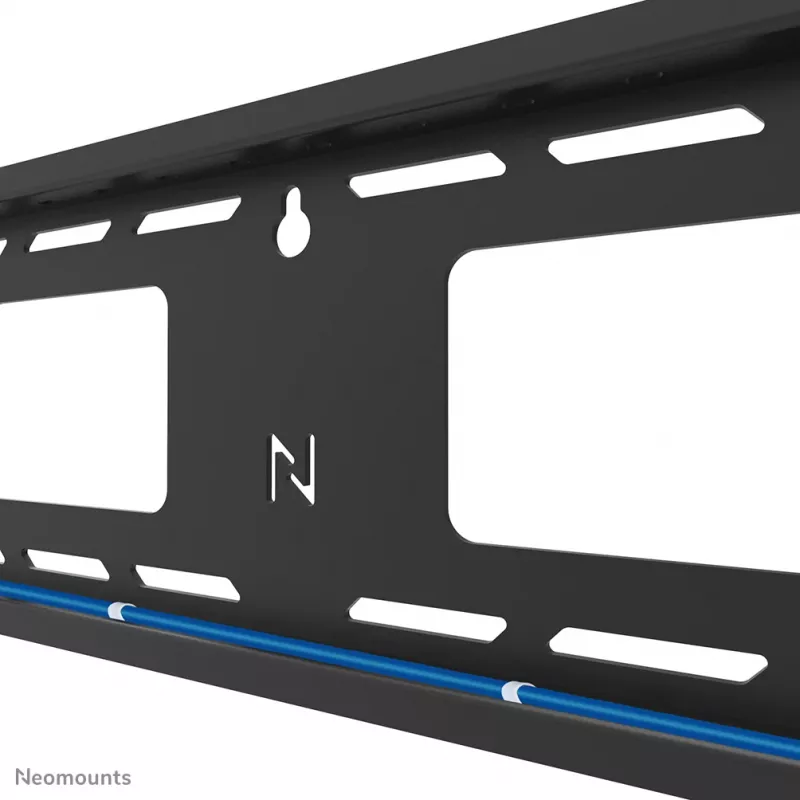

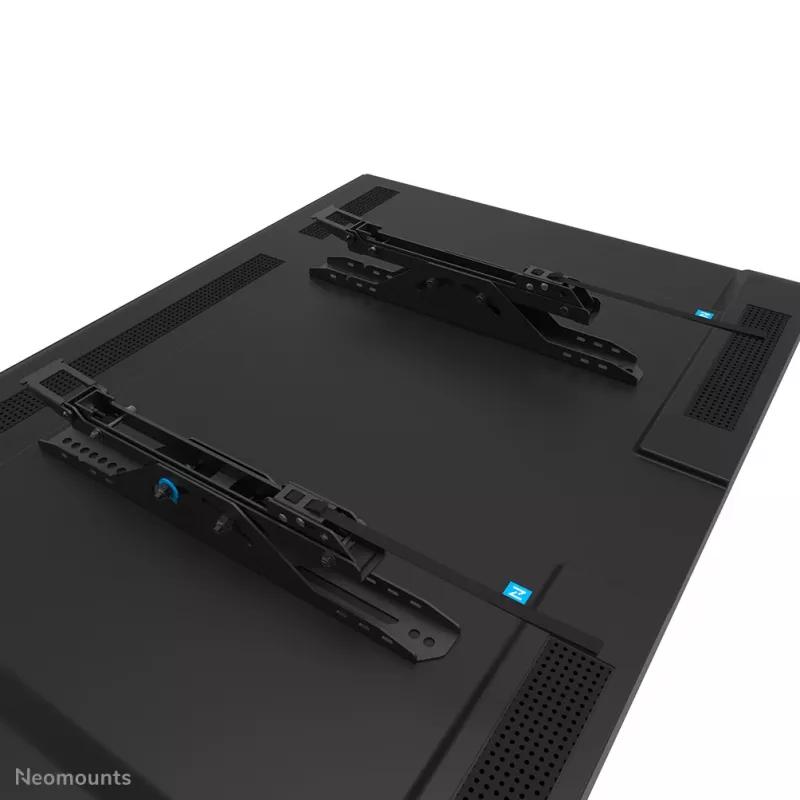

Attach the quickly connectable wall plate to a suitable load-bearing wall following the specified VESA positions and local mounting guidelines. Fit the adjustable brackets to the display and hang the screen onto the wall plate using the pull & release system. Adjust the tilt to the desired angle (+15° / -15°) and use the 10 mm bracket adjustments to level the display. Route cables through the wall plate cut-outs and perforations and store excess cable in the provided space.

Recommendations

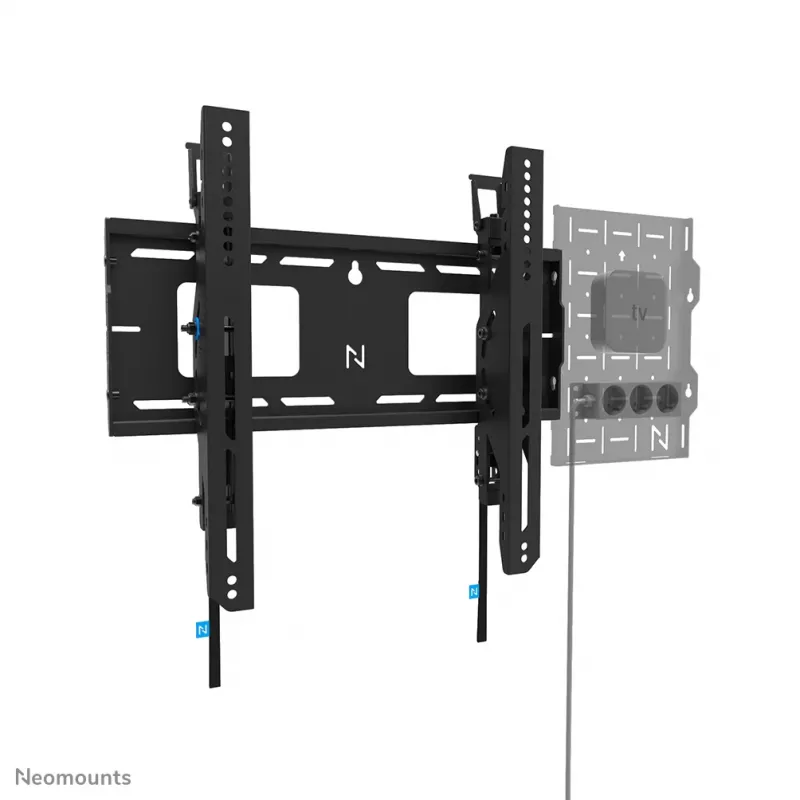

For safe installation, verify the wall type and use appropriate fasteners. Ensure the combined weight of screen and accessories does not exceed 100 kg. Consider using a padlock to secure the bracket if the installation is in a public or unsupervised area. An optional AV-rack can be mounted to the left or right of the bracket for additional equipment storage.
