Neomounts SPEAKER-W100 Speaker holder - universal - full motion

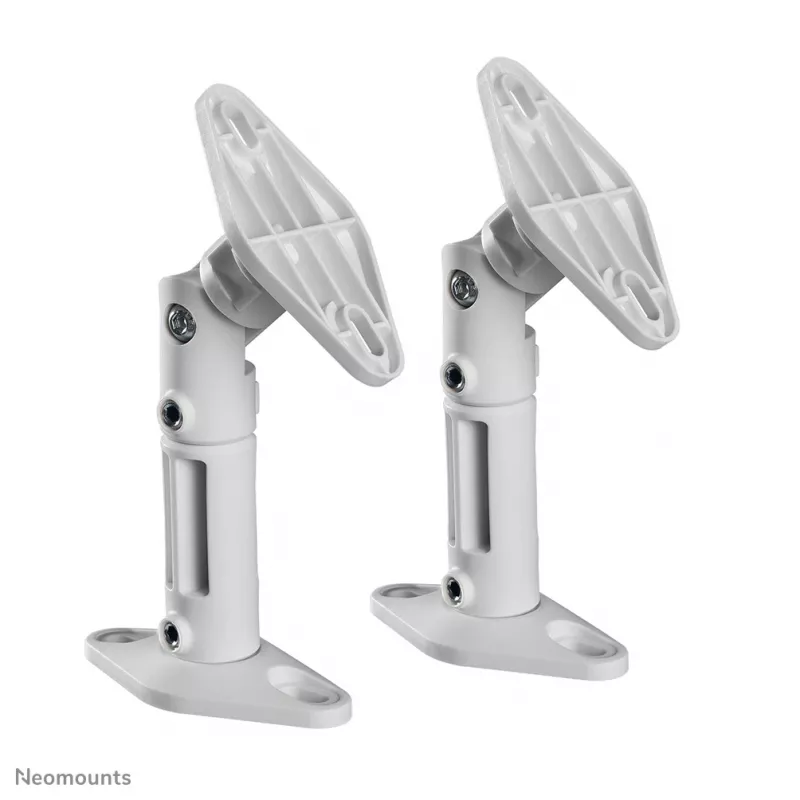

The Neomounts SPEAKER-W100 is a set of two speaker mounts designed for secure wall or ceiling installation. It supports speakers up to 3.5 kg and features adjustable width (0–86 mm), manual height and depth adjustment, and a minimum distance to the wall of 14 cm. Made of durable plastic and weighing 300 g per bracket, the SPEAKER-W100 includes all necessary installation materials and can be converted between wall and ceiling mounting.

Advantages

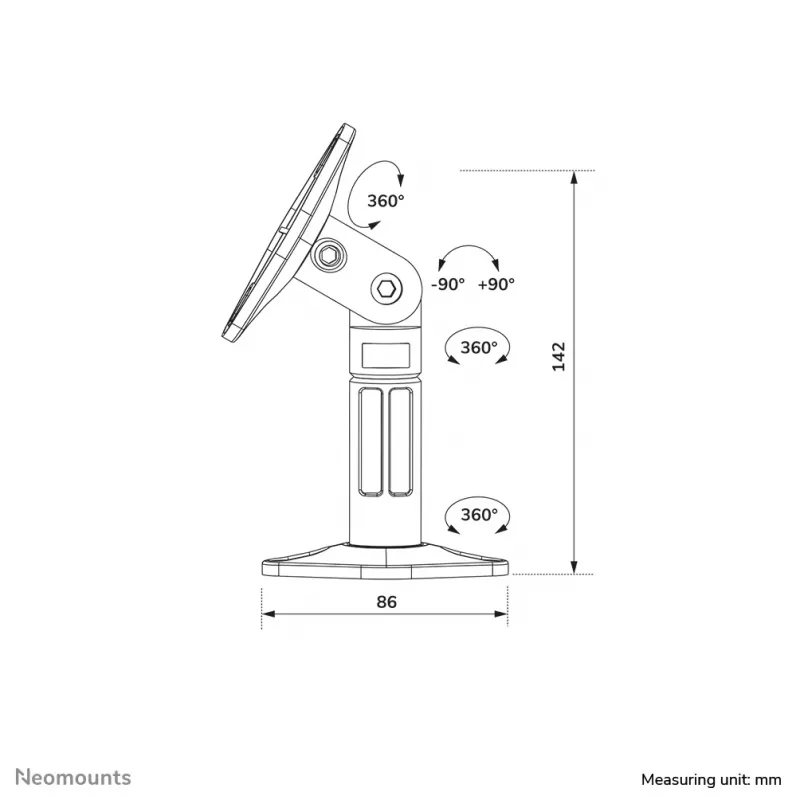

The mount provides wide articulation with tilt (180°), rotate (360°) and swivel (360°) capabilities and four pivot points to achieve precise speaker positioning. Its compact, lightweight design simplifies handling and installation while the included hardware eliminates the need for additional purchases. The bracket’s ability to switch between wall and ceiling configuration increases installation flexibility.

Suitable for

• Mounting small to medium bookshelf or satellite speakers indoors
• Space-saving placement on ceilings in rooms with limited floor area
• Adjustable positioning for home audio, office background music, or meeting rooms

Key specifications

• Maximum weight capacity: 3.5 kg
• Bracket weight: 0.3 kg (per bracket)
• Width adjustment range: 0–86 mm
• Minimum distance to wall: 14 cm
• Material: plastic
• Colour: white

How to use

Choose the desired mounting location on a solid wall or ceiling and mark the fixing points using the bracket as a template. Secure the bracket with the supplied hardware, adjust the width to fit the speaker, then attach the speaker and set the angle using the tilt, rotate and swivel movements. Fine-tune height and depth manually to achieve the desired listening direction. Verify that all fastenings are tight before placing the speaker under continuous load.

Recommendations

Install the speaker mount on a load-bearing surface and do not exceed the 3.5 kg maximum load. For safety, check screws and connections periodically and use appropriate wall plugs for the type of wall material.
