Motherboard MSI Z890 Gaming WiFi — Intel Z890 ATX, LGA1851 (S1851), DDR5, 4x DIMM, Wi‑Fi 7, 2.5GbE, 3x M.2

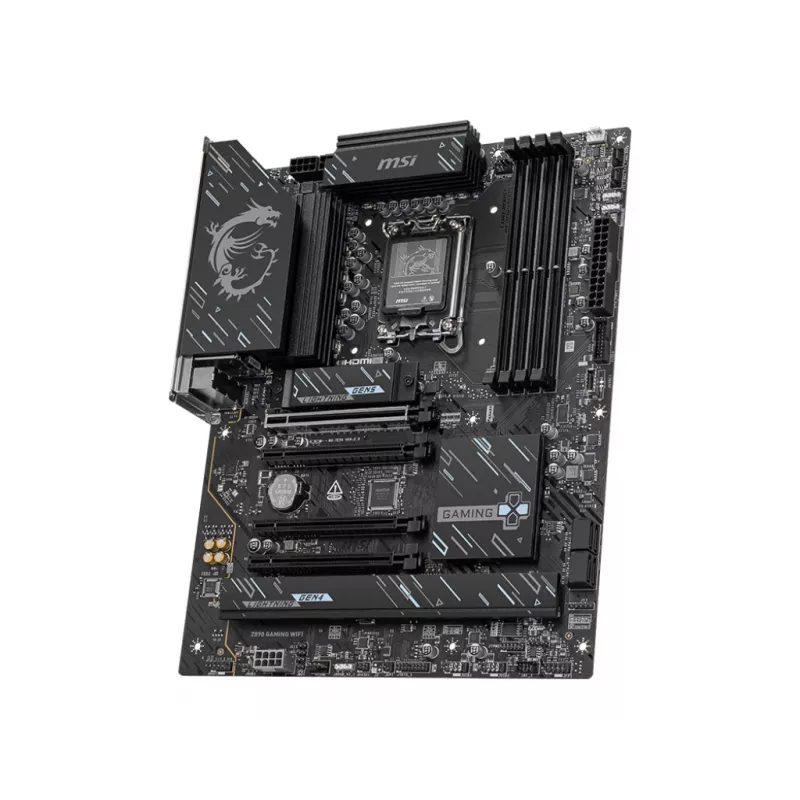

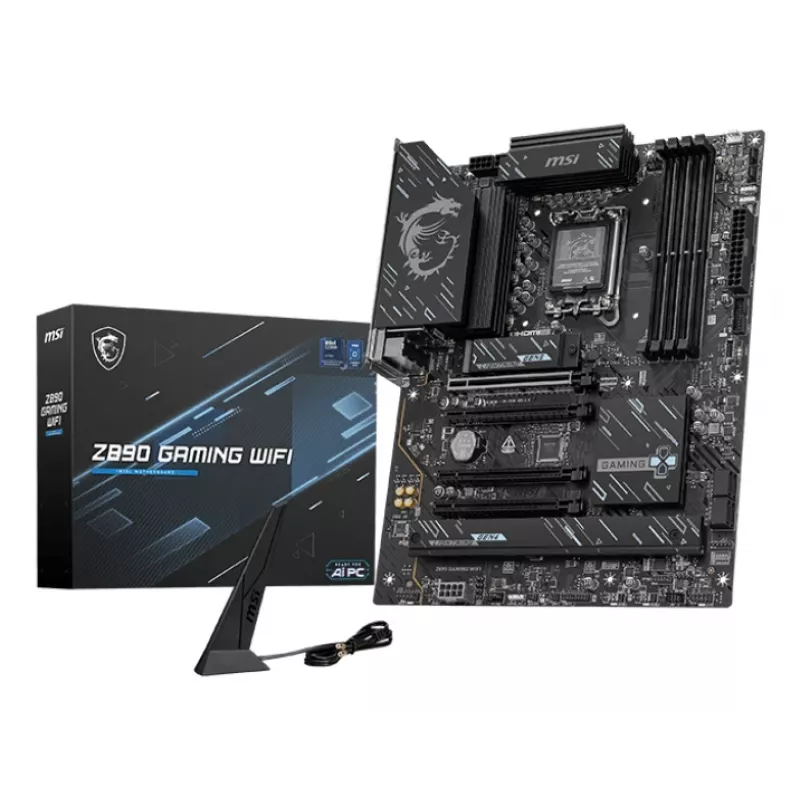

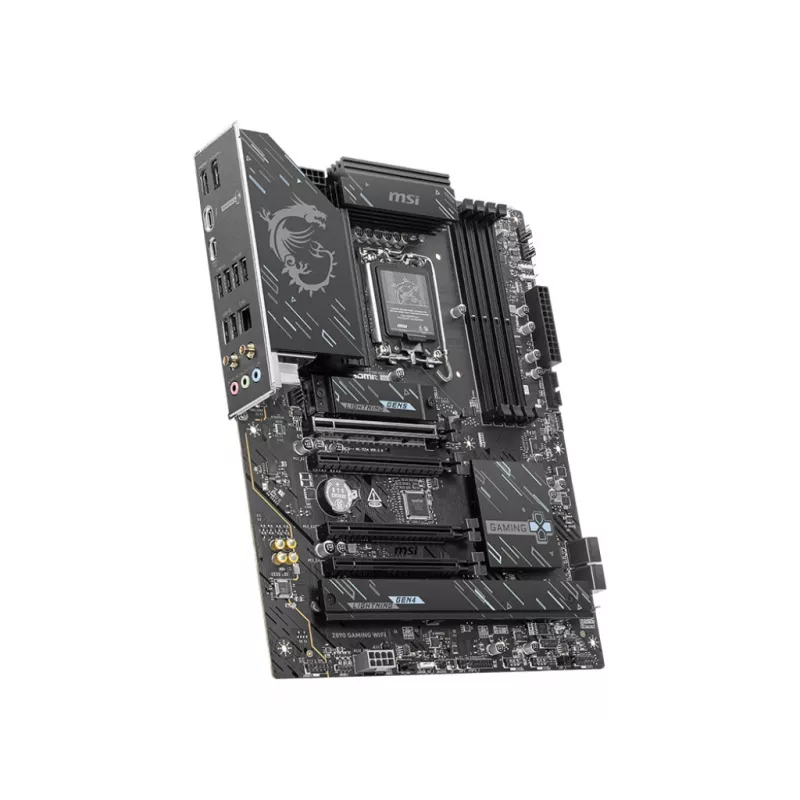

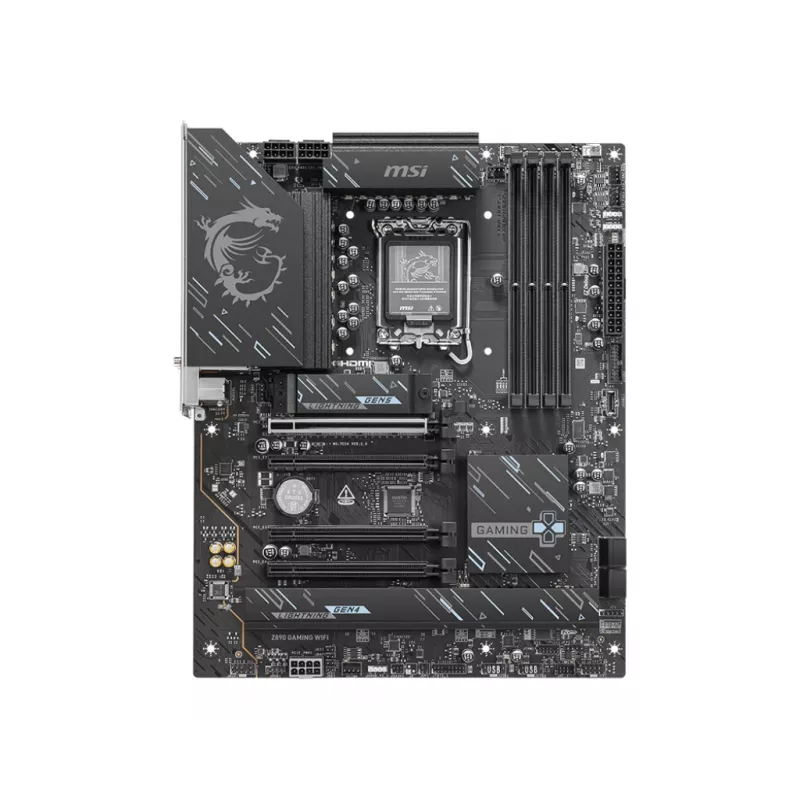

MSI Z890 Gaming WiFi is an ATX motherboard based on the Intel Z890 chipset with an LGA1851 (Socket V1) processor socket. It supports Intel Core Ultra (Series 2) processors and up to 256 GB of DDR5 memory across four DIMM slots in dual‑channel configuration. The board integrates Wi‑Fi 7 (802.11be), Bluetooth 5.4, 2.5 Gigabit Ethernet, three M.2 slots and four SATA III connectors, plus onboard HDMI 2.1, DisplayPort 1.4 and a Thunderbolt-capable port for display and high‑speed connectivity.

Advantages

The motherboard provides high memory frequency support (up to 8800 MHz) and non‑ECC DDR5 compatibility for performance‑oriented systems. A comprehensive rear I/O array includes multiple USB Type‑A ports, a USB 3.2 Gen2x2 Type‑C port and legacy/modern display outputs. Integrated networking combines Wi‑Fi 7 and 2.5GbE for fast wired and wireless connections, while RAID support and three M.2 slots offer versatile storage configurations. Audio is handled by a multi‑channel Realtek ALC897 codec.

Suitable for

• High‑performance gaming builds
• Content creation and video editing systems
• Workstations requiring fast LAN and Wi‑Fi
• Systems needing multiple M.2 drives or RAID setups

Key specifications

• Form factor: ATX (304.8 × 243.8 mm)
• Chipset: Intel Z890
• CPU socket: LGA1851 (Socket V1), supports Intel Core Ultra (Series 2)
• Memory: DDR5, 4 DIMM, dual‑channel, up to 256 GB, up to 8800 MHz, non‑ECC, unbuffered
• Storage interfaces: 3 × M.2, 4 × SATA III
• RAID: supported (RAID 0 listed)
• Expansion: 4 × PCIe x16 slots
• Networking: Wi‑Fi 7 (802.11be), Bluetooth 5.4, 2.5 Gigabit Ethernet
• Audio: Realtek ALC897, 7.1 channels

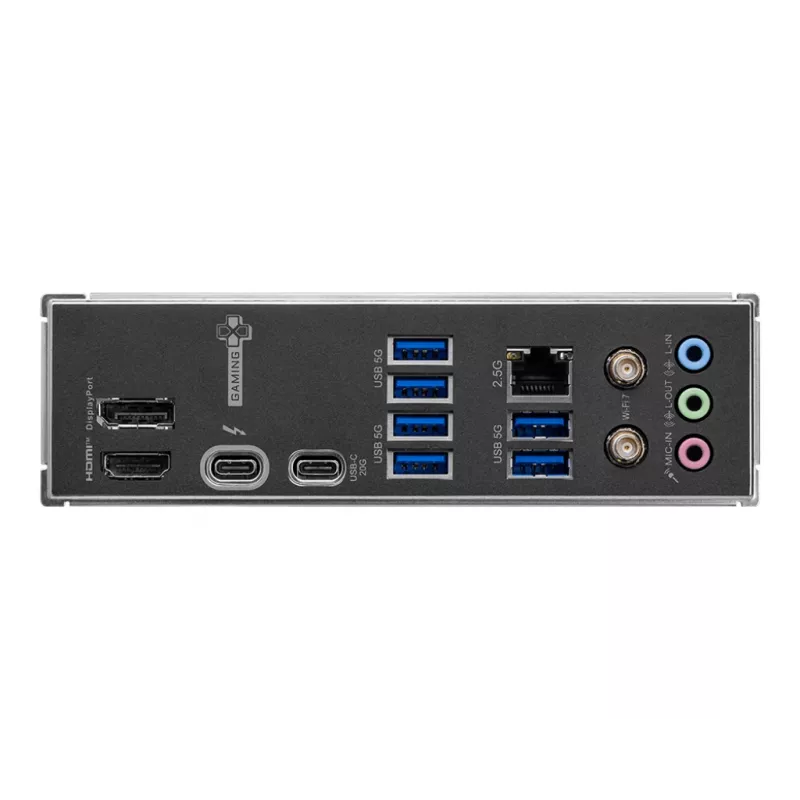

• Rear I/O: 1 × USB 3.2 Gen2x2 Type‑C, 6 × USB 3.2 Gen1 Type‑A, 1 × HDMI 2.1, 1 × DisplayPort 1.4, 1 × RJ‑45, 1 × Thunderbolt
• Internal connectors: 1 × 8‑pin EPS, 1 × 24‑pin ATX, 4 × SATA III, 4 × USB 2.0 headers

How to use

Install the motherboard into an ATX‑compatible case and fit a compatible LGA1851 processor following the CPU and cooler manufacturer’s instructions. Populate up to four DDR5 DIMMs in recommended slot order for dual‑channel operation and connect power using the 24‑pin ATX and 8‑pin EPS connectors. Mount M.2 and SATA drives as required, connect front‑panel and USB headers, then attach display and network peripherals to the rear I/O. Flash or configure BIOS settings as needed for memory frequencies, storage modes and RAID configuration before installing an operating system such as Windows 11.

Recommendations

For stable high‑frequency DDR5 operation and optimal performance, use matched DIMMs from the motherboard’s qualified vendor list and ensure adequate CPU cooling and a high‑quality power supply. When configuring multiple NVMe drives, verify thermal clearance and enable RAID in BIOS only after backing up data.
