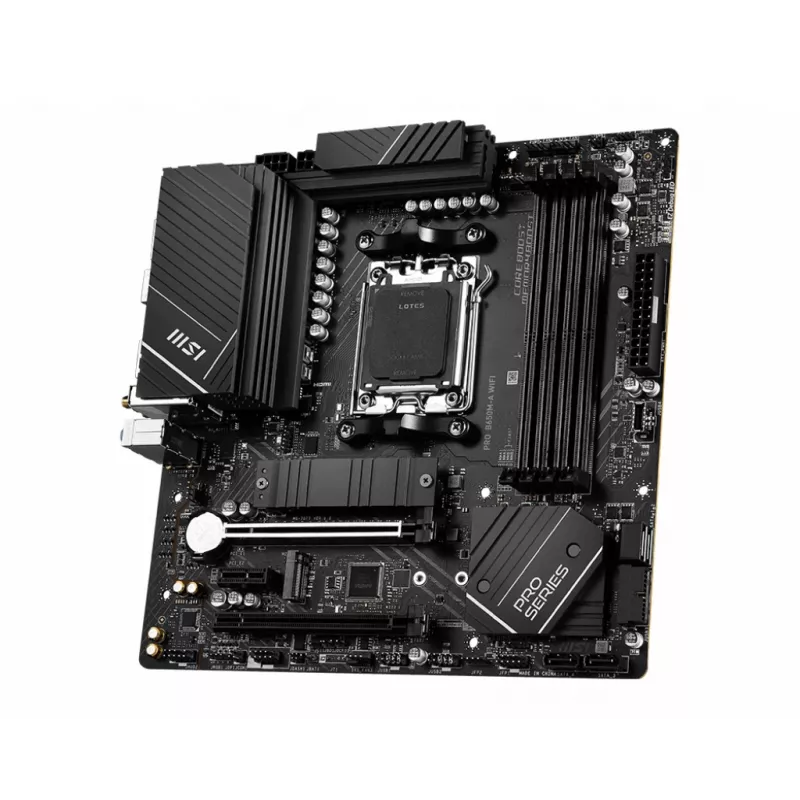

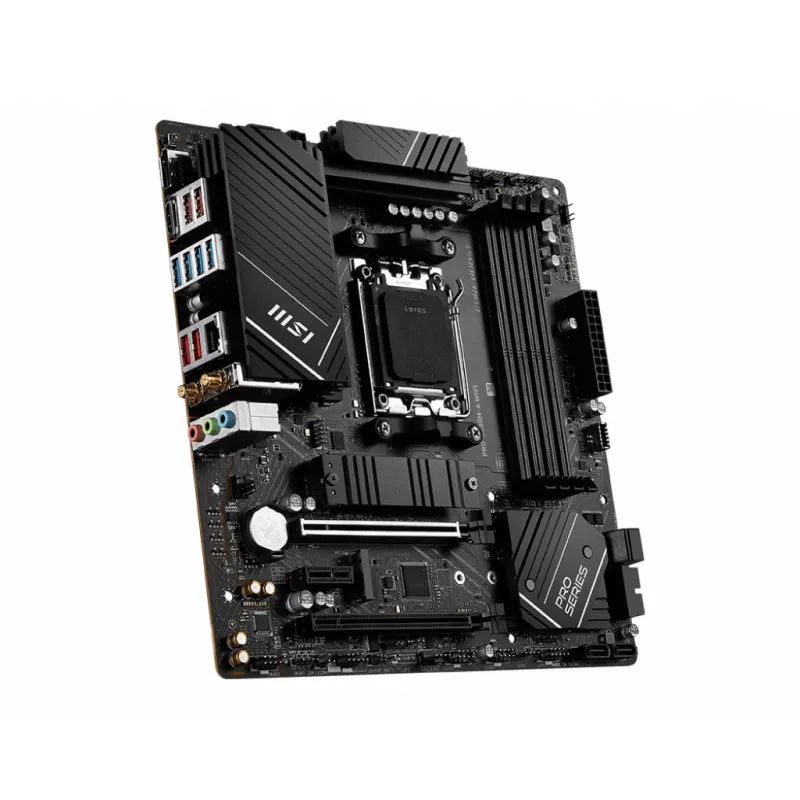

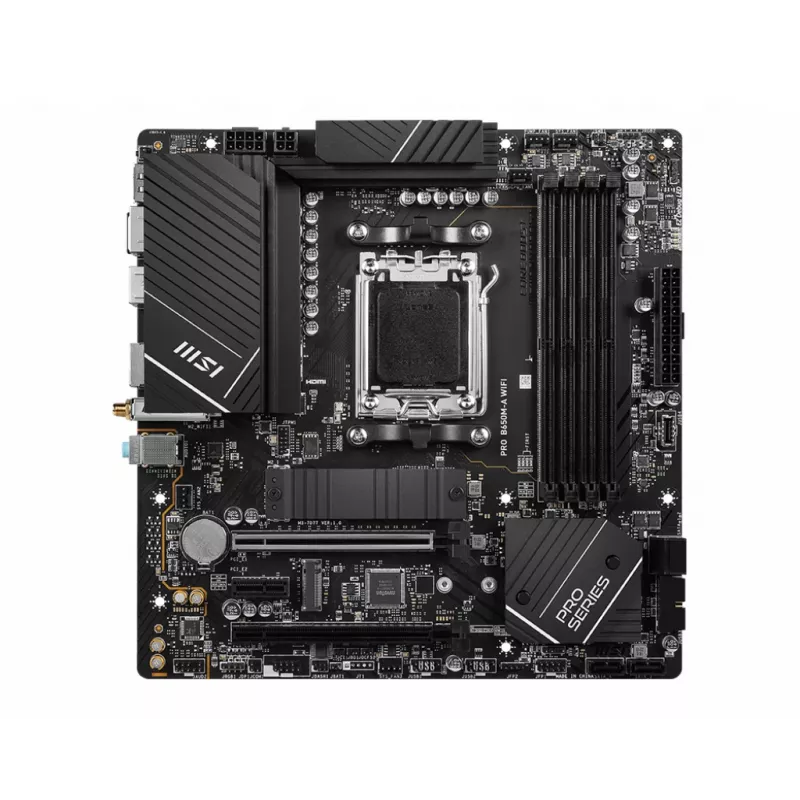

MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX

MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
36 mo.
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
MSI PRO B650M-A WIFI AMD B650 Socket AM5 micro ATX
R3,486
BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist... Read More
Stock Out Of StockNo Stock Code 2445108 Brand MSI Model 7D77-001R Warranty 3 Years

Shipping & Returns

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

MSI PRO B650M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Key Highlights
  • AMD Socket AM5 AMD Ryzen 7000 Series
  • PC micro ATX AMD B650 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 Maximum internal memory: 128 GB
  • M.2, SATA
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
Specifications
ATX Power connector (24-pin)
Yes
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Bluetooth
Yes
Bluetooth version
5.2
Chassis intrusion connector
Yes
Compatible processor series
AMD Ryzen 7000 Series
Component for
PC
CPU fan connector
Yes
Depth
243.8 mm
DVI-D ports quantity
0
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
LAN controller
Realtek RTL8125-BG
Line-in
Yes
Maximum internal memory
128 GB
Microphone in
Yes
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA III connectors
0
PC health monitoring
Fan
PCI Express x16 (Gen 3.x) slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
RAID levels
0, 1, 10
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, SATA
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
USB 2.0 connectors
4
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Width
243.8 mm
Windows operating systems supported
Windows 11 x64

Manual

Open Manual

Leaflet

Open Leaflet
Price history is not available yet
We are still collecting enough daily price data for this product.

Independent reviews by tech media

techspot.comSteven

“Today is the day when we can finally present to you the results of our extensive AMD B650 motherboard testing. It's been a massive undertaking indeed. In total, we've tested 35 boards, a task that spanned several months, but it's finally complete.”

Read the full review at techspot.com →
