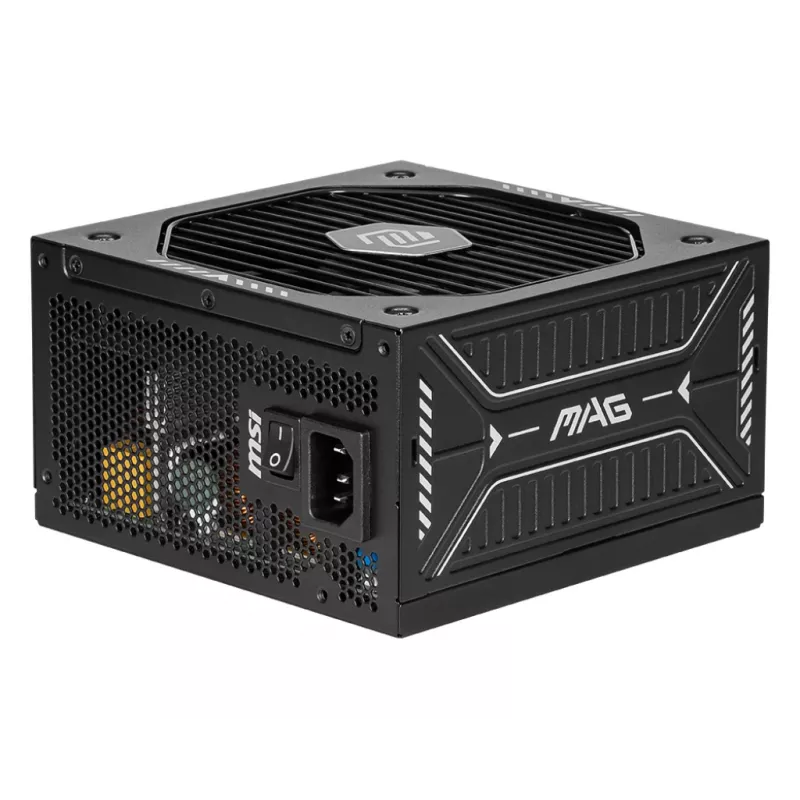

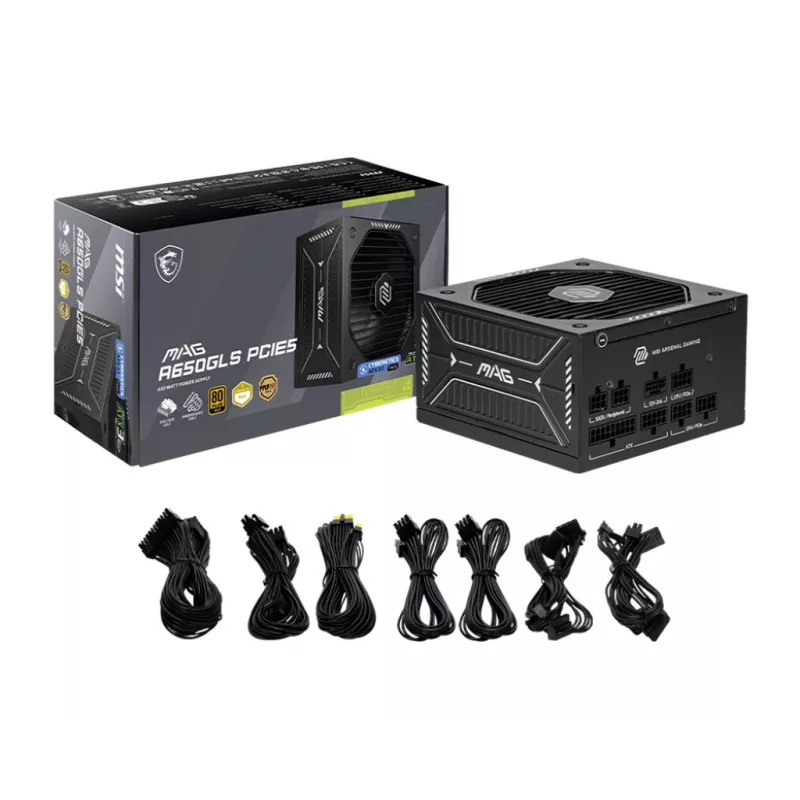

MSI MAG A650GLS PCIE5 power supply unit 650 W 24-pin ATX ATX Black

The MSI MAG A650GLS PCIe 5.0 650W is an ATX power supply engineered for desktop and gaming PCs that require a reliable mid-range power source. It delivers stable multi-rail power distribution and supports the PCIe 5.0 standard for modern graphics cards and motherboards. With an 80 PLUS Bronze efficiency rating, the unit balances performance and energy consumption while integrated protection features safeguard system components. The design includes standard connectors for current builds and a cooling solution tuned for low-noise operation.

Advantages

The unit provides consistent voltage delivery across multiple rails, reducing stress on connected components during load changes. The PCIe 5.0-ready interface ensures compatibility with next-generation GPUs without the need for adapters. 80 PLUS Bronze efficiency lowers wasted heat and improves power usage compared to non-certified supplies. Built-in protections such as over-voltage, under-voltage, over-current and short-circuit safeguards protect the system, while the included cooling fan is optimized for quiet operation under typical desktop loads.

Suitable for

• Mid-range gaming desktop builds
• Home and office PCs requiring dependable ATX power delivery
• System upgrades to support PCIe 5.0-capable graphics cards
• Workstations with moderate power demands

Key specifications

• Form factor: ATX
• Rated output: 650 watts continuous
• Efficiency certification: 80 PLUS Bronze
• PCIe standard support: PCIe 5.0 compatible connectors
• Power topology: multi-rail output design

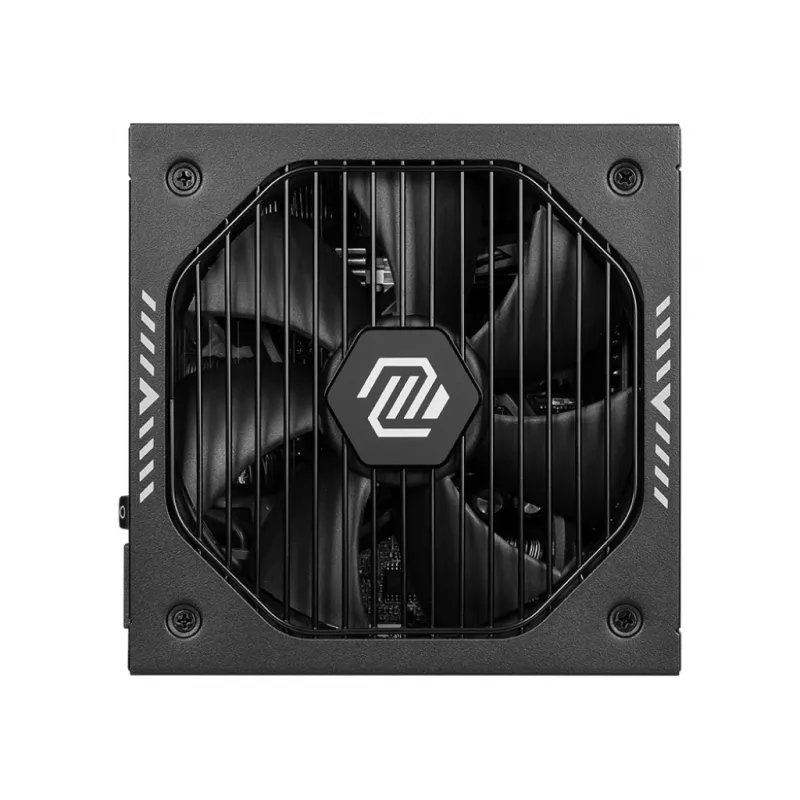

• Cooling: internal fan for active thermal management and low noise
• Protections: over-voltage protection (OVP), under-voltage protection (UVP), over-current protection (OCP), short-circuit protection (SCP)

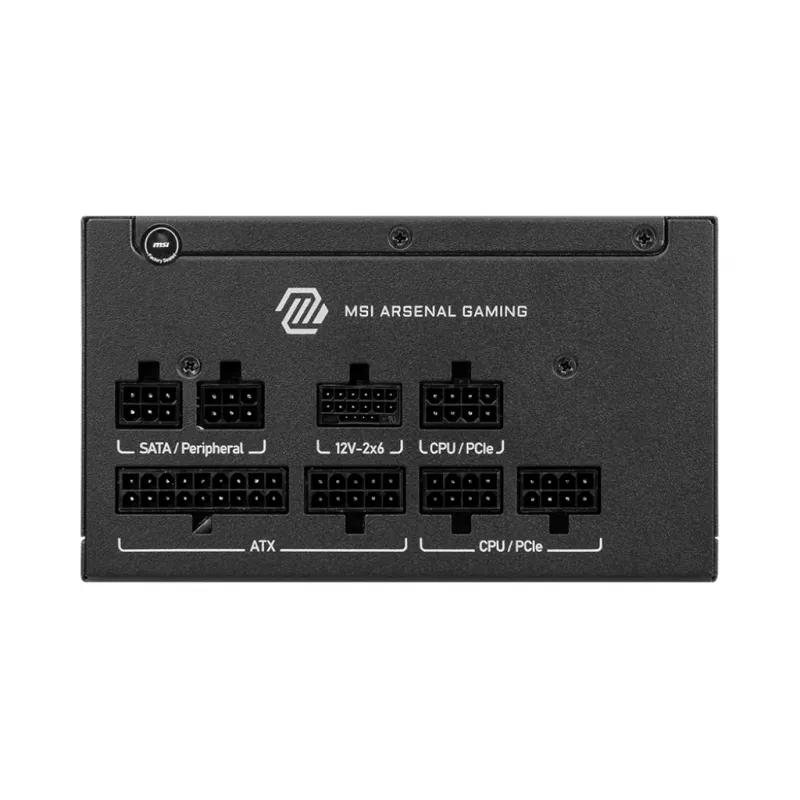

• Connector set: standard motherboard 24-pin, CPU 4+4-pin, PCIe connectors for GPUs, SATA and peripheral power connectors

How to use

Install the MSI MAG A650GLS in a compatible ATX case by securing it to the PSU mounting area and connecting the main 24-pin motherboard cable along with the CPU 4+4-pin power connector. Attach the appropriate PCIe power connectors to the graphics card, and connect SATA or peripheral cables to storage devices and accessories as required. Ensure the PSU switch is set to the correct mains voltage if applicable, connect the AC power cord, and power on the system. Verify stable operation under typical loads and confirm cooling airflow is not obstructed.

Recommendations

For reliable performance, pair this 650W supply with systems whose combined component power draw stays within the unit’s rated capacity plus a safety margin. Maintain good case airflow to support the PSU fan, periodically check cable seating, and follow manufacturer guidance for grounding and mains connections.
