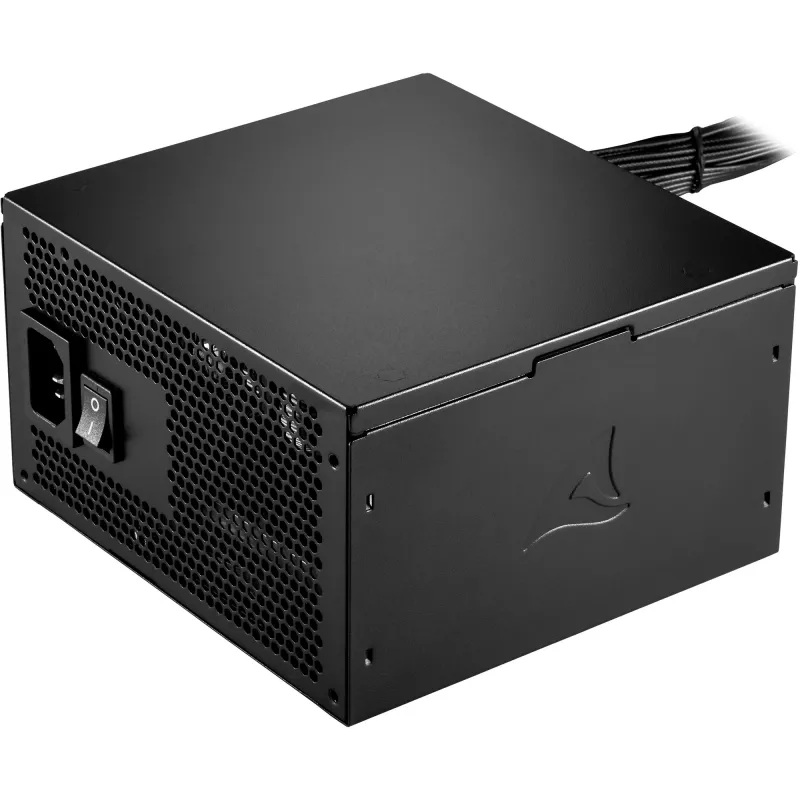

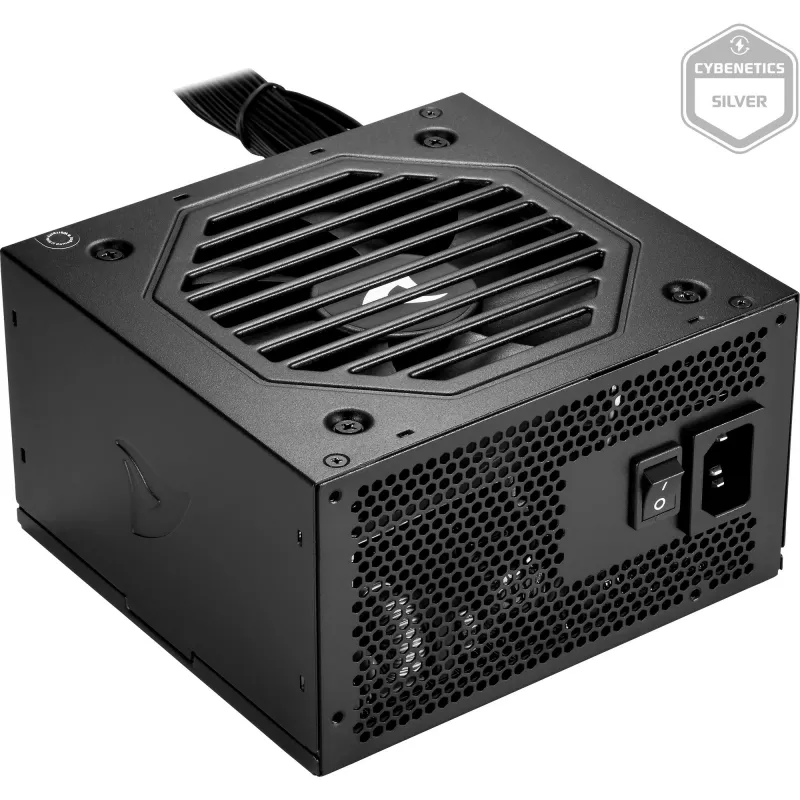

Power Supply Unit Sharkoon Rebel P10 650 W

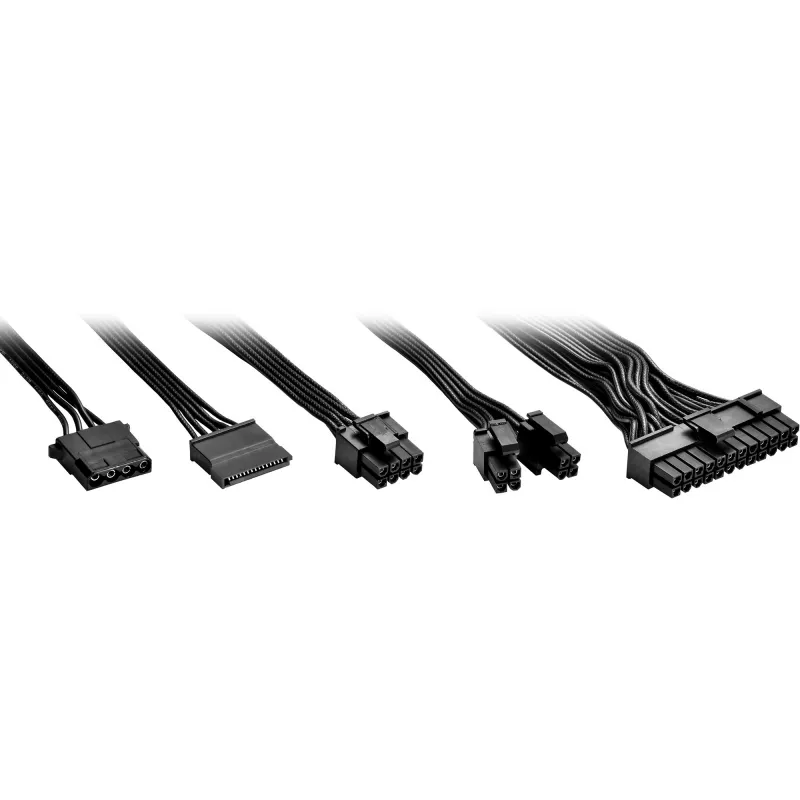

The Sharkoon Rebel P10 650 W power supply unit delivers stable 650 watts of continuous output for desktop PCs. Designed with a standard 24-pin ATX main connector and multiple peripheral connectors, it supports common consumer motherboard and component configurations. The unit accepts an AC input voltage range of 100–230 V at 50/60 Hz and uses an active cooling system with a 120 mm fan built on sleeve bearing technology. Finished in black, the compact PSU balances performance and straightforward installation for everyday systems.

Advantages

The Rebel P10 offers reliable power delivery up to 650 W suitable for single-GPU mainstream builds. Its standard 24-pin ATX connector and practical cable lengths allow flexible routing inside standard mid-tower and compact cases. The integrated 120 mm fan provides continuous airflow for effective heat dissipation while sleeve bearing construction keeps the unit mechanically simple and cost-effective. Broad input voltage compatibility makes the PSU usable in different regions without additional transformers.

Suitable for

• Home and office desktop PCs with mainstream single graphics cards
• Basic gaming builds that do not require high-end multi-GPU or extreme overclocking
• System upgrades where existing cases need a standard ATX 24-pin power supply
• Replacement PSU for older or entry-level desktop systems

Key specifications

• Total continuous power output: 650 W
• Mainboard connector: 24-pin ATX
• AC input voltage: 100–230 V
• AC input frequency: 50/60 Hz

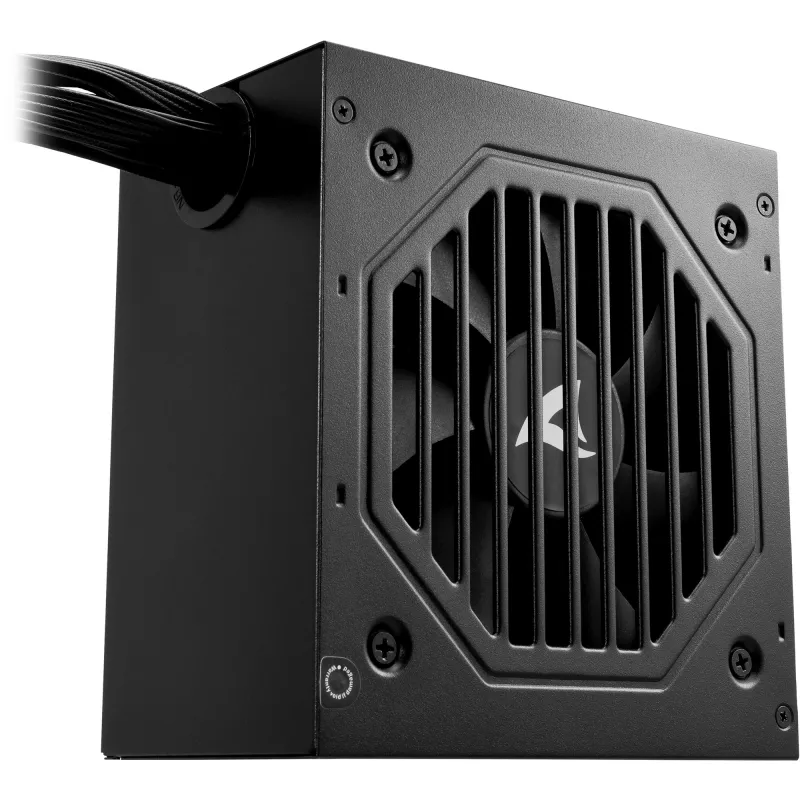

• Cooling: active cooling with 120 mm fan
• Fan bearing type: sleeve bearing
• Motherboard power cable length: 55 cm
• Peripheral (Molex) cable length: 480 mm
• Colour: black
• Weight: 1.5 kg

How to use

Mount the Sharkoon Rebel P10 into a compatible ATX power supply bay following your case manufacturer’s instructions. Connect the 24-pin ATX main connector to the motherboard and attach peripheral connectors to storage drives and other devices as required. Ensure the mains switch is off before connecting the AC power cord to an appropriately rated outlet. After initial assembly, power on the PC and monitor system stability and fan operation during the first boot. Observe proper cable management to maintain airflow and avoid obstructing the fan intake or exhaust.

Recommendations

Use the PSU within its rated total power limit of 650 W and verify component power requirements before installation. Maintain unobstructed airflow around the 120 mm fan, periodically clean dust from vents, and ensure the power source provides stable AC voltage within 100–230 V. For systems with high power demand or multiple high-end GPUs, consider a higher-capacity or higher-efficiency unit.
