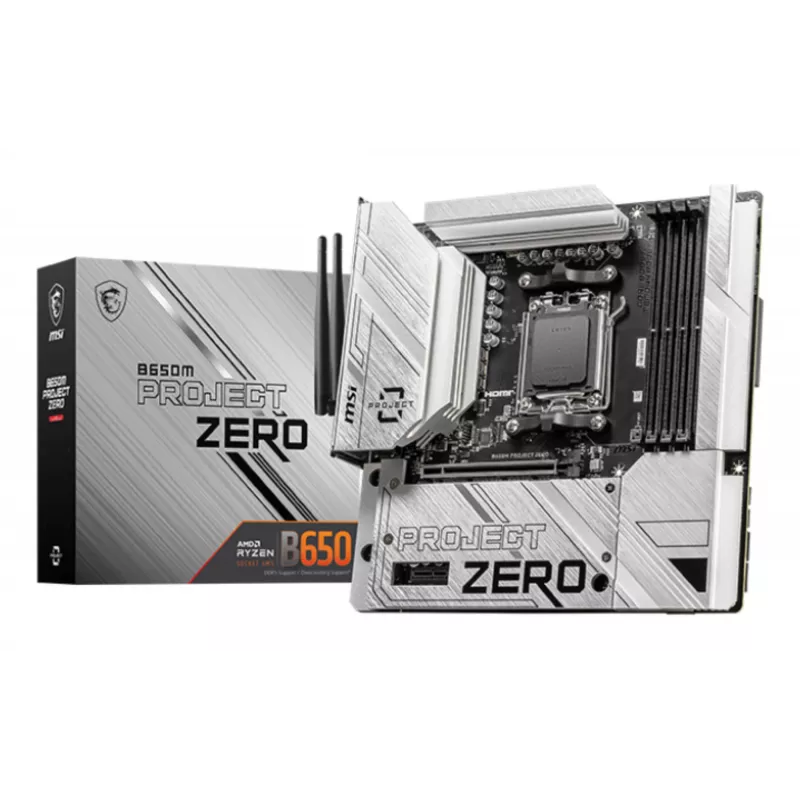

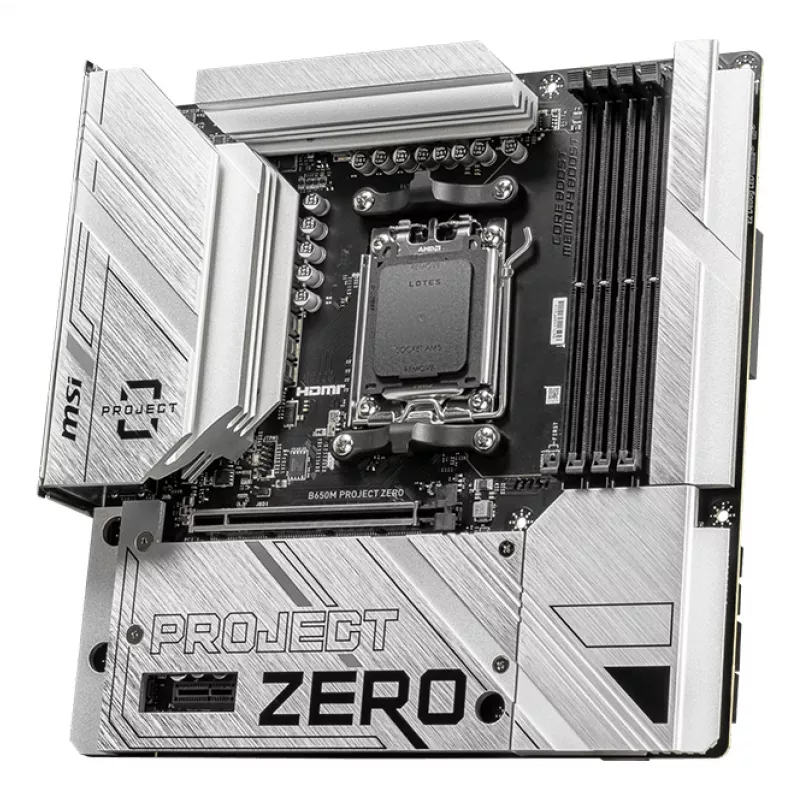

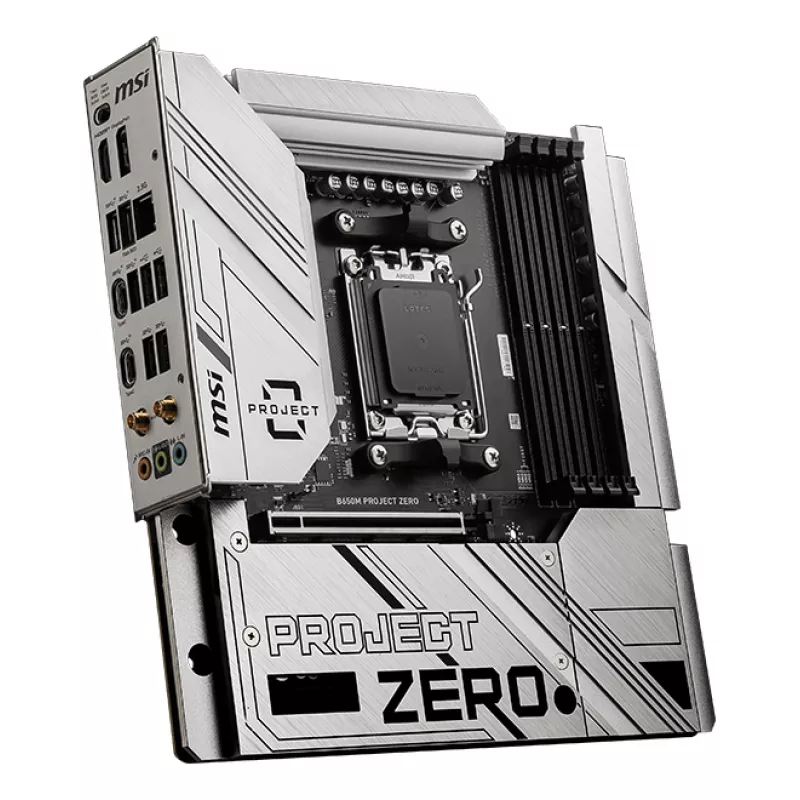

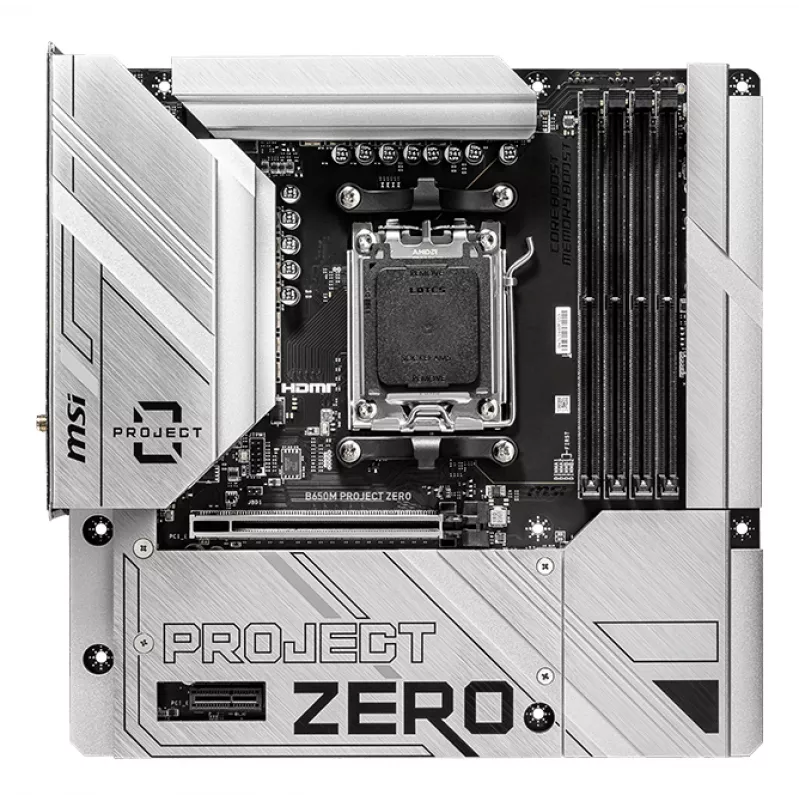

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX

MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
36 mo.
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
R4,769
ABSOLUTE SIMPLICITYB650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.LIGHTNING GEN 4 P... Read More
Stock 1 Code 111194 Brand MSI Model B650M PROJECT ZERO Warranty 3 Years

Shipping & Returns

Estimated delivery Tuesday, October 13
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
ABSOLUTE SIMPLICITY

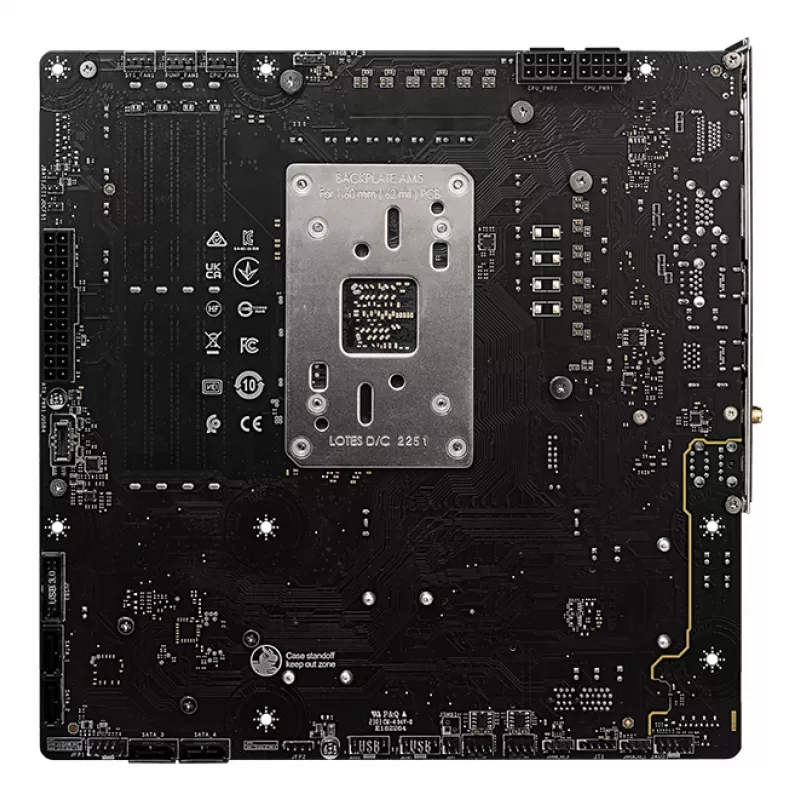

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

MSI B650M PROJECT ZERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Key Highlights
  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7600+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • Audio Boost: Reward your ears with studio grade soun
  • AMD Socket AM5
  • PC micro ATX AMD B650 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 Maximum internal memory: 128 GB
  • HDD & SSD M.2, PCI Express RAID support
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 6.4
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Specifications
ACPI version
6.4
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Bluetooth
Yes
Bluetooth version
5.3
Cables included
SATA
Chassis intrusion connector
Yes
Component for
PC
CPU fan connector
Yes
Depth
243.8 mm
DisplayPort version
1.4
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
Non-ECC
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Front panel audio connector
Yes
Front panel connector
Yes
HDMI ports quantity
1
HDMI version
2.1
Maximum internal memory
128 GB
Maximum internal memory supported by processor
128 GB
Memory channels
Dual-channel
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
Motherboard form factor
micro ATX
mSATA ports quantity
0
Number of M.2 (M) slots
2
Number of memory slots
4
Number of SATA connectors
0
Number of SATA II connectors
0
Number of SATA III connectors
4
On-board graphics card
No
Parallel processing technology support
Not supported
PCI Express x1 slots
1
PCI Express x16 slots
1
Processor manufacturer
AMD
Processor socket
Socket AM5
Product colour
White
RAID levels
0, 5, 10
RAID support
Yes
RGB LED pin header
Yes
S/PDIF out port
Yes
Supported memory clock speed (max)
7600 MHz
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz
Supported memory types
DDR5-SDRAM
Supported processor sockets
Socket AM5
Supported storage drive interfaces
M.2, PCI Express
Supported storage drive types
HDD & SSD
System Management BIOS (SMBIOS) version
3.5
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
TPM connector
Yes
Unbuffered memory
Yes
USB 2.0 connectors
4
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
VGA (D-Sub) ports quantity
0
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Width
243.8 mm
Windows operating systems supported
Windows 10 x64, Windows 11 x64

Manual

Open Manual

Leaflet

Open Leaflet
Price history over the last 6 months
MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
Current
R4,769
Lowest
R4,567
Highest
R5,784
Change 24H
+R196   +4%
Week
-R762   -14%
Month
-R762   -14%
