Mounting kit Zalman ZM-1700MKB for Intel LGA 1700 Black

The Zalman ZM-1700MKB is a mounting kit for Intel LGA 1700 sockets, offered in a black finish. It is made for use with Zalman Reserator 5 series coolers — specifically the Reserator Z24 (Black/White) and Reserator Z36 (Black/White) — and contains the components needed to attach the pump and secure the cooler to an LGA 1700 motherboard.

Advantages

This kit provides a purpose-built backplate and an Intel pump clip to ensure compatible and stable installation on LGA 1700 systems. Its black colour matches the corresponding Reserator models, and the parts are supplied to fit the listed Reserator Z24 and Z36 variants without requiring additional adapters.

Suitable for

• Installing Zalman Reserator Z24 (Black and White) on Intel LGA 1700
• Installing Zalman Reserator Z36 (Black and White) on Intel LGA 1700
• Upgrading or replacing an existing mounting kit for LGA 1700

Key specifications

• Brand: Zalman
• Model / MPN: ZM-1700MKB
• Supported processor socket: Intel LGA 1700
• Compatible coolers: Reserator Z24 (Black, White), Reserator Z36 (Black, White)

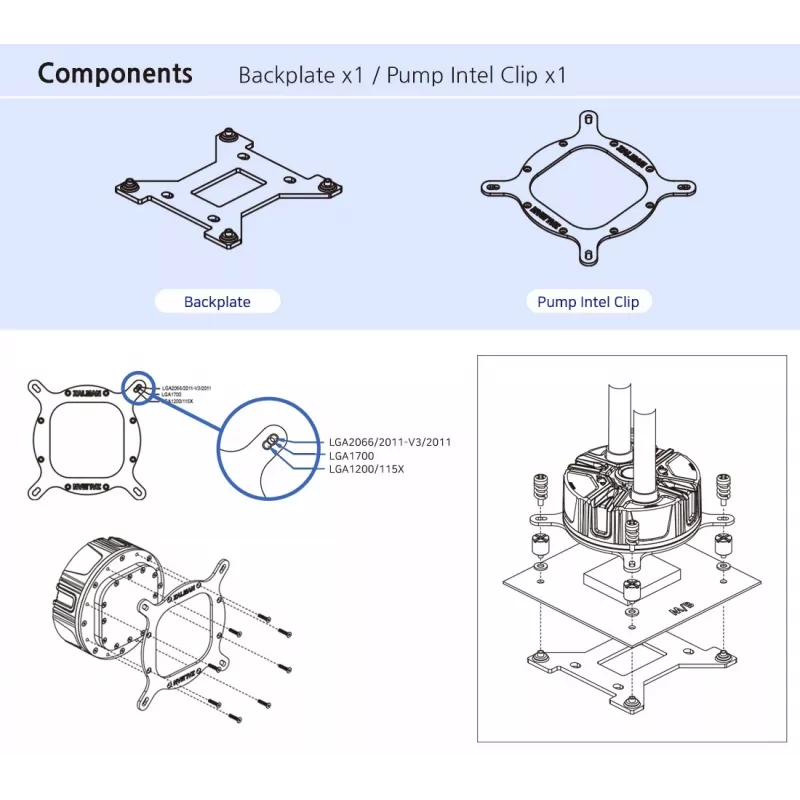

• Included parts: Backplate x1, Pump Intel Clip x1
• Colour: Black

How to use

Turn off the system, remove the existing cooler according to the cooler manufacturer’s instructions, and position the Zalman backplate on the rear of the motherboard aligned to the LGA 1700 mounting holes. Place the cooler over the CPU, fit the pump using the supplied Intel pump clip, and secure the assembly with the appropriate standoffs and screws. Verify that all fasteners are tightened evenly to ensure proper contact and sealing. Reconnect power and test the system after installation.

Recommendations

Use this mounting kit only with the listed Zalman Reserator Z24 and Z36 models and Intel LGA 1700 motherboards. Follow the cooler and motherboard manuals for torque specifications and electrical safety; apply thermal paste according to the cooler manufacturer’s guidance.
