Mounting Kit Gedore 5803680 Weight 28 g Depth 110 mm Height 30 mm

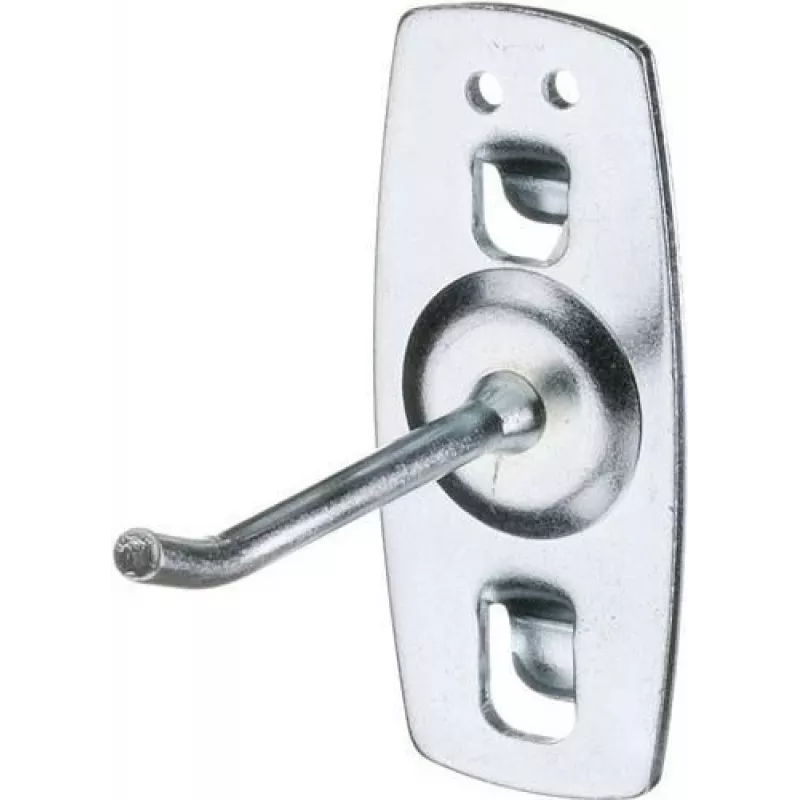

The Gedore 5803680 mounting kit is a compact, zinc‑plated assembly set designed for secure mounting on perforated panels with square perforations sized 10 x 38 mm. With a weight of 28 g and dimensions of 110 mm depth and 30 mm height, the kit is intended for light, space‑saving installations where corrosion resistance and reliable fit are required.

Advantages

The zinc‑plated finish offers corrosion protection while maintaining a low overall weight of 28 g. Its compact dimensions (110 mm depth, 30 mm height) provide a space‑efficient solution for mounting on standard square‑hole panels. The kit is manufactured by Gedore, ensuring consistent quality and compatibility with panels that have 10 x 38 mm square perforations.

Suitable for

Key specifications

How to use

Align the mounting kit with a panel hole sized 10 x 38 mm and engage the kit components according to the panel’s perforation geometry. Ensure the kit sits flush against the panel and tighten or secure any fasteners as required for the specific installation. Verify alignment and stability after mounting to confirm a secure fit.

Recommendations

For best results, use the Gedore 5803680 mounting kit on panels with square 10 x 38 mm perforations and avoid exposure to aggressive chemicals that could compromise the zinc plating. Check regularly for tightness in applications subject to vibration.
