Mounting Kit DeLOCK 65989 Green Plastic

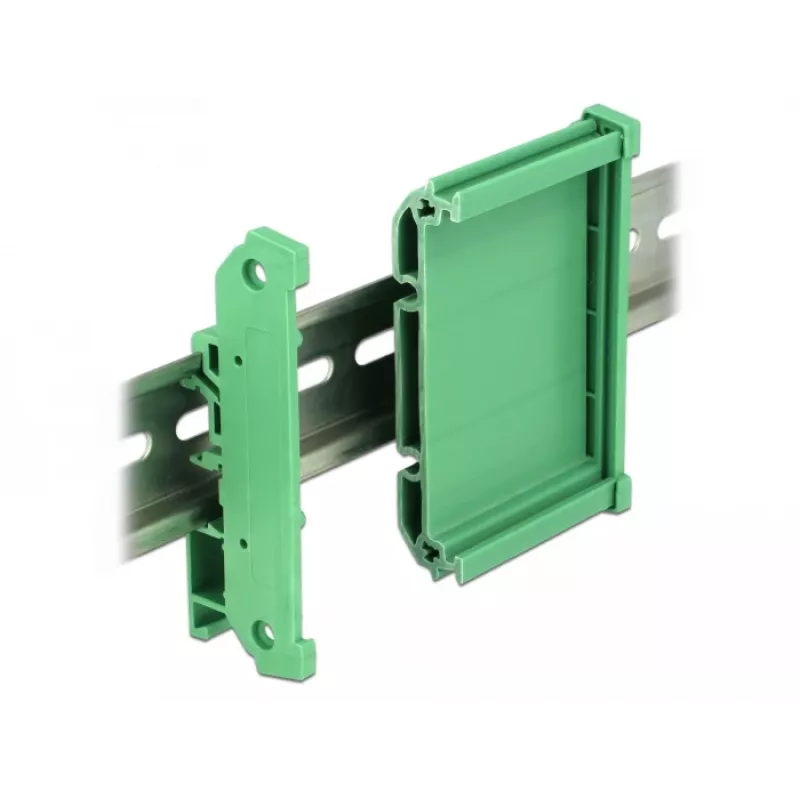

The Delock Board Holder for DIN Rail 5 cm long is a green plastic mounting accessory designed to secure circuit boards with a width of 72 mm onto standard 15 mm or 35 mm DIN rails. The holder is partly pre-formed to fit rail mounting and can be shortened to fit custom board lengths; after cutting, the end caps can be reattached to protect and finish the holder.

Advantages

The mounting kit is made of durable green plastic that resists wear and provides a stable fit on 15 mm or 35 mm DIN rails. It accepts circuit boards up to 72 mm wide and allows individual length adjustment by shortening the holder, while the removable end caps restore a neat finish after modification.

Suitable for

• Securing printed circuit boards (PCB) with a width of up to 72 mm
• Mounting electronics on 15 mm or 35 mm DIN rails
• Custom installations where the holder must be shortened to specific lengths

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 65989
• EAN: 4043619659890
• Material / colour: green plastic
• Suitable for PCB width: 72 mm
• Mounting on DIN rail sizes: 15 mm and 35 mm
• Length: 5 cm (can be shortened)

How to use

Place the board holder onto the DIN rail (15 mm or 35 mm) and insert the PCB so that its edges align with the holder slots designed for a 72 mm width. If a shorter holder is required, mark the desired length, cut the holder carefully with an appropriate tool, and reattach the two end caps to cover the cut ends and restore the mounting profile. Ensure the holder is firmly snapped onto the rail and that the PCB is securely seated before powering the assembly.

Recommendations

Use appropriate cutting tools and wear protective equipment when shortening the holder. Verify compatibility of board thickness and edge clearance with the holder before final installation. Ensure rail type (15 mm or 35 mm) is compatible with the mounting point.
