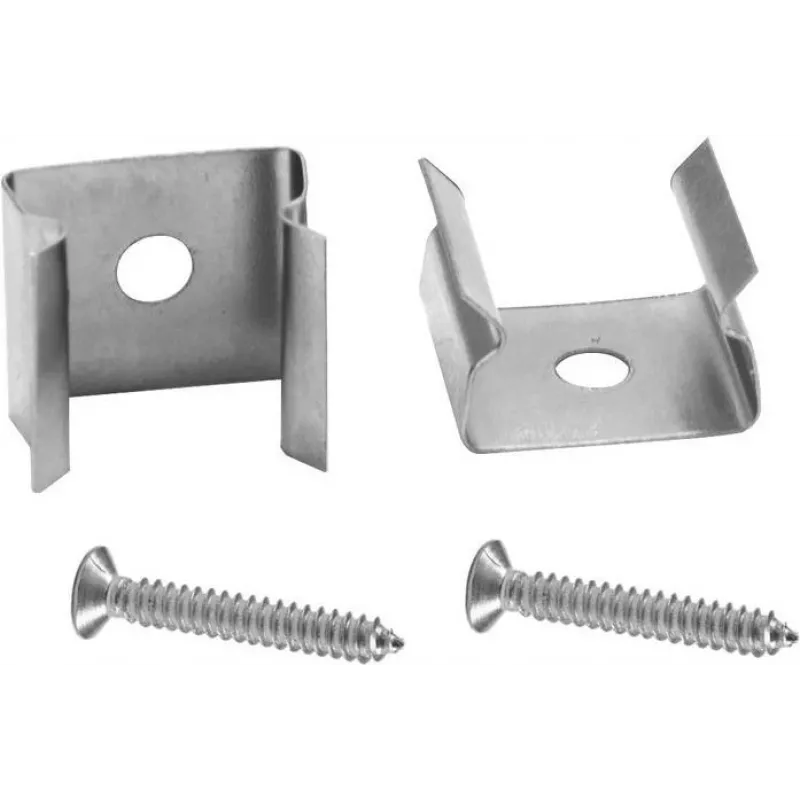

Mounting bracket EUROLITE 51201011 for empty tubes 10x10 mm, set of 2 with screw

Mounting bracket EUROLITE 51201011 for empty tubes 10x10 mm is a set of two compact metal supports supplied with a screw for simple attachment. Designed to secure square tubes with 10×10 mm cross-section, these brackets provide a discrete and reliable fixing point for light constructions, exhibition frames, displays and cable conduits. The low-profile design leaves minimal visual impact while ensuring stable positioning of the tube inside indoor assemblies.

Advantages

The brackets are delivered as a matched pair with a fastening screw to speed installation and reduce the need for additional parts. Their compact form factor is suitable for narrow profiles and tight spaces, while the formed seating ensures a consistent fit for 10×10 mm square tubes. Constructed for indoor use, the brackets offer stable mechanical support for lightweight framing and routing tasks without protruding hardware that would disturb the final appearance.

Suitable for

Key specifications

How to use

Position the bracket so the seat aligns with the 10×10 mm square tube and mark the attachment point on the mounting surface. Fix the bracket to the surface using the supplied screw; for other surfaces, select an appropriate fastener. Insert the empty tube into the formed seat and, if needed, secure it with the screw provided or an additional fixing method suitable for the material to prevent movement. Ensure all connections are tightened to provide stable support for the intended load.

Recommendations

Use these brackets only for indoor applications and for lightweight constructions. Verify that the selected mounting surface and fasteners are rated for the expected load. Avoid using the brackets in outdoor, wet or corrosive environments unless additional protective treatment is applied to the metal parts.
