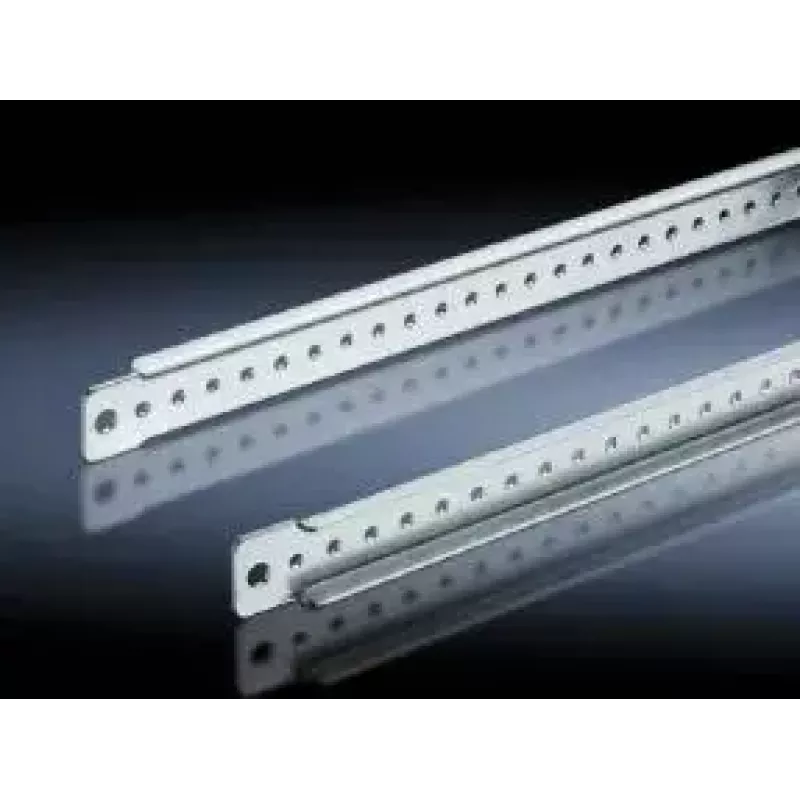

Mounting bar Rittal 4697.000, silver, compatible with TS/SE/CM/TP, depth 740 mm, pack of 20

Rittal 4697.000 is a silver mounting bar for rack cabinets, designed to fit a range of Rittal enclosures including TS, SE, CM and TP. With a depth of 740 mm, the bar provides a stable mounting profile for equipment and accessories inside server, network and industrial cabinets. Supplied in a pack of 20, these bars are intended for installations where multiple matching mounting rails are required to configure racks and frames quickly and consistently.

Advantages

The mounting bar is made to standard dimensions compatible with Rittal TS/SE/CM/TP systems, ensuring straightforward integration into existing racks. Its silver finish offers corrosion resistance and a neutral appearance that suits technical environments. The 740 mm depth is suitable for deeper equipment and cable management needs, and the pack quantity supports larger projects or multiple cabinet builds while maintaining consistent installation quality.

Suitable for

Key specifications

How to use

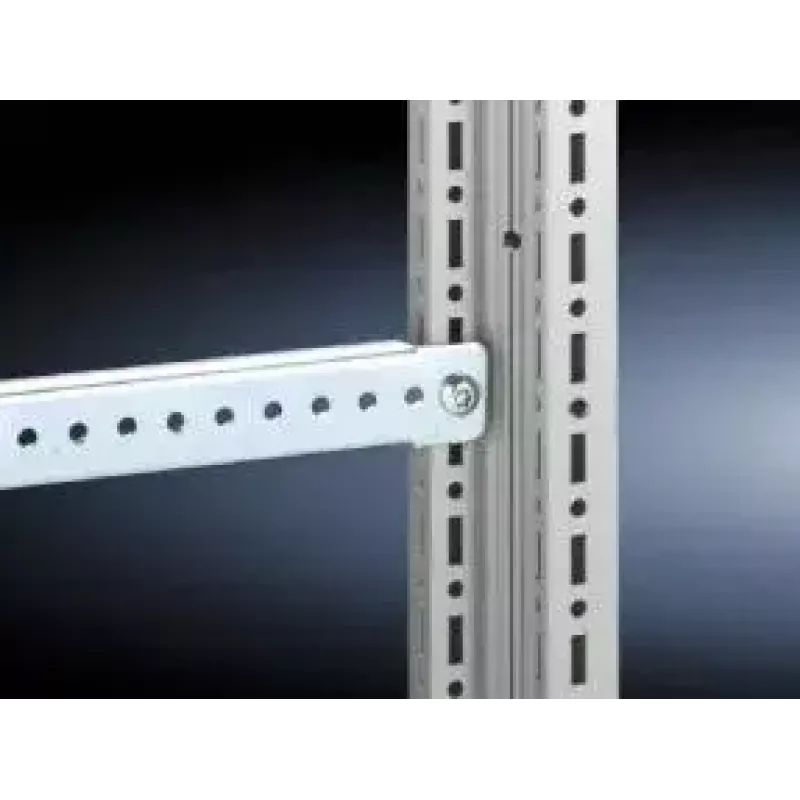

Install the mounting bar by aligning it with the designated mounting points inside the compatible rack enclosure and secure with appropriate fasteners according to the cabinet manufacturer’s instructions. Position bars at the required heights to accommodate equipment mounting units and ensure they are level and firmly fixed. When fitting multiple bars from the pack, verify even spacing and parallel alignment to facilitate rack-mounted device installation and cable routing.

Recommendations

For reliable performance, use compatible Rittal enclosures and recommended fastening hardware. Check load capacities of the enclosure and mounting bars before installing heavy equipment, and follow grounding and cable management best practices to maintain safety and system integrity.
