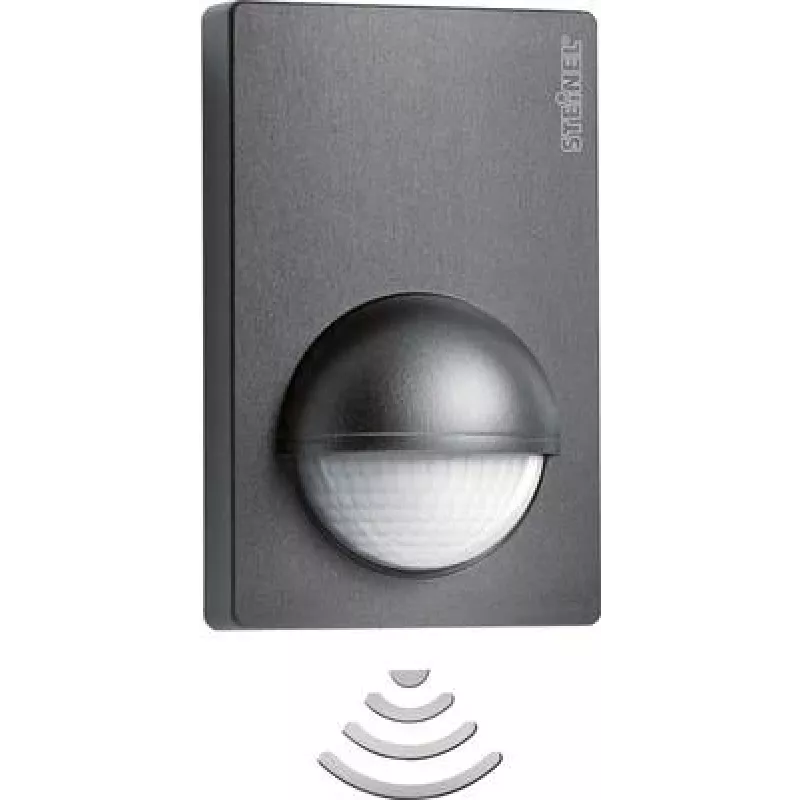

Motion detector Steinel IS 180‑2 anthracite — 180° detection angle, up to 12 m range

Steinel IS 180‑2 anthracite is a passive infrared motion detector designed for wall mounting and reliable automatic detection of human movement. With a 180° detection angle and a sensing range of up to 12 m, the unit detects motion to control lighting or integrate with security systems. The housing in anthracite finish blends with modern façades and indoor walls while the adjustable sensitivity and time-delay settings allow tailoring detection behavior to specific installation conditions.

Advantages

The detector provides wide-area coverage with a 180° field of view and a maximum effective range of approximately 12 m, reducing the need for multiple sensors. Adjustable sensitivity and time-delay ensure stable switching with fewer false triggers. Compact wall-mount design and neutral anthracite color enable discreet installation. The device is built for straightforward electrical integration with lighting circuits and can be used in both residential and light-commercial environments.

Suitable for

• Outdoor wall-mounted lighting control for entrances, pathways and terraces
• Indoor corridors, stairwells and utility rooms where wide-angle coverage is required
• Integration with basic security or automated lighting systems in homes and small commercial premises

Key specifications

• Detection method: passive infrared (PIR)
• Detection angle: 180°
• Maximum detection range: up to 12 m
• Mounting type: wall mounting
• Housing color/finish: anthracite
• Adjustable settings: sensitivity and time-delay
• Typical applications: lighting control and movement sensing

How to use

Mount the detector at the recommended height on a stable wall surface, orienting it to cover the desired area within the 180° field of view. Connect the device to the lighting or control circuit following local electrical codes and the manufacturer's wiring guidelines. Use the sensitivity adjustment to set the detection threshold and the time-delay control to determine how long the output remains active after motion stops. Test the coverage after installation and fine-tune settings to avoid unwanted activations from heat sources or small animals.

Recommendations

For reliable operation, avoid mounting the detector near direct heat sources, air conditioning outlets or reflective surfaces that can cause false triggers. Install at the manufacturer’s recommended height and angle, and perform on-site testing during different ambient conditions to optimise sensitivity and time-delay settings for the intended use case.
