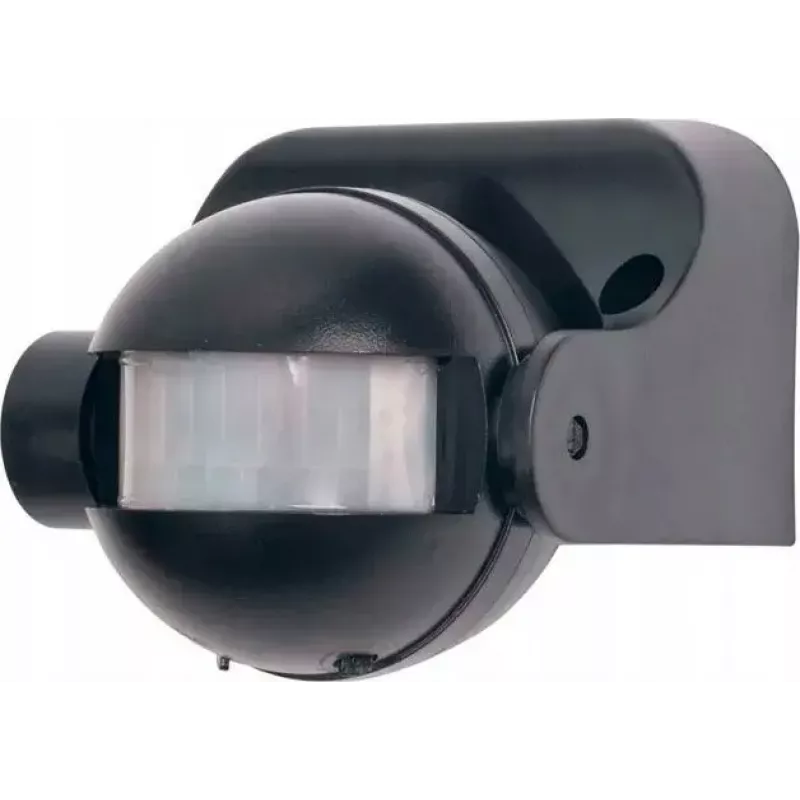

Motion detector REV 0075184512, 180° detection angle, black

The Motion Detector REV 0075184512 180° black is a ceiling- or wall-mountable passive infrared sensor designed to detect movement within a 180° field of view. The compact black housing contains the sensor electronics and is intended for integration into lighting control or simple presence detection applications. This unit is identified by model number 0075184512 SCHW and EAN 4008297153184.

Advantages

The detector provides a wide 180° detection angle for reliable coverage of rooms and corridors. Its compact, black design allows discrete installation on walls or ceilings. As a passive infrared device, it detects changes in infrared radiation caused by moving people and can be used with compatible control circuits for automated lighting or security signaling.

Suitable for

• Indoor room occupancy detection
• Corridors and stairways
• Automatic lighting control in offices, storage rooms or utility spaces

Key specifications

• Brand: REV
• Model / MPN: 0075184512 SCHW
• EAN: 4008297153184
• Detection angle: 180°
• Color: black

How to use

Install the motion detector on a wall or ceiling at the recommended mounting height for the intended coverage area, following local electrical installation regulations. Connect the sensor to the lighting or control circuit according to the wiring diagram supplied by the system or installer. After powering, verify the detection zone and adjust the sensor position if necessary to achieve the desired coverage.

Recommendations

For reliable operation, mount the sensor away from direct heat sources, air vents, or moving reflective surfaces. Use the detector with compatible control equipment and ensure installations are performed by a qualified electrician in accordance with applicable standards.
