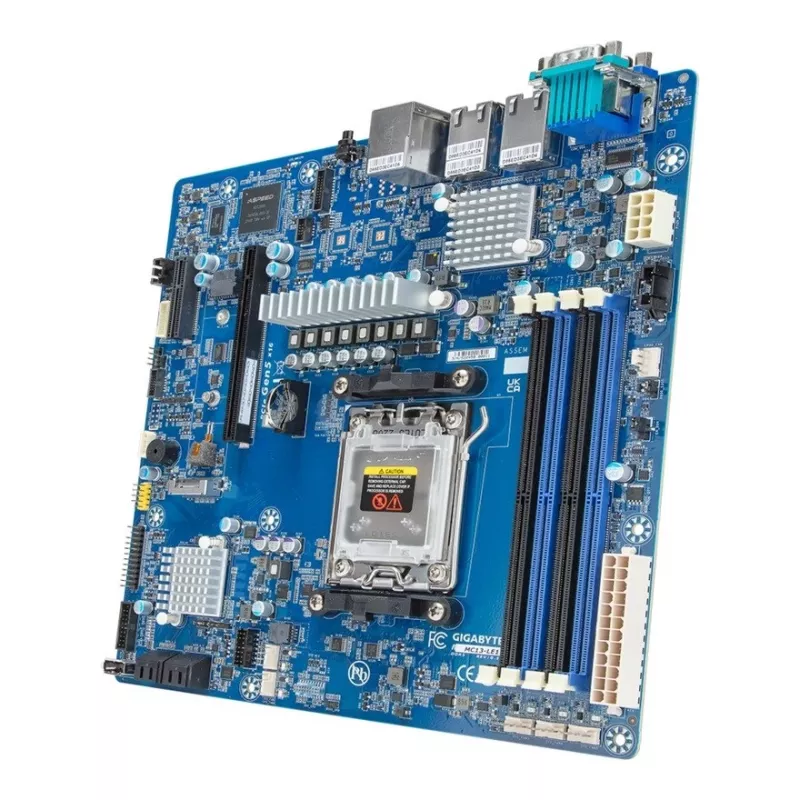

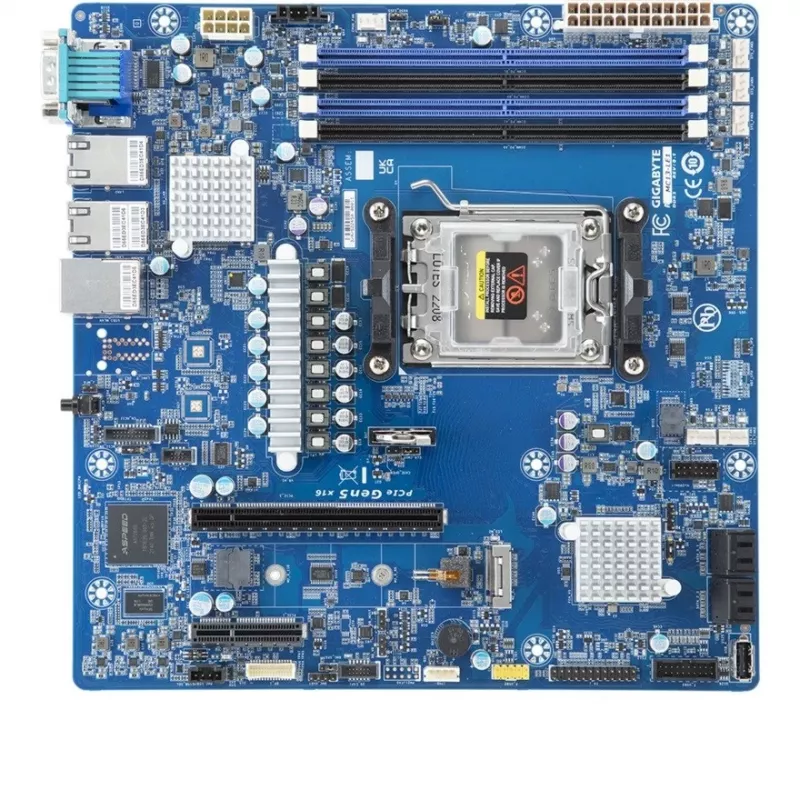

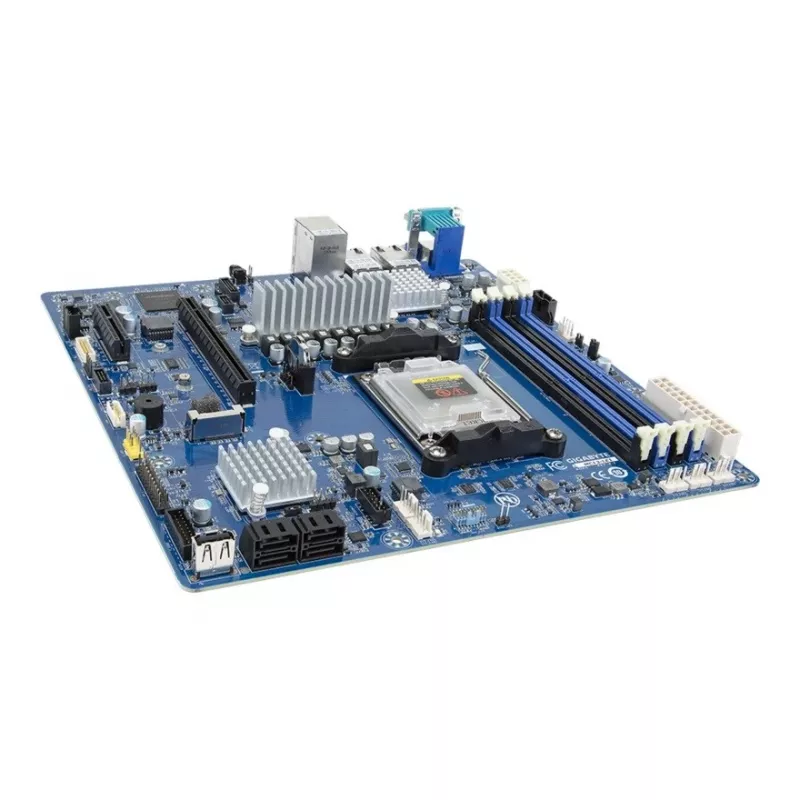

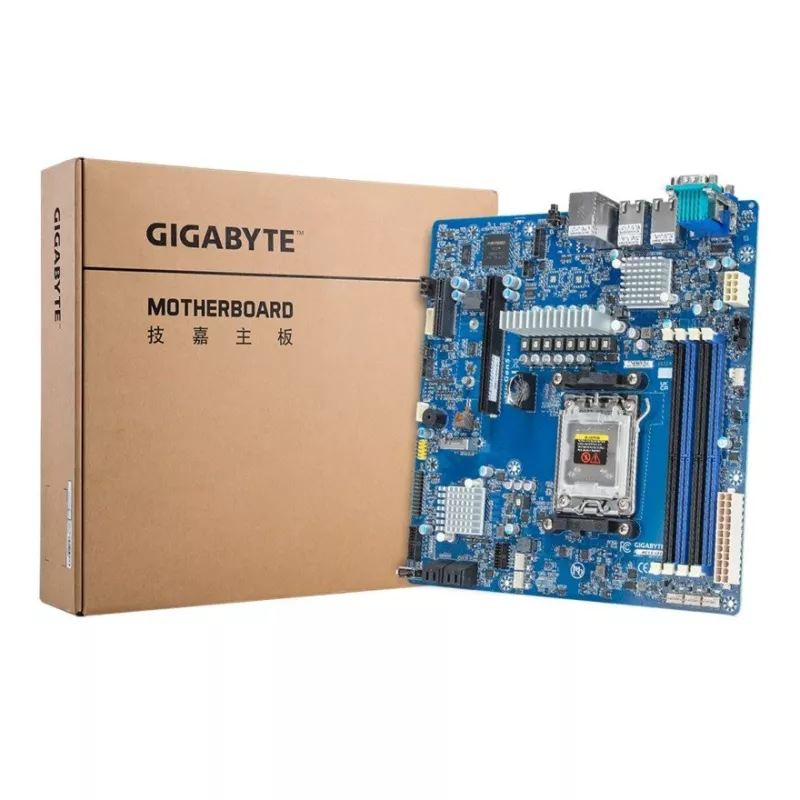

Motherboard GIGABYTE MC13-LE1 B650E microATX for AMD AM5 (Ryzen 7000/9000, DDR5, 4x DIMM, 10Gb LAN, 2x RJ-45, 4x SATA III, M.2, RAID)

GIGABYTE MC13-LE1 is a microATX motherboard based on the AMD B650E chipset for Socket AM5 processors. It supports AMD Ryzen 7000 Series CPUs and compatible AM5 processors, offers dual-channel DDR5 memory across four DIMM slots with ECC and non‑ECC compatibility, and provides a range of connectivity and storage options aimed at server and workstation use.

Advantages

The board provides PCIe Gen5 x16 and PCIe Gen4 x4 expansion slots for modern add-in cards, integrated 10 Gigabit Ethernet with two RJ-45 ports, and M.2 plus SATA III storage support with RAID 1 capability. It includes multiple internal connectors such as USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0, five chassis fan headers and standard ATX power connections, while keeping a compact microATX form factor.

Suitable for

• Compact server or workstation builds
• AMD Ryzen 7000-series desktop systems
• Systems requiring 10Gb Ethernet connectivity
• Storage setups using M.2 and SATA drives with RAID 1

Key specifications

• Chipset: AMD B650E
• Form factor: microATX (244 × 244 mm)
• CPU socket: Socket AM5, single CPU support
• Supported processors: AMD Ryzen 7000 Series (AM5 compatible)
• Memory: 4 × DDR5 DIMM slots, dual-channel, up to 4000 MT/s, ECC & Non‑ECC support
• Networking: Integrated 10 Gigabit Ethernet, 2 × RJ-45 LAN ports
• Storage interfaces: M.2 and 4 × SATA III ports, RAID 1 support
• Expansion: 1 × PCIe Gen5 x16 slot, 1 × PCIe Gen4 x4 slot
• Internal I/O: 1 × USB 3.2 Gen2x2 connector, 1 × USB 3.2 Gen1 header, 2 × USB 2.0 headers, 5 × chassis fan connectors, CPU fan connector, 24-pin ATX power
• Rear I/O: 2 × USB 3.2 Gen1 Type-A ports, VGA (D-Sub), COM port, management LAN port, 2 × RJ-45 Ethernet
• Supported OS: Windows 11 x64

How to use

Install a compatible Socket AM5 CPU and populate up to four DDR5 DIMMs according to the motherboard manual to enable dual-channel memory. Connect the 24-pin ATX and CPU power connectors, attach storage devices to M.2 slots or SATA III ports and configure RAID 1 in the BIOS if required. Use the PCIe Gen5 x16 or Gen4 x4 slots for expansion cards and connect network and peripheral cables to the rear I/O ports. Ensure chassis fans are connected to the provided headers for adequate cooling.

Recommendations

Do not disassemble the motherboard to avoid damage and loss of warranty. Follow the motherboard manual for CPU cooler mounting, memory installation order, and BIOS settings to ensure stable operation.
