Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX

Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
R16,097

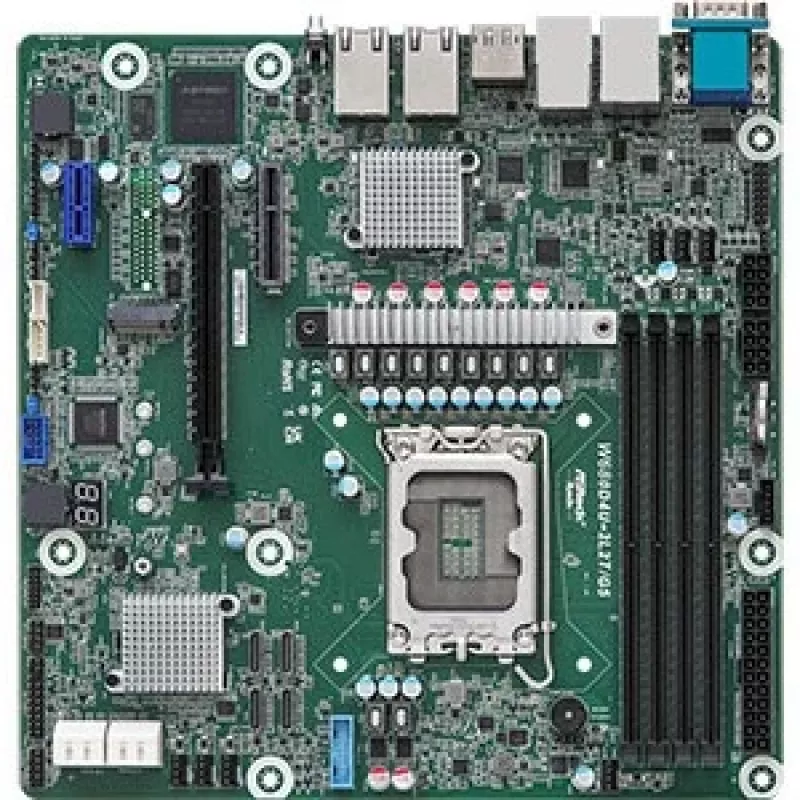

The ASRock W680D4U-2L2T/G5 is a micro ATX motherboard built on the Intel W680 chipset, designed for Intel LGA 1700 processors including 12th and 13th Gen Core i9 and i7 CPUs. It supports DDR5 SDRAM memory via DIMM slots, with a maximum capacity of 32 GB, and offers versatile storage options through ... Read More
Stock 4 Code 2454926 Brand ASROCK Model W680D4U-2L2T/G5 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The ASRock W680D4U-2L2T/G5 is a micro ATX motherboard built on the Intel W680 chipset, designed for Intel LGA 1700 processors including 12th and 13th Gen Core i9 and i7 CPUs. It supports DDR5 SDRAM memory via DIMM slots, with a maximum capacity of 32 GB, and offers versatile storage options through SATA interfaces with RAID levels 0, 1, 5, and 10. This board is engineered for professional PC builds requiring robust performance and connectivity.

Key features

  • Intel W680 chipset with LGA 1700 socket for 12th and 13th Gen Intel Core processors
  • Supports DDR5-SDRAM memory, up to 32 GB via DIMM slots
  • RAID support for SATA drives at levels 0, 1, 5, and 10
  • Dual Ethernet connectivity: 10 Gigabit Ethernet and Gigabit Ethernet
  • Micro ATX form factor for compact yet expandable builds
  • Designed for professional PC applications with high-speed data handling
Key Highlights
  • Compact workstations and small servers requiring multi-gigabit networking
  • High-performance desktop builds using Intel 12th or 13th gen Core i7/i9 CPUs
  • Storage configurations that benefit from SATA RAID 0/1/5/10
  • Professional applications that need a stable W680 chipset platform
  • Form factor: Micro ATX
  • Chipset: Intel W680
  • CPU socket: LGA 1700 (supports Intel 12th and 13th Gen Core i7/i9)
  • Memory: DDR5-SDRAM, 4 DIMM slots, up to 32 GB total
  • Storage interfaces: SATA with RAID levels 0, 1, 5, 10 supported
  • Networking: 10 Gigabit Ethernet and 1 Gigabit Ethernet ports
  • Requires DDR5 memory—DDR4 modules are not supported
  • Maximum supported memory is 32 GB—verify this meets your workload requirements
  • Check CPU compatibility for 12th and 13th generation Intel Core i7/i9 processors
  • Confirm chassis supports micro ATX form factor and I/O layout
Specifications
12V power connector
Yes
ATX Power connector (24-pin)
Yes
BIOS memory size
256 Mbit
BIOS type
AMI
Component for
PC
CPU fan connector
Yes
Depth
243.84 mm
DisplayPorts quantity
1
DVI-D ports quantity
0
ECC сompatibility
ECC & non-ECC
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
4
HDMI ports quantity
1
IPMI LAN (RJ-45) port
Yes
Maximum internal memory
32 GB
Memory slots type
DIMM
Memory voltage
1.1
Motherboard chipset
Intel W680
Motherboard chipset family
Intel
Motherboard form factor
Micro ATX
Number of memory slots
4
Number of SATA III connectors
0
Operating temperature (T-T)
10 - 35
Processor manufacturer
Intel
Processor socket
LGA 1700
RAID levels
1, 5, 10
RAID support
Yes
RGB LED pin header
Yes
Serial ports quantity
1
Storage relative humidity (H-H)
20 - 90
Storage temperature (T-T)
-40 - 70
Supported memory types
DDR5-SDRAM
Supported storage drive interfaces
SATA
System Management BIOS (SMBIOS) version
2.8
TPM connector
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
VGA (D-Sub) ports quantity
1
Wi-Fi
No
Width
243.84 mm

Leaflet

Open Leaflet
Price history over the last 6 months
Motherboard ASRock W680D4U-2L2T/G5 Intel W680 LGA 1700 micro ATX
Current
R16,097
Lowest
R14,524
Highest
R16,811
Change 24H
-R238   -1%
Week
-R309   -2%
Month
-R339   -2%
