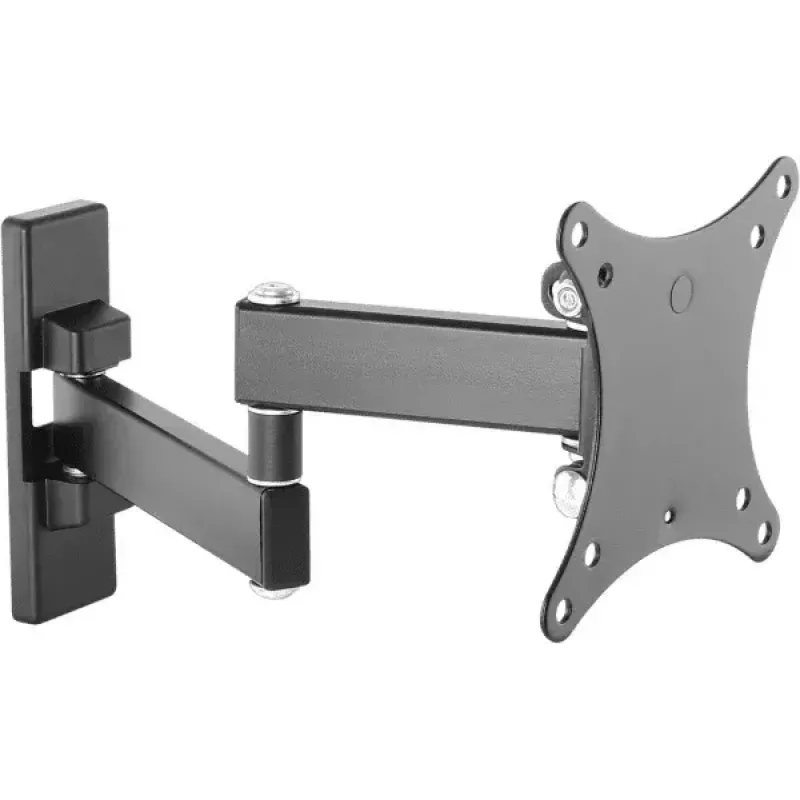

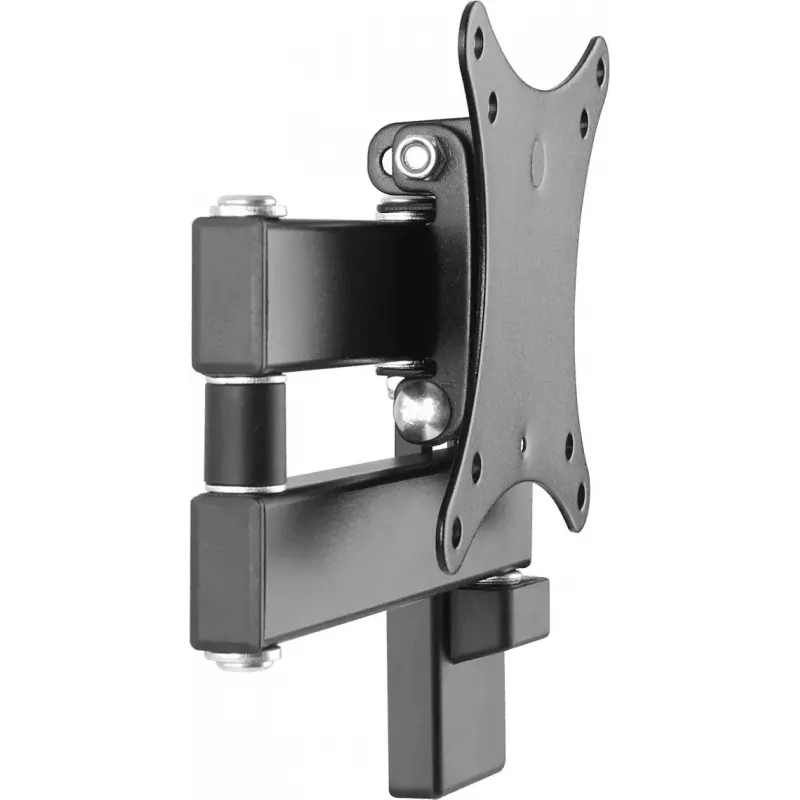

Monitor mount Vision VFM-WA1X1B 27 inch Wall Black

The Vision VFM-WA1X1B is a compact wall arm for flat-panel monitors up to 27" with a powder-coated black finish. It supports VESA mounting patterns 100 x 100 mm and 75 x 75 mm, has a safe working load of 15 kg, and is made of steel for durability. The arm provides tilt and swivel adjustments and a small rotation to level the display after installation.

Advantages

The mount includes two sizes of thumbscrews for easier attachment to different monitors and a quick-install design where the mounting plate fixes to the display and the screen simply drops onto the wall arm and is secured with a single nut. The steel construction and robust powder coating increase scratch resistance and long-term reliability. Adjustable tilt (-3° to 10°), 90° swivel and 6° rotation allow alignment and positioning flexibility.

Suitable for

Key specifications

How to use

Fix the supplied mounting plate to the back of the display using the appropriate thumbscrews for your monitor. Secure the wall plate to a suitable structural surface using appropriate fixings (not supplied). Hang the display by dropping the mounting plate into the wall arm and tighten the locking nut to secure it. Adjust tilt and swivel to the desired viewing angle and use the rotation feature to level the screen if the wall plate is not perfectly aligned.

Recommendations

Ensure the wall fixings are rated for the combined weight of the mount and display and that the display’s VESA mounting holes match 100 x 100 mm or 75 x 75 mm. Do not exceed the 15 kg safe working load. Use two people for safe handling during installation of larger screens.
