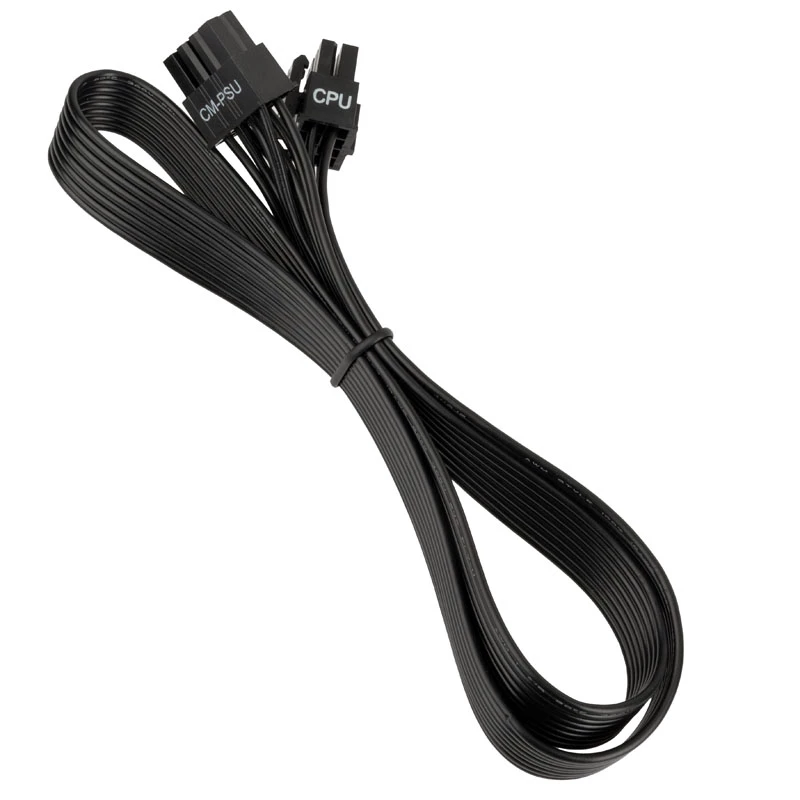

Modular 4+4 12V ATX/EPS CPU Power Cable by Kolink KL-CBR-12V

Kolink KL-CBR-12V is a modular 4+4 12V ATX/EPS CPU power cable designed to provide a detachable connection between a modular power supply and a motherboard CPU power socket. The cable splits into a 4+4 configuration allowing it to serve as a single 8-pin EPS connector or two 4-pin CPU power connectors, making it compatible with a variety of motherboard power input layouts. It is intended for use with PSUs that support removable cables and for system builds where a separate, replaceable CPU 12V lead is required.

Advantages

The cable offers a flexible 4+4 connector arrangement to accommodate both 8-pin and 4-pin CPU power sockets without requiring adapters. Its modular design reduces cable clutter inside the case and simplifies cable routing and management. Built to industry-standard pin layouts for ATX/EPS CPU power, the cable enables reliable 12V delivery to the CPU power rails when used with compatible modular power supplies.

Suitable for

• Custom desktop PC builds with modular power supplies
• Motherboards requiring an 8-pin EPS or dual 4-pin CPU power input
• System upgrades where a replaceable CPU power cable is needed
• Small form-factor or full-tower cases that require neat cable routing

Key specifications

• Connector type: 4+4-pin ATX/EPS CPU power connector
• Voltage: 12V CPU power delivery
• Configuration: Split 4+4 for use as single 8-pin or dual 4-pin
• Compatibility: Designed for modular PSUs with removable cable headers and standard motherboards supporting ATX/EPS CPU power
• Cable function: Dedicated CPU 12V power lead for motherboards

How to use

Connect the cable end marked for the power supply to the modular cable header on a compatible PSU. Align the 4+4 halves and plug the combined connector into the motherboard CPU power socket; if the motherboard uses two separate 4-pin inputs, separate the halves and connect each 4-pin plug to the corresponding CPU power header. Ensure the connectors are fully seated and oriented to match the motherboard and PSU keyed shapes before powering the system.

Recommendations

Use this cable only with compatible modular power supplies and motherboards that adhere to standard ATX/EPS pinouts. Verify that the PSU provides adequate current on the 12V rail(s) for your CPU and that connections are secure to avoid power interruptions. Do not force connectors into incompatible sockets; if the fit is not correct, consult the PSU or motherboard documentation.
