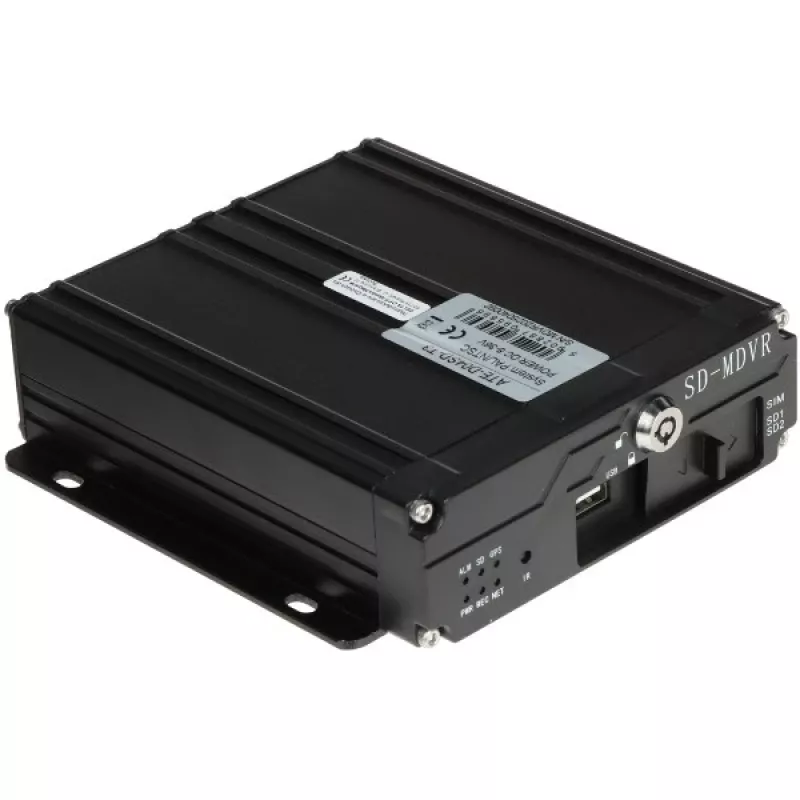

Mobile AHD Recorder ATE-D04SD-T3 4-Channel AUTONE

Fleet managers and transportation companies rely on the AUTONE ATE-D04SD-T3 to capture high-definition video from up to four cameras in buses, trucks, and commercial vehicles. This rugged mobile DVR records AHD, TVI, CVI, and CVBS signals at up to 1080p resolution, ensuring clear evidence in any driving condition.

Key specifications

• 4-channel hybrid video input: AHD (720p/1080p), TVI, CVI, CVBS (960H/D1)
• H.264 compression for efficient storage
• Recording resolution up to 1080p at 25fps (PAL) / 30fps (NTSC) per channel
• Dual SD card slots, each supporting up to 256GB (512GB total)
• 4 audio input channels with G.711A compression
• Video outputs: 1x VGA, 1x CVBS (RCA)
• Built-in GPS and G-sensor for location and impact data
• 4 digital alarm inputs and 1 digital output
• RS232 and RS485 communication interfaces
• Wide power input: DC 8V–36V, suitable for vehicle electrical systems
• Operating temperature: -20°C to +70°C
• Aluminum alloy housing for durability

Why choose it

The ATE-D04SD-T3 delivers reliable, high-definition surveillance in demanding mobile environments. Its hybrid video support allows mixing camera types, while the dual SD card slots provide ample storage and redundancy. The integrated GPS and G-sensor add critical metadata for incident analysis, and the wide voltage range ensures stable operation even during engine cranking or voltage fluctuations.

Ideal use cases

• Public transportation: buses, trams, and shuttles
• Commercial fleets: trucks, delivery vans, and taxis
• Law enforcement and emergency vehicles
• Construction and mining equipment monitoring

Good to know

The recorder supports local playback via VGA/CVBS output and remote access through CMS software when an optional network module is installed. Its fanless aluminum design dissipates heat efficiently, ensuring long-term reliability in harsh conditions.
