MiniX Mini PC N512 i5 - Compact desktop with Intel Core i5-12600H, 16GB RAM, 1TB SSD

Mini PC Minix N512 i5 12600h 16+1000

MINIX NGC N512 is a compact PC that combines advanced performance with modern connectivity in an ultra-small form factor. Equipped with a powerful 10-core Intel Core i5-12600 processor, it supports advanced computing and intensive multitasking. It has a pre-installed, super-fast 1TB PCIe 4.0 NVMe SSD, and an additional M.2 slot allows for easy storage expansion. The device supports dual-channel DDR5 memory up to 96GB, and offers up to four video outputs - including HDMI 2.1 and Thunderbolt 4 - with up to 8K video capability. Built-in Wi-Fi 6, Bluetooth 5.2 and dual LAN make this mini PC ready for any industry or application.

Powerful Intel® Core™ i5-12600H processor

At the heart of the N512 is the energy-efficient yet powerful Intel Core i5-12600H processor, which, with 18 MB of cache and a maximum clock speed of up to 4.5 GHz, handles even the most demanding office, design or multimedia applications with ease. Support for multiple threads and cores ensures fast performance, which translates into comfort in both home and professional settings.

Fast DDR5 memory and flexible expandability

The computer is equipped with 16 GB of DDR5 RAM operating in dual-channel mode, which ensures high bandwidth and smooth application performance. Thanks to two SO-DIMM slots, the user can expand the memory up to 96 GB, making the device ready for demanding virtual environments, advanced video editing or CAD software.

Super-fast SSD and additional M.2 slot

The MINIX N512 offers a pre-installed 1TB PCIe 4.0 NVMe SSD, which not only provides lightning-fast Windows 11 Pro loading, but also allows for convenient storage of large files and projects. An additional M.2 connector compatible with PCIe 3.0 and SATA allows flexible expansion of storage space without replacing the main media.

4K and 8K video support - ideal for work and entertainment

The device offers support for four independent video outputs, including HDMI 2.1 and a Thunderbolt 4 port, while supporting 4K resolutions at 60 Hz and even 8K resolutions at 60 Hz. This configuration makes the computer ideal for both professional applications, such as video editing and graphic design, as well as high-end visual entertainment.

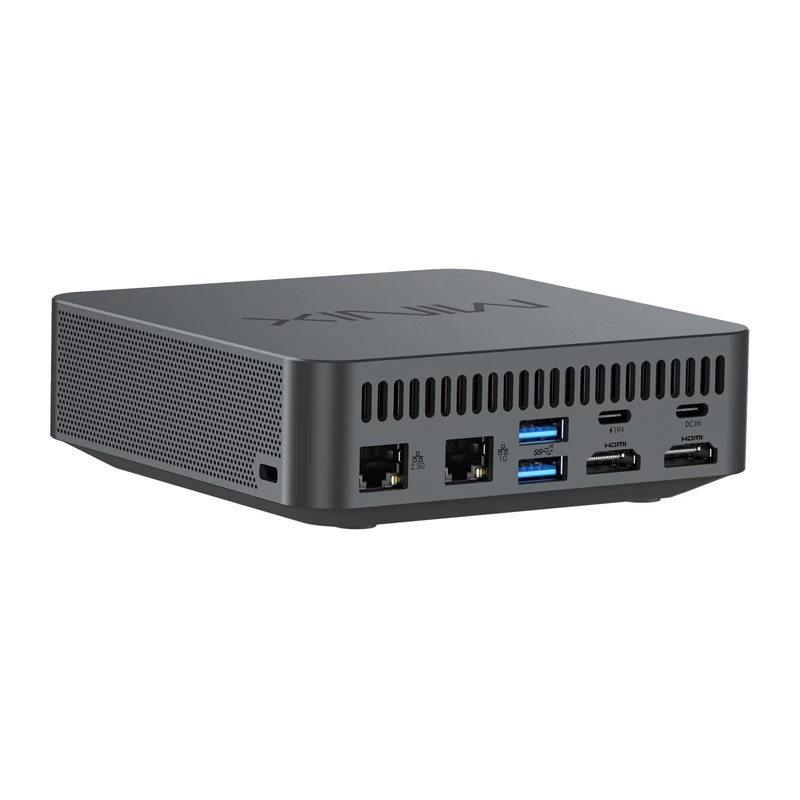

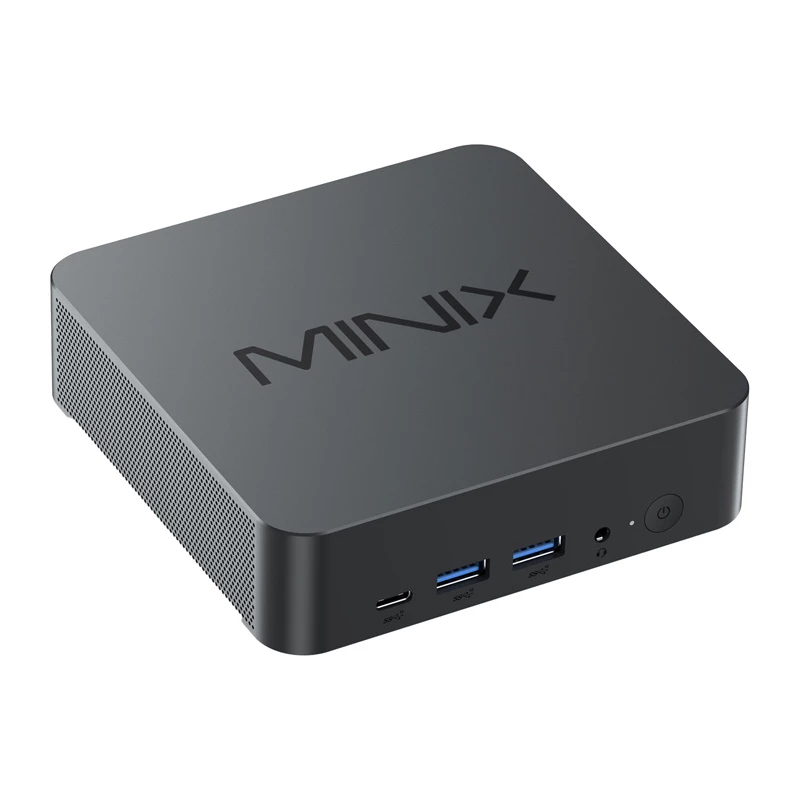

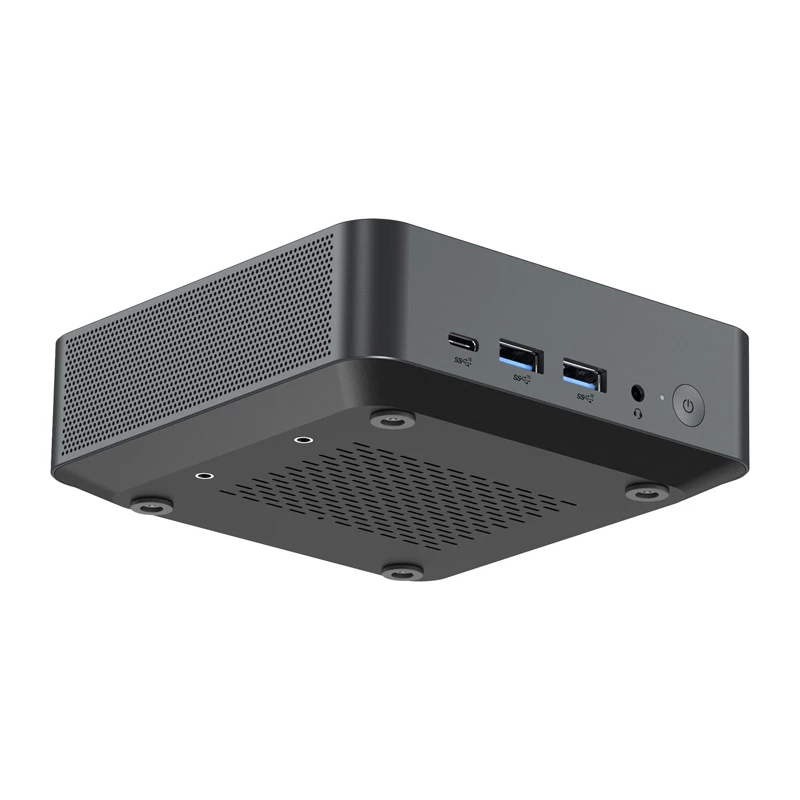

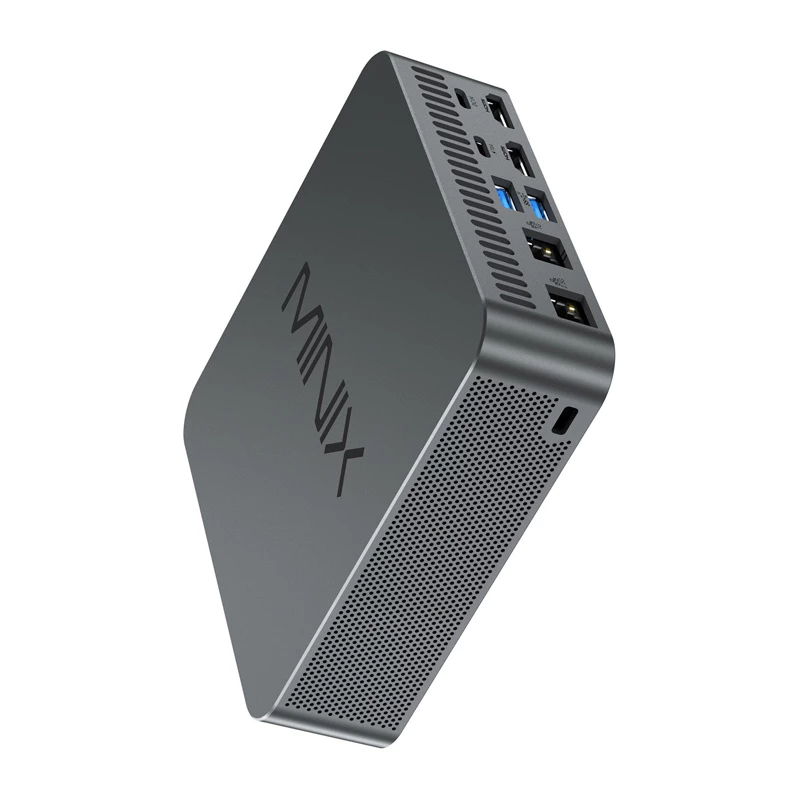

Compact design with a rich set of connectors

The case, made of high-quality metal and plastic alloy, weighs just 472 grams and measures less than 119.3×119.3×38.9 mm, allowing it to be easily placed anywhere - including behind a monitor thanks to its compatibility with the VESA standard. The mini PC features multiple USB 3.2 Gen 2 ports (both Type A and Type C), two LAN ports (2.5G and 1G), an audio jack, and support for Thunderbolt 4. Such extensive connectivity allows you to connect various accessories and peripherals without compromise.

Included

• 1x Minix N512 Mini PC
• 1x VESA mount
• 1x HDMI cable
• 1x Power adapter 20V/5A

How to use

Place the MINIX N512 on a desk or mount it to the back of a monitor using the supplied VESA bracket. Connect power using the supplied 20V/5A adapter, attach displays via HDMI or Thunderbolt 4, and connect network and peripherals using the available LAN and USB ports. The system ships with Windows 11 Pro preinstalled on the internal NVMe SSD; follow on-screen setup to configure user accounts, network settings and updates. For storage or memory upgrades, power down and open the unit following the manufacturer instructions, then install additional M.2 drive or DDR5 SO‑DIMMs into the provided slots.

Recommendations

For optimal performance in editing or virtual machine workloads, use dual-channel DDR5 modules and consider adding additional SSD storage. Ensure proper ventilation when using sustained high CPU loads and keep firmware and drivers up to date for best compatibility with Thunderbolt and network features.
