MINI PC Minis Forum MS-A2-9955 AMD Ryzen 9 9955HX 16GB 512GB Integrated Windows 11

MINIS FORUM MS-A2-9955 is a compact barebone mini PC built around the AMD Ryzen™ 9 9955HX processor. The system combines a small footprint with high performance, DDR5 memory support, NVMe storage options and a modern I/O set including Wi‑Fi 6E and Bluetooth 5.2. The integrated AMD Radeon™ 610M graphics and a PCIe x16 slot give flexibility for multi‑display setups and optional dedicated graphics.

Advantages

The MS-A2-9955 delivers strong multicore performance thanks to the Ryzen 9 9955HX (16 cores / 32 threads, up to 5.4 GHz) and supports up to 96 GB DDR5-5600 for improved multitasking and memory‑intensive workloads. It accepts high‑speed M.2 NVMe and U.2 drives up to a combined 15 TB with RAID options, supports three simultaneous displays including a single 8K output, and offers extensive wired and wireless connectivity (dual 2.5 Gb LAN, SFP+ 10G, USB-C 10 Gbps, HDMI 2.1, Wi‑Fi 6E, Bluetooth 5.2). The cooling system with triple copper heat pipes and an improved fan maintains stable performance under prolonged load.

Suitable for

• Office productivity and multitasking
• Content creation and video editing (RAM and NVMe storage scalable)
• Software development and data analysis
• Multi‑monitor workstations and light to moderate gaming with integrated or add‑on GPU

Key specifications

• Manufacturer: Minis Forum; Model: MS-A2-9955
• CPU: AMD Ryzen™ 9 9955HX (Zen 5, 16 cores / 32 threads, up to 5.4 GHz, 64 MB L3)
• GPU: AMD Radeon™ 610M (integrated); PCIe x16 slot available for discrete GPU
• Memory: Up to 96 GB DDR5 (SO‑DIMM ×2), DDR5‑5600
• Storage: M.2 2280 / U.2 NVMe ×1 (up to 15 TB total, PCIe 4.0 ×4), M.2 2280/22110 NVMe/SATA ×2 (up to 4 TB per slot)
• Video outputs: HDMI 2.1 ×1 (up to 8K@60Hz), USB‑C ×2 (Alt DP 2.0, up to 8K@60Hz / 4K@144Hz)
• Connectivity: Wi‑Fi 6E, Bluetooth 5.2, LAN 2.5 Gb (Realtek RTL8125) ×1, LAN 2.5 Gb (Intel i226‑V) ×1, SFP+ 10 Gb ×2

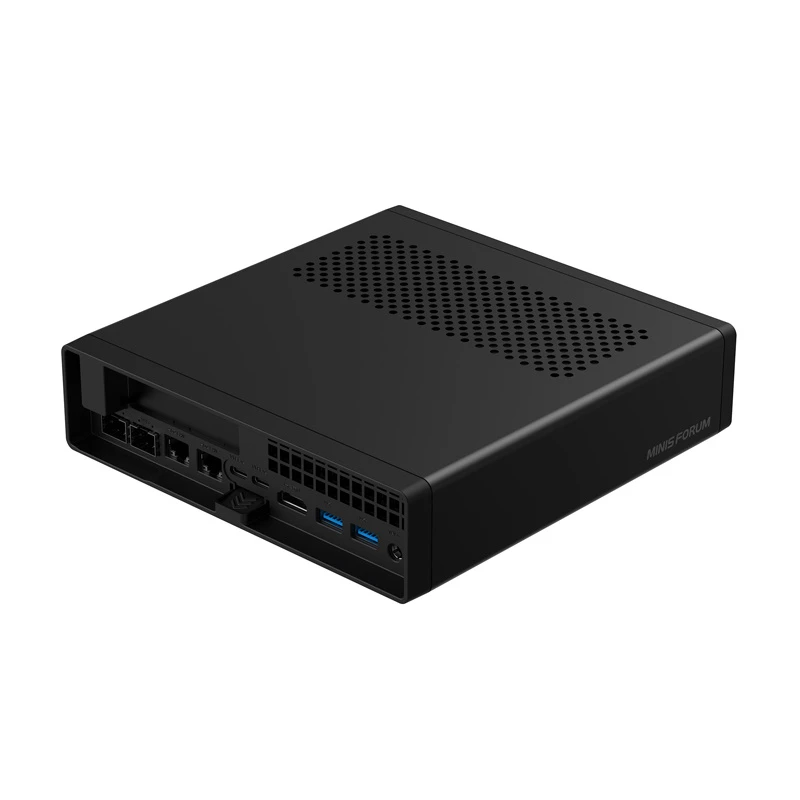

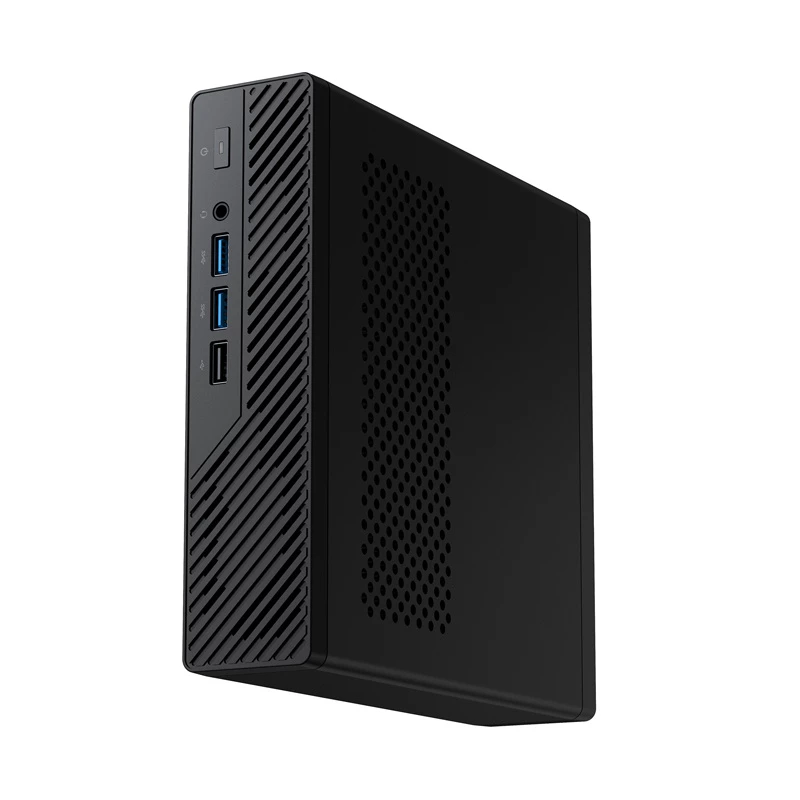

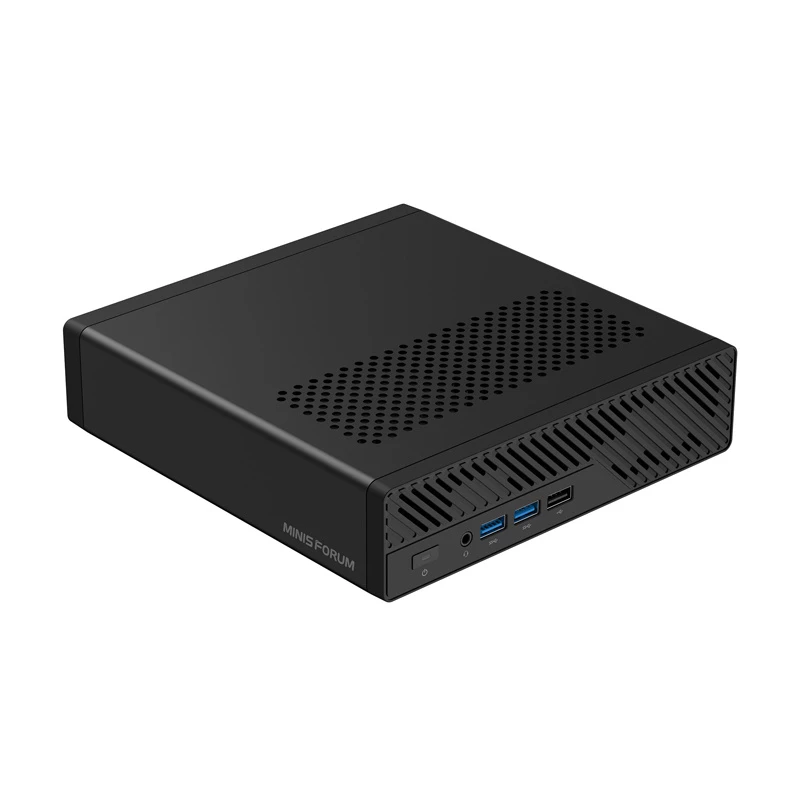

• Front ports: 3.5 mm combo jack ×1, USB 3.2 Gen1 ×2, USB 2.0 ×1; Rear ports: USB‑C 3.2 Gen2 ×2, USB 3.2 Gen2 ×1, USB 3.2 Gen1 ×1, HDMI 2.1 ×1, SFP+ ×2, LAN ×2
• Power supply: 19 V / 12.63 A; OS: Windows 11 (preinstalled)
• Dimensions: 196 × 189 × 48 mm

How to use

Install DDR5 SO‑DIMM modules and M.2 / U.2 NVMe drives according to the motherboard layout, connect power and required peripherals, then boot to Windows 11. Use the rear PCIe x16 slot if you need to install a discrete graphics card. Configure RAID for multiple drives through the BIOS or operating system utilities if redundancy or performance striping is required. Connect displays via HDMI or USB‑C (DisplayPort Alt Mode) and set up network connections using either wired LAN or Wi‑Fi 6E.

Recommendations

For sustained high‑load tasks keep the unit in a well‑ventilated location and ensure airflow around vents. Use DDR5‑5600 modules matched in capacity and speed for optimal dual‑channel performance, and prefer PCIe 4.0 NVMe drives for maximum storage throughput.
