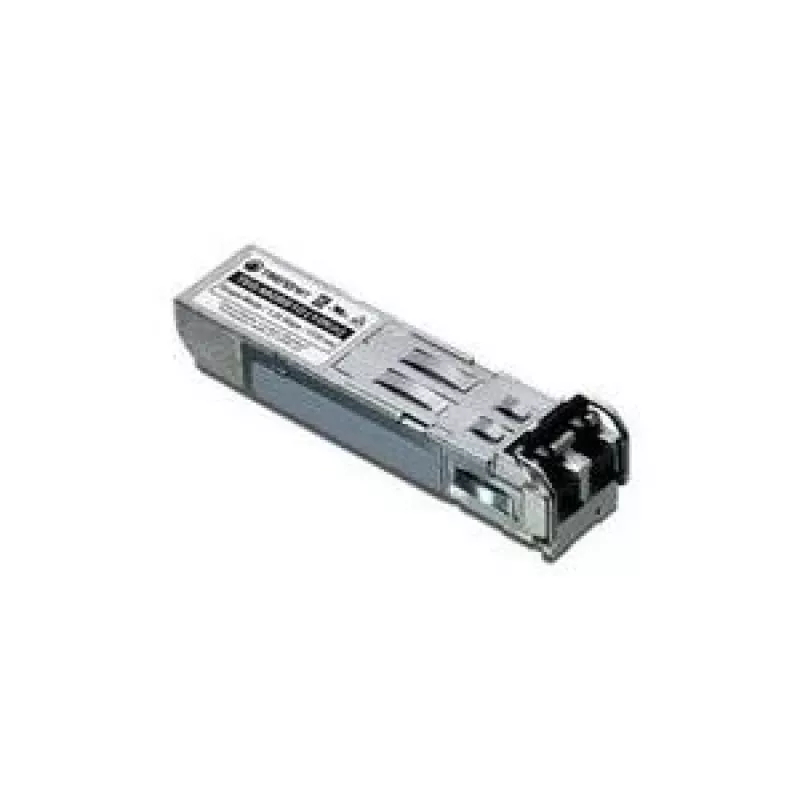

Mini-GBIC Single-Mode LC Module Trendnet TEG-MGBS10

The TEG-MGBS10 Mini-GBIC Single-Mode LC module is a compact SFP transceiver designed for installation in standard Mini-GBIC/SFP slots on switches and other networking equipment. It supports single-mode fiber links up to 10 km and provides a 1 x 1000Mbps-LX (LC-type) interface operating at a wavelength of 1310 nm with a maximum data rate of 1.25 Gbps.

Advantages

This module is compliant with IEEE 802.3z Gigabit Ethernet and Fibre Channel standards and comes in an industry-standard SFP package with a duplex LC connector. It operates from a single 3.3 V power supply and supports both 1.25 Gbps Gigabit Ethernet and 1.0625 Gbps Fibre Channel data rates. A limited 5-year warranty is provided.

Suitable for

• Long-distance Gigabit Ethernet links up to 10 km
• Fibre Channel connections requiring 1.0625 Gbps
• Installing into switches and routers with Mini-GBIC/SFP slots
• Network infrastructure upgrades that require single-mode LC transceivers

Key specifications

• Form factor: Mini-GBIC / SFP
• Connector type: Duplex LC
• Mode: Single-mode fiber
• Maximum distance: 10 km (6.2 miles)
• Wavelength: 1310 nm
• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbps)
• Standards: IEEE 802.3z Gigabit Ethernet, Fibre Channel 1.0625 Gbps compliant
• Power: Single 3.3 V supply
• Manufacturer: TRENDnet, MPN: TEG-MGBS10

How to use

Insert the Mini-GBIC module into an available SFP/Mini-GBIC slot on a compatible switch or router until it clicks into place, then connect single-mode LC fiber cables to the duplex LC ports. Ensure the host device supports 1.25 Gbps SFP transceivers and configure the network device as required for Gigabit Ethernet or Fibre Channel operation. Follow the equipment manufacturer’s instructions for hot-plug handling and link configuration.

Recommendations

Use single-mode fiber of appropriate attenuation and connectors, verify compatibility with the switch/vendor SFP compatibility list, and test link integrity after installation. Observe ESD precautions when handling the module.
