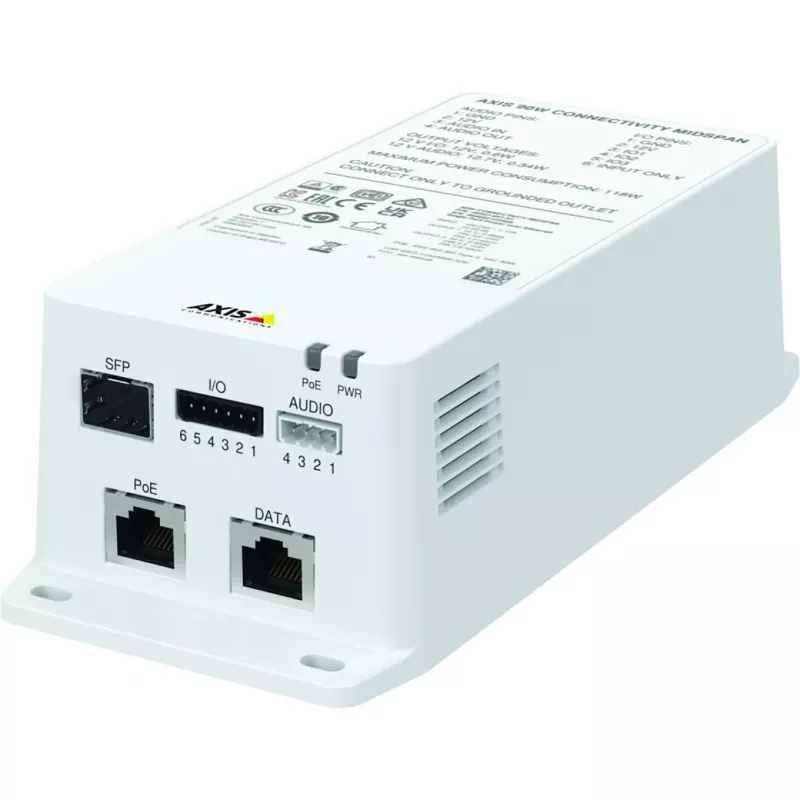

Midspan Axis TU8003 90W Wired Ethernet 10/100/1000 Mbit/s White

AXIS TU8003 90 W Connectivity Midspan provides up to 90 W power over Ethernet and adds two-way audio and I/O connectivity for compatible Axis PTZ cameras. The midspan supports Ethernet speeds of 10/100/1000 Mbit/s, includes an SFP slot for fiber or long-distance links, and is compatible with IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af and Axis High PoE. It accepts 100–240 V input at 50/60 Hz and comes with a 1.8 m cable; its compact dimensions make it suitable for varied installation environments.

Advantages

AXIS TU8003 combines high-power PoE (up to 90 W) with Portcast technology to deliver audio and I/O through the camera’s IP address, enabling synchronized audio and video streams without additional VMS licensing. The built-in SFP port allows fiber connections for long-distance installations, and remote on/off via I/O reduces power consumption when required. The unit supports both digital and unbalanced microphones and adheres to multiple PoE standards for broad compatibility.

Suitable for

• Powering selected Axis PTZ cameras requiring up to 90 W
• Adding two-way audio and I/O to cameras in surveillance installations
• Long-distance network links using fiber via the SFP slot
• Installations needing PoE compatibility with IEEE 802.3bt/at/af and Axis High PoE

Key specifications

• Power output: up to 90 W
• Data rates: 10/100/1000 Mbit/s (Wired Ethernet)
• PoE standards: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, Axis High PoE
• SFP slot: yes (for fiber/long-distance)
• Portcast technology: supports camera-integrated two-way audio and I/O
• Input voltage: 100–240 V, 50/60 Hz
• Cable length: 1.8 m
• Dimensions (W x D): 80 mm x 184 mm
• Color: White
• Manufacturer MPN: 02027-002; EAN: 7331021071100

How to use

Install the AXIS TU8003 near the network or fiber entry point and connect the midspan to mains power (100–240 V). Insert an appropriate SFP module for fiber connections if required, then connect the Ethernet cable from the midspan to the Axis PTZ camera. Configure camera network settings as usual; Portcast uses the camera’s IP address to enable audio and I/O without separate VMS licensing. Use the I/O interface for remote on/off control when power saving or remote resets are needed.

Recommendations

For reliable long-distance links use a compatible SFP module and follow Axis installation guidelines. Verify camera compatibility with 90 W PoE and Portcast functionality before deployment, and ensure proper ventilation around the midspan to maintain safe operating temperatures.
