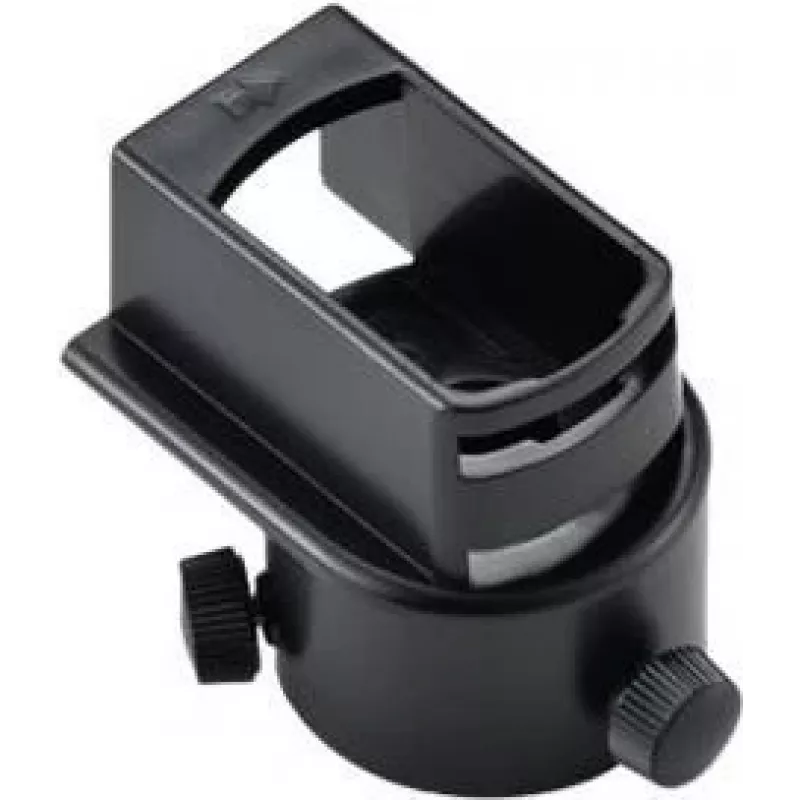

Microscope Adapter ELMO MA-1/MO-2 1371 for attaching ELMO cameras to microscope eyepieces

The ELMO MA-1/MO-2 1371 microscope adapter provides a precise mechanical interface for attaching compatible ELMO cameras to standard microscope eyepieces. Designed to align the camera optics with the microscope eyepiece tube, the adapter supports stable image transmission for documentation, teaching, inspection and projection tasks. Its compact construction preserves access to the eyepiece and enables quick installation and removal without altering the microscope’s optical path.

Advantages

The adapter delivers secure and repeatable mounting, reducing image shift and vibration during capture. Optical alignment is maintained so that camera sensors receive a consistent field of view with minimal vignetting. Its robust build and accurate fit contribute to reliable operation in classroom, laboratory and industrial environments. Installation is straightforward and requires no tools in most setups, allowing fast transitions between eyepiece observation and camera imaging.

Suitable for

• Educational demonstrations and classroom microscopy
• Laboratory documentation and sample imaging
• Quality control and inspection tasks
• Live projection and presentations from microscope view

Key specifications

• Compatibility: designed for use with ELMO cameras and standard microscope eyepiece tubes
• Mount type: eyepiece adapter for secure attachment to microscope oculars
• Material and finish: durable mechanical construction for stable alignment
• Installation: tool-free mounting in typical configurations, quick release capability
• Optical behavior: maintains eyepiece access and alignment to minimise image shift and vignetting

How to use

Slide the adapter onto the microscope eyepiece tube according to the eyepiece diameter, ensuring a snug fit. Attach the compatible ELMO camera to the adapter and adjust the camera position to obtain the desired focus and field of view through the microscope optics. Confirm that the adapter is seated evenly and that the camera connector is secure before capturing images or starting video. When finished, release the camera and remove the adapter if needed to return the microscope to standard eyepiece observation.

Recommendations

Verify eyepiece diameter and camera compatibility before installation. Clean optical contact surfaces to prevent dust or debris from affecting image quality. For best results, perform camera focus and exposure adjustments while viewing a calibration or sample slide. Handle the adapter and camera carefully to avoid mechanical stress on the microscope head.
