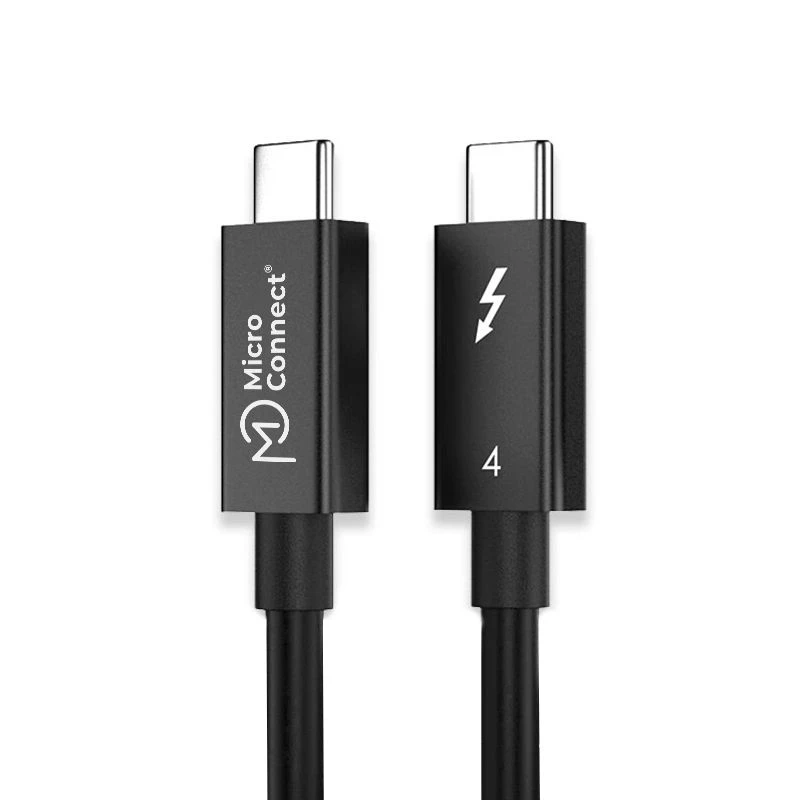

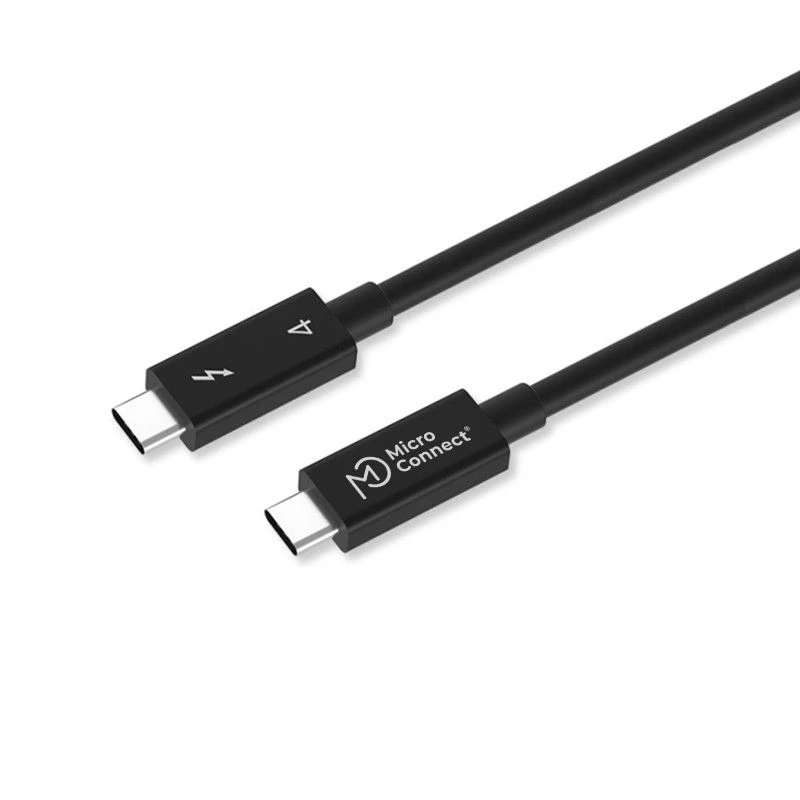

Microconnect TB4010 Thunderbolt cable 1 m 40 Gbit/s Black

The MicroConnect TB4010 is a 1 m Thunderbolt 4 cable that supports data transfer speeds up to 40 Gbit/s and provides up to 100 W power delivery. It features male USB-C connectors on both ends, a lightweight 30 g design and compliance with RoHS standards. The cable uses an Intel Thunderbolt chipset and high-quality construction with coaxial conductors, TEFLON insulation and a flexible TPE jacket to ensure reliable performance and durability.

Advantages

This Thunderbolt cable offers up to 40 Gbit/s throughput when used with compatible Thunderbolt 4 or Thunderbolt 3 ports, supports dual 4K@60 Hz displays or a single 8K@60 Hz output over a Thunderbolt connection, and delivers up to 100 W for rapid charging. It is built with a certified Intel Thunderbolt controller and layered shielding to reduce interference and extend service life. The 1 m length and 30 g weight make it convenient for desktop and mobile setups.

Suitable for

• Connecting Thunderbolt 3/4 docks, eGPUs and PCIe enclosures (e.g., Razer Core)
• High-speed data transfer between compatible laptops and external drives
• Driving dual 4K displays or a single 8K display from a Thunderbolt port
• Charging laptops or devices that accept up to 100 W via USB-C power delivery

Key specifications

• Model: MicroConnect TB4010
• Standard: Thunderbolt 4
• Data transfer speed: up to 40 Gbit/s
• Power delivery: up to 100 W
• Video: dual 4K@60 Hz or single 8K@60 Hz (via Thunderbolt port)
• Connectors: USB-C male – USB-C male
• Cable length: 1 m
• Weight: 0.03 kg
• Colour: Black
• RoHS compliant

How to use

Plug one USB-C male connector into the Thunderbolt port of your host device and the other into the Thunderbolt-enabled peripheral, dock or display. For maximum data and video performance, connect to a Thunderbolt 3 or 4 port; a full 40 Gbit/s speed and multi-display support require Thunderbolt compatibility on both ends. When using video over a USB-C port that is not a Thunderbolt port, ensure the port supports DisplayPort Alternate Mode — in that case the cable typically supports a single 4K display only. Observe correct orientation when inserting the reversible USB-C connectors.

Recommendations

Use the cable with Thunderbolt 3/4 certified devices to achieve advertised speeds and video capabilities; do not expect full Thunderbolt performance from regular USB-C ports without Thunderbolt support. Avoid excessive bending near the connectors and keep the cable away from strong sources of electromagnetic interference to preserve signal integrity.
