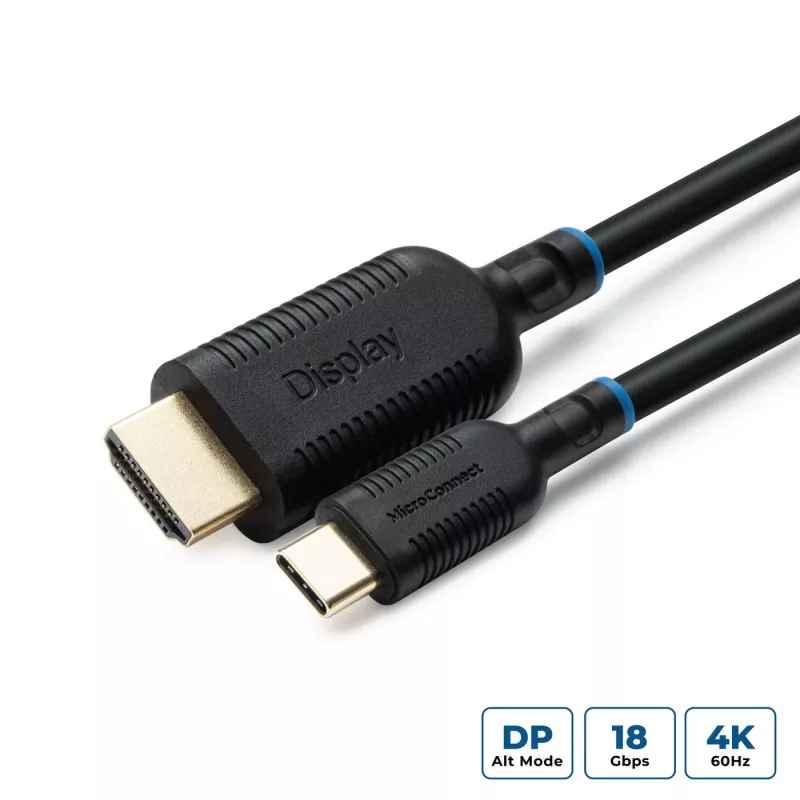

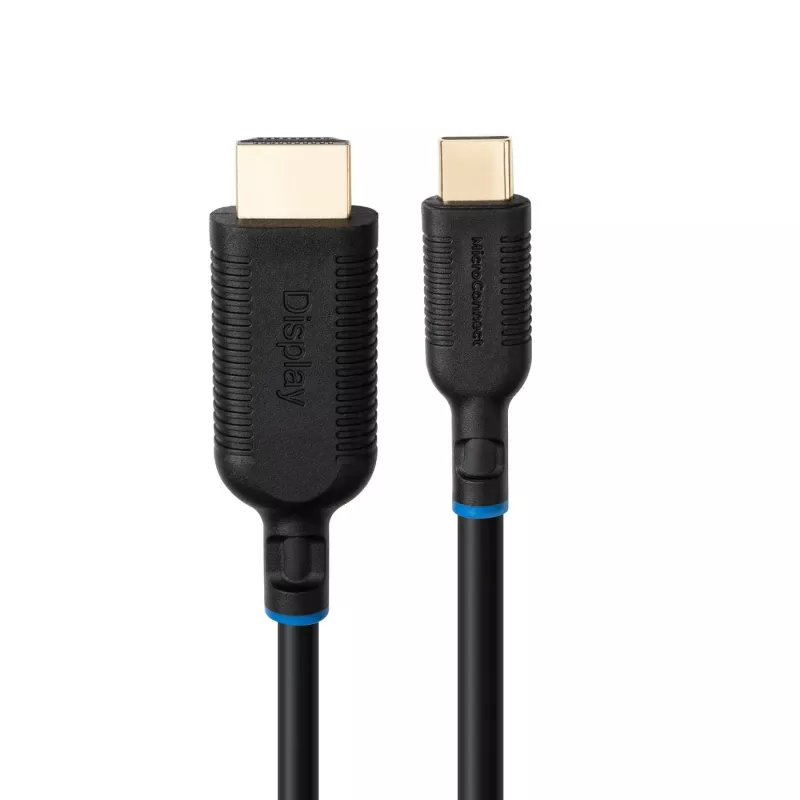

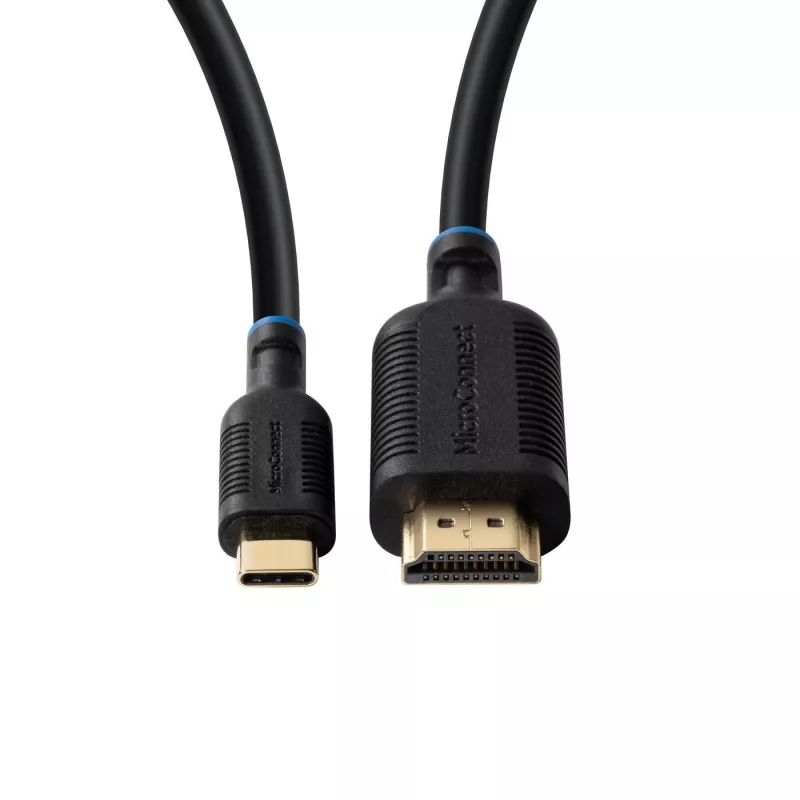

Microconnect MC-USBCHDMI05 video cable adapter 0.5 m HDMI Type A (Standard) Black

The MicroConnect MC-USBCHDMI05 is a 0.5 m USB-C to HDMI Type A cable adapter that connects USB Type-C or Thunderbolt 3 devices (with DP Alt Mode) to HDMI displays. The cable supports HDMI 2.0b features, HDR10 and delivers up to 4K at 60 Hz (3840x2160) with a maximum bandwidth of 18 Gbps, while remaining backward compatible with earlier HDMI versions. With 4:4:4 chroma subsampling and HDR support, it provides accurate color reproduction and improved contrast and brightness for compatible displays.

Advantages

The cable supports 4K@60Hz and HDR10 for sharper, more detailed video and accurate colors via 4:4:4 chroma subsampling. It is compatible with USB-C ports that implement DisplayPort Alternate Mode and Thunderbolt 3, offers a compact 0.5 m length and a 4.8 mm diameter for easy handling, and complies with RoHS standards. Backward compatibility with older HDMI versions ensures it works with a wide range of HDMI displays.

Suitable for

• Connecting laptops or tablets with USB-C (DP Alt Mode) to HDTVs or monitors
• Connecting Thunderbolt 3 devices to HDMI displays
• Streaming 4K media and presentations to external screens
• Use with HDMI 2.0b-capable displays and legacy HDMI equipment

Key specifications

• Connector: USB-C (source) to HDMI Type A (display)
• Length: 0.5 m
• Supported resolution: up to 4K UHD (3840x2160) at 60 Hz
• Bandwidth: up to 18 Gbps
• Chroma subsampling: 4:4:4
• HDR: HDR10 support
• Compliance: RoHS
• Diameter: 4.8 mm
• Weight: 50 g
• Brand / MPN / EAN: MicroConnect / MC-USBCHDMI05 / 5715063039175

How to use

Connect the USB-C end to a source device that supports DisplayPort Alt Mode or Thunderbolt 3, then plug the HDMI Type A end into the HDMI input of a TV or monitor. Select the correct input on the display and set the source device to mirror or extend the screen as needed. For best results, ensure the connected display and source device support 4K@60Hz and HDR10.

Recommendations

Use the cable for short-distance connections (0.5 m) to avoid signal degradation. Confirm your device supports DP Alt Mode or Thunderbolt 3 and enable HDR output in the device settings if necessary. When connecting to older HDMI displays, the cable will negotiate the highest mutually supported resolution and refresh rate.
