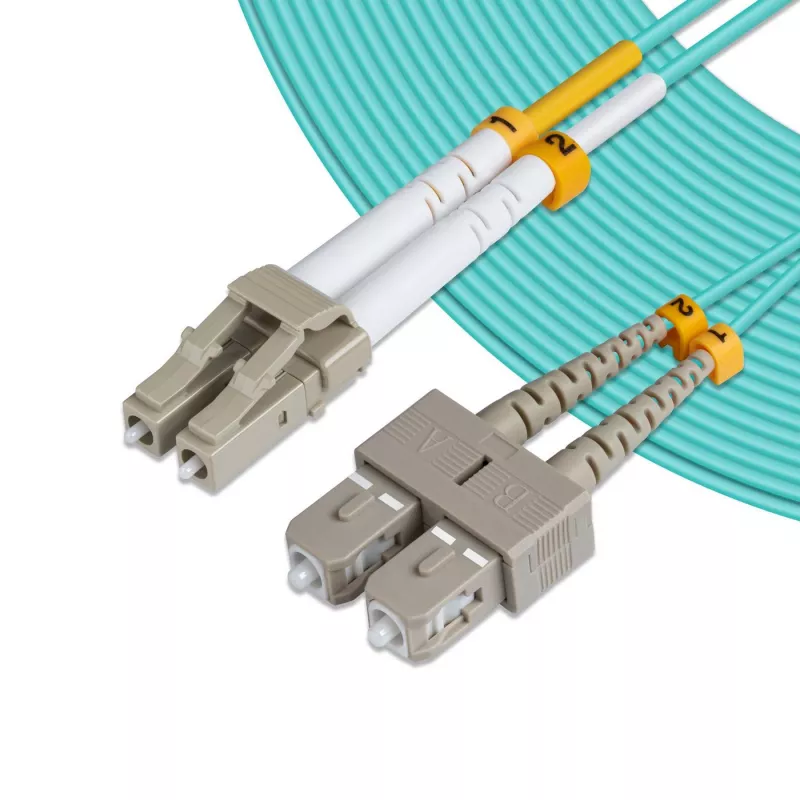

Microconnect FIB422005 InfiniBand/fibre optic cable 5 m LC SC Blue

The Microconnect FIB422005 is a 5 m duplex fibre optic cable with LC and SC connectors, using 50/125 µm OM3 multimode bend‑insensitive fibre. Its OM3 specification and reduced attenuation when bent make it suitable for high-speed links such as 10G SR, 10G LRM and SFP+ transceivers in data centres and high‑performance network environments.

Advantages

OM3 multimode construction provides high bandwidth for short‑reach 10G/40G/100G Ethernet while the bend‑insensitive design reduces signal loss caused by tight bends or twists during installation. The cable is manufactured with LSZH jacket material and meets common industry standards (IEC, EIA/TIA, Telcordia), offering a balance of performance, safety and compatibility.

Suitable for

• 10G Ethernet links (10G SR, 10G LRM)
• SFP+ transceiver connections
• Duplex fibre patching between LC and SC ports
• Data centre and server room short‑reach links

Key specifications

• Length: 5 m
• Fibre type: OM3 multimode, 50/125 µm
• Connectors: LC to SC (duplex)
• Jacket: LSZH
• Colour: Blue
• Weight: 0.04 kg
• Brand / MPN / EAN: MicroConnect / FIB422005 / 7331990077776

How to use

Align and insert the LC and SC connectors into the corresponding ports on networking equipment or transceivers until they click. Use the duplex cable to connect matching LC and SC ports for full‑duplex transmission. Avoid excessive pulling force on the cable and secure the cable path to prevent sharp bends beyond the manufacturer's bend radius recommendations.

Recommendations

For best performance, use this OM3 50/125 µm cable for short‑reach 10G links and ensure connectors and transceiver types (LC/SC, SFP+) are compatible. Install in cable trays or along routing paths that prevent tight kinks and minimize bend radius violations.
