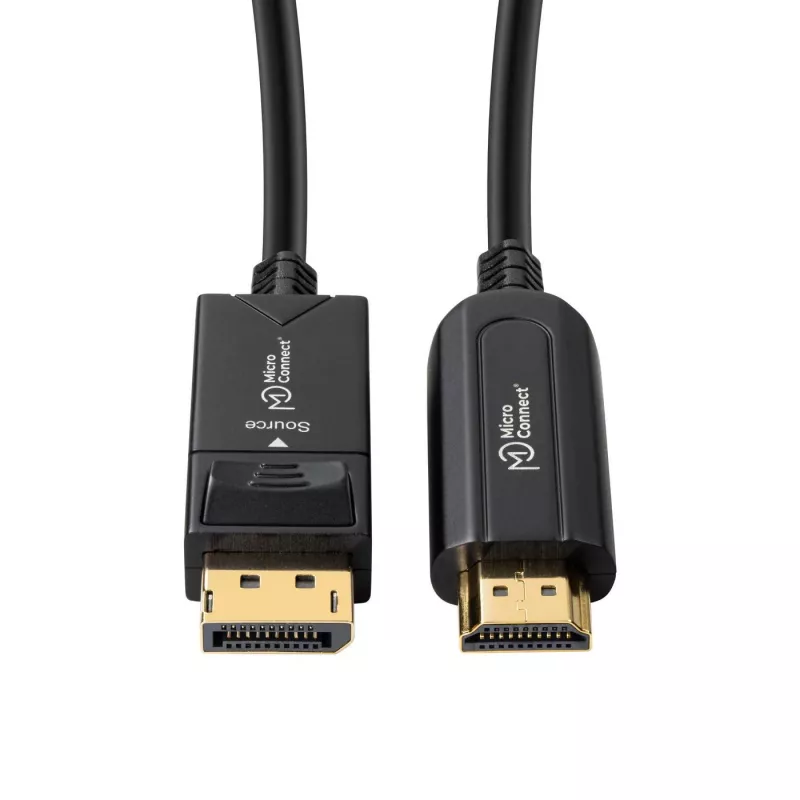

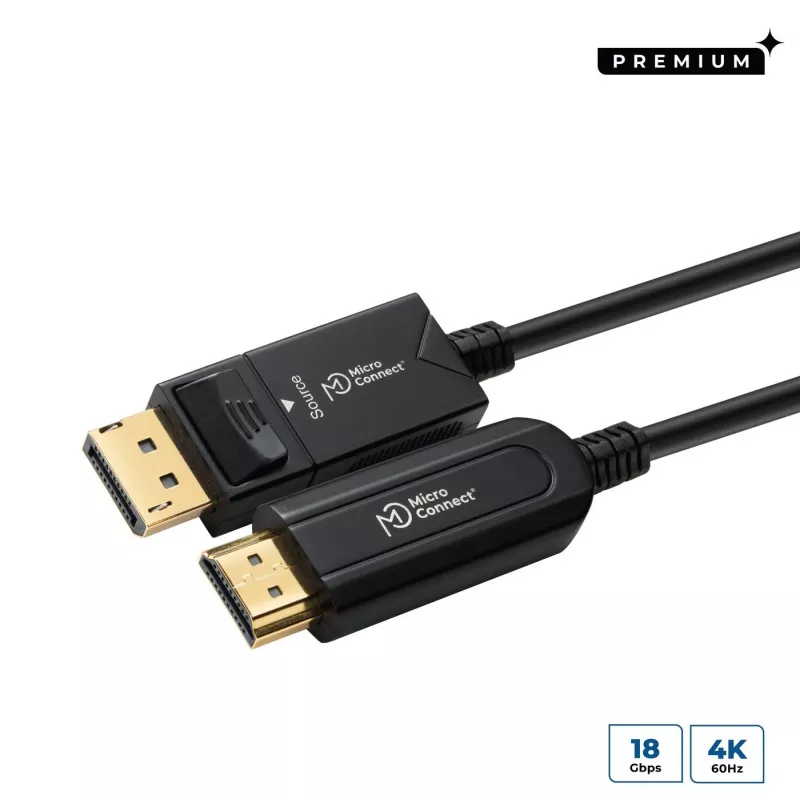

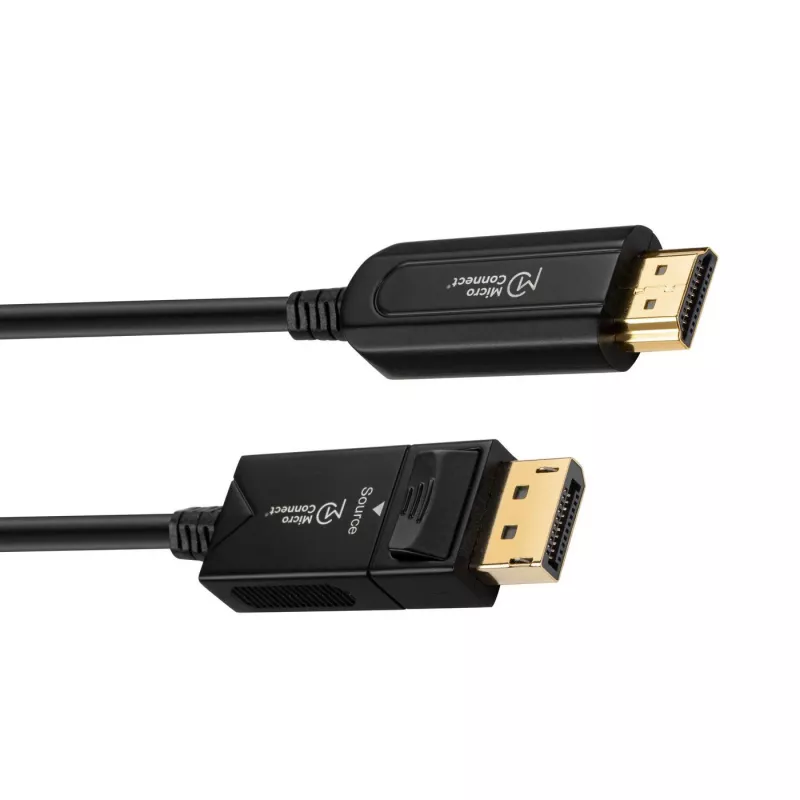

Microconnect DP-HDMI-2000V1.4OP video cable adapter 20 m DisplayPort HDMI Type A (Standard) Black

The Microconnect DP-HDMI-2000V1.4OP is an active optical DisplayPort 1.4 to HDMI 2.0 cable adapter designed for long-distance video transmission. With a 20 m cable length and a combination of fiber optic and copper cores, it maintains signal integrity across extended runs while remaining lightweight and flexible. It features a DisplayPort connector and an HDMI Type A (Standard) connector, and is suitable for installations where space and tight bends are required.

Advantages

This active optical cable transmits high-quality video up to long distances without data loss, combining fiber optic and copper cores for reliable performance. Its ultra-small bend radius and flexible, lightweight design simplify routing and installation in constrained environments. The cable supports DisplayPort 1.4 to HDMI 2.0 conversion, is RoHS compliant, and comes in a compact, black design.

Suitable for

• Connecting DisplayPort sources to HDMI displays over long runs (up to 20 m)
• AV installations with tight cable routing and small bend radius requirements
• Conference rooms, classrooms, and control rooms requiring reliable video over distance

Key specifications

• Model: Microconnect DP-HDMI-2000V1.4OP
• Cable length: 20 m
• Connector 1: DisplayPort
• Connector 2: HDMI Type A (Standard)
• Supported standards: DisplayPort 1.4 to HDMI 2.0 (active optical conversion)
• Weight: 0.544 kg
• Product colour: Black
• RoHS compliant

How to use

Connect the DisplayPort end to the source device and the HDMI Type A end to the display. Ensure both devices are powered on and set to the appropriate input/output. The cable performs active conversion from DisplayPort 1.4 to HDMI 2.0 over its optical and copper hybrid construction; no additional power or drivers are typically required. Route the cable considering its small bend radius to avoid sharp kinks.

Recommendations

For best performance, avoid tight sharp bends beyond the cable's specified bend radius and secure the cable to prevent strain at the connector ends. Verify device compatibility for DisplayPort to HDMI conversion and select the appropriate display input settings.
