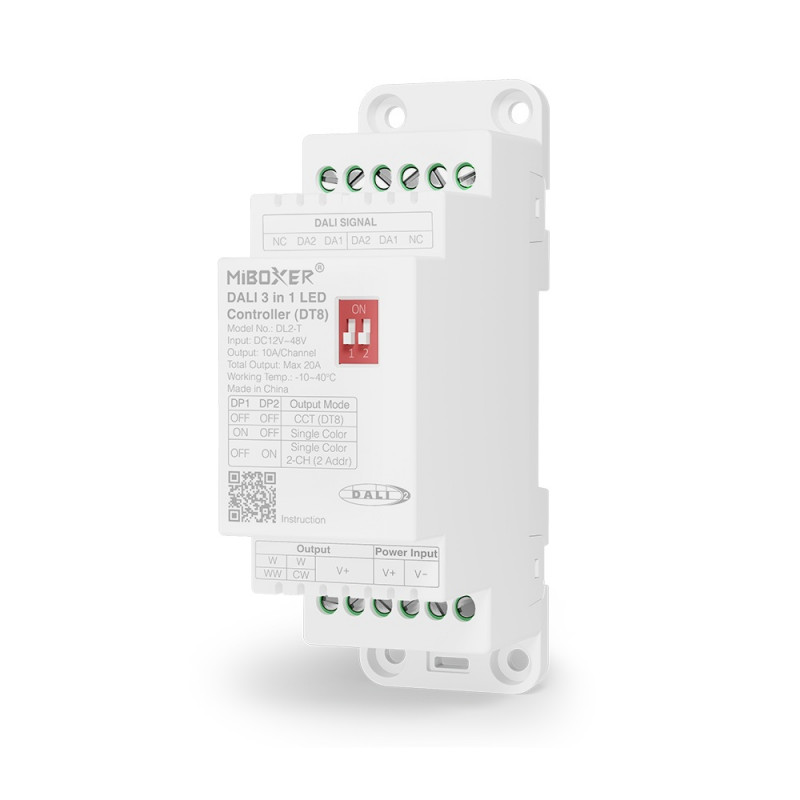

MiBoxer DL2-T DALI-2 DT8 LED controller, 3 modes, DIN rail, 12–48 V DC

MiBoxer DL2-T DALI-2 DT8 LED controller, 3 modes, DIN rail, 12–48 V DC
MiBoxer DL2-T DALI-2 DT8 LED controller, 3 modes, DIN rail, 12–48 V DC
R821
MiBoxer DL2-T is a constant-voltage LED controller with two output channels and three selectable modes: CCT tunable white, single colour and two independently controlled single-colour channels. In the last mode, each channel has its own DALI address. The DIP switches select the required output arran... Read More
Stock 20 Code 3586017 Brand MIBOXER Model DL2-T Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

MiBoxer DL2-T is a constant-voltage LED controller with two output channels and three selectable modes: CCT tunable white, single colour and two independently controlled single-colour channels. In the last mode, each channel has its own DALI address. The DIP switches select the required output arrangement.

The controller supports DALI-2 communication according to IEC62386 and DT8 for colour-temperature control. Its input is 12–48 V DC, with a maximum of 10 A per channel and 20 A in total. Match the supply voltage to the connected LED strips and observe both current limits. The labelled screw terminals separate the DALI signal, power input and LED outputs.

The white enclosure fits a 35 mm DIN rail, including TS-35/7.5 and TS-35/15 profiles. IP20 is intended for dry indoor use at −10 to +40 °C. Reverse-polarity, short-circuit and overcurrent protection with recovery are specified. A suitable DC supply, DALI bus supply, control panel, rail and LED strips are separate installation components.

Specifications
Brand
MiBoxer
Category
LED controller
DC input voltage
12–48 V DC
EAN
4038816257987
International Protection (IP) code
IP20
Model
DL2-T
MPN
DL2-T
Operating temperature (T-T)
−10 to +40 °C
Output current
10 A per channel; 20 A total
Product colour
White
Product type
LED controller
Quantity per pack
1
Supported protocols
DALI-2 / DT8 / IEC62386
