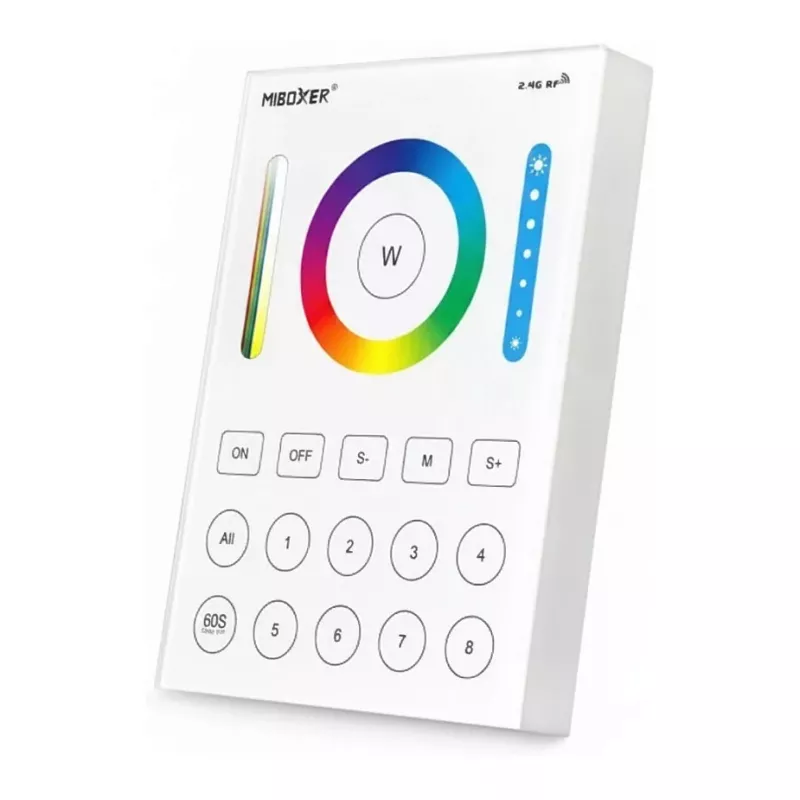

MIBOXER B8 8-Zone RGB+CCT Touch Panel Remote Controller for MiLight/MiBoxer LED Lighting

The MIBOXER B8 is a high-precision capacitive touch panel remote controller designed for RGB+CCT (RGBWW) LED lighting systems. It supports 8 independent control zones, allowing you to manage multiple lights or groups from a single wall-mounted panel. With a sleek tempered glass surface and intuitive touch controls, the B8 offers seamless adjustment of brightness, color temperature, saturation, and dynamic modes. Compatible with MiBoxer and MiLight 2.4GHz series products, this remote provides reliable wireless control up to 30 meters in open air.

Advantages

• 8-zone independent control for flexible lighting management
• High-precision capacitive touch screen for smooth and responsive operation
• Tempered glass panel with a modern, minimalist design
• Wall-mounted installation fits standard 86-type wall boxes
• Wide compatibility with MiBoxer/MiLight 2.4GHz LED products
• Low standby power consumption (20µA) for energy efficiency

Suitable for

• Residential smart lighting systems
• Commercial spaces requiring multi-zone RGB+CCT control
• Retrofit projects using MiBoxer/MiLight 2.4GHz LED drivers and bulbs
• Hotels, restaurants, and showrooms needing dynamic lighting scenes

Key specifications

• Control Type: Touch Panel Remote Controller
• Number of Zones: 8
• Supported LED Type: RGB+CCT (RGBWW)
• Wireless Technology: 2.4GHz RF
• Transmission Distance: Up to 30 meters (open air)
• Power Supply: AC 100-240V
• Output Signal: 2.4GHz RF
• Installation: Wall-mounted (standard 86-type wall box)
• Panel Material: Tempered Glass
• Base Material: PC Plastic
• Control Functions: On/Off, Brightness, Saturation, Color Temperature, RGB Color Selection, Dynamic Modes
• Compatibility: MiBoxer/MiLight 2.4GHz series
• Operating Temperature: -20°C to 60°C
• Frequency: 2400-2483.5MHz
• Standby Power Consumption: 20µA
• Dimming Range: 0-100%
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure your LED lights or controllers are compatible with MiBoxer/MiLight 2.4GHz RF protocol. The B8 is designed for indoor use only and should be installed in a dry location. Pairing instructions are included in the user manual.
